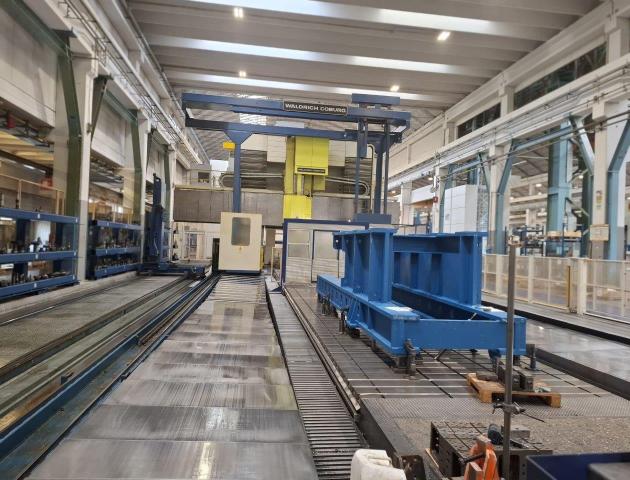

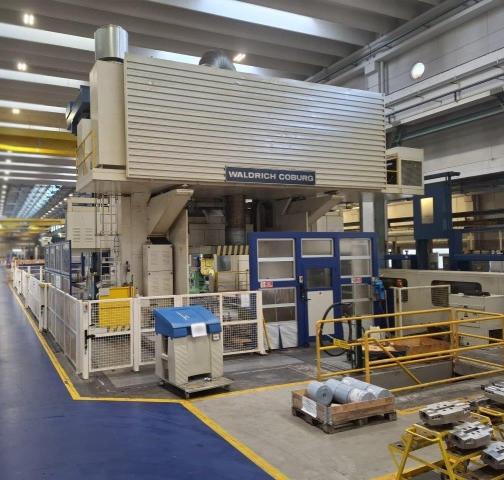

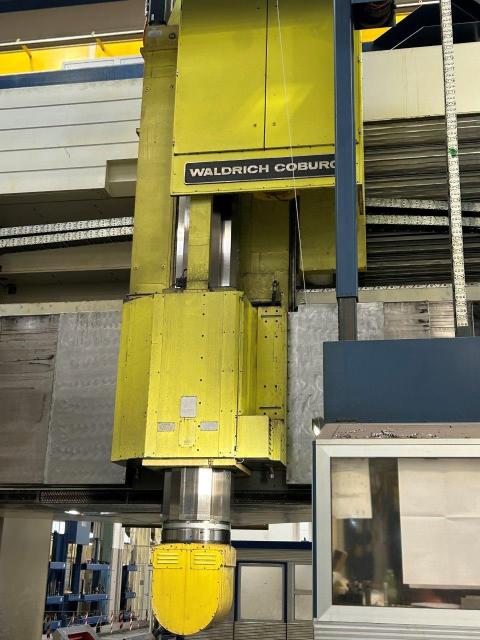

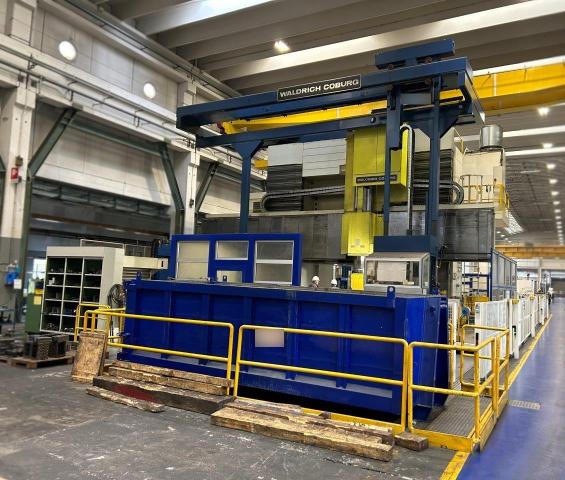

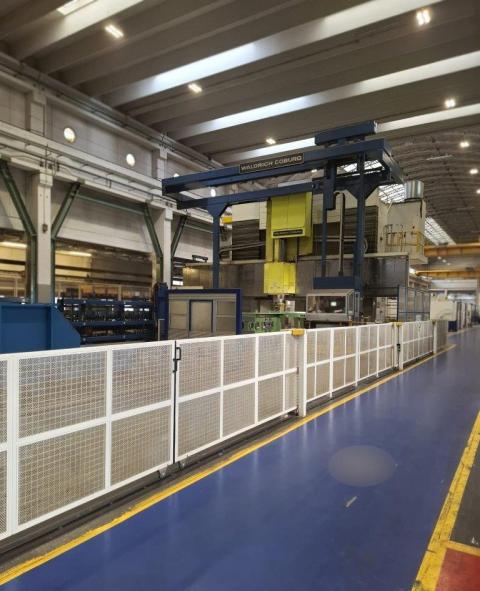

Used CNC Gantry type Milling machine
Waldrich Coburg PowerTec 4500
Year 1999 with Siemens 840C CNC control
X 20000 mm (Gantry longitudinal travel)
Y 7900 mm (Milling ram cross travel)
Z 2500 mm (Milling ram vertical travel)
W 2500 mm /Crossrail vertical travel)
Distance between the columns 4380 mm
Distance spindle to table max. 4000 mm
Spindle rebuilt 2023
Spindle motor power 105 KW
Spindle speeds 2 – 2500 rpm (2 step gearbox)
Torque S1 9000 Nm
Spindle taper ISO 60 / ISO 50
405 station ATC
5 milling heads
Universal milling head automatic indexing 1° / 1°
Proposal Number V(F)-7155
We recommend that the control be retrofitted
