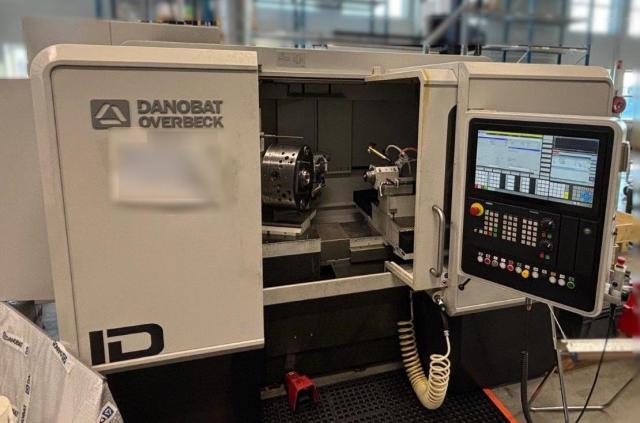

Danobat Overbeck

ID-400

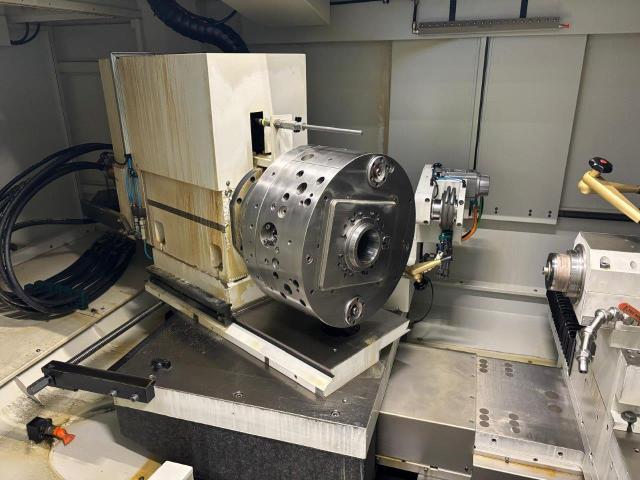

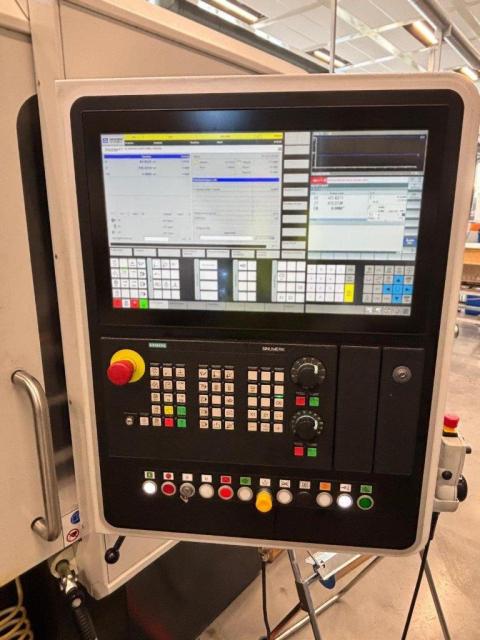

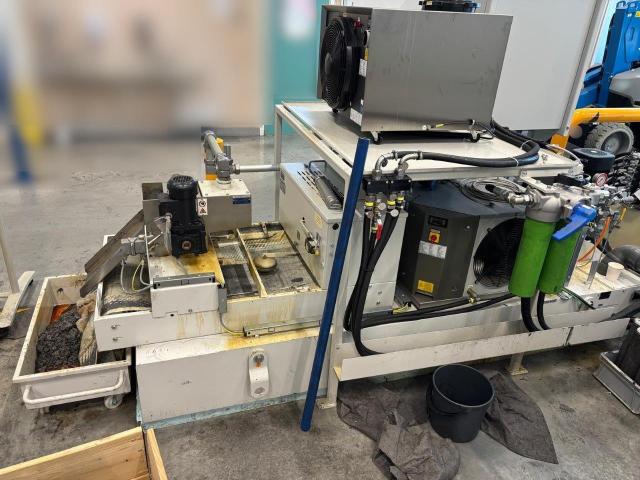

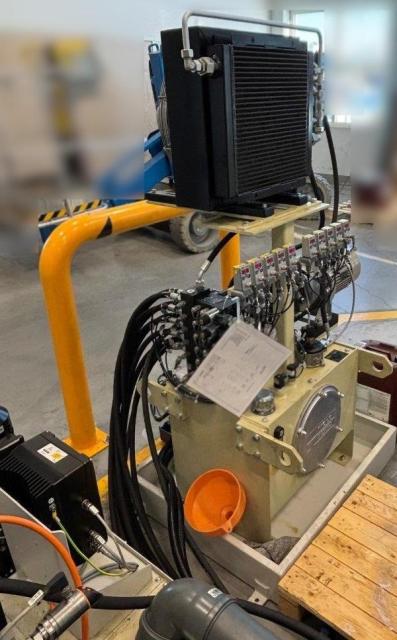

Grinding Deal You Don’t Want to Miss! Used CNC Internal Grinding Machine Danobat Overbeck ID-400 Manufactured new in 2021 Siemens 840D SL CNC control Center height /factory specification) 230 mm Actual measured center height 270 mm Internal grinding diameter 200 mm Grinding length 200 mm Max. work length including chucking system 400 mm X axis stroke 425 mm Resolution min. 0.0001 mm Feed rate 1 ~ 25000 mm/min Linear drive motor Z axis stroke 475 mm Resolution min. 0.0001 mm Feed rate 1 ~ 25000 mm/min Linear drive motor Workpiece weight including chuck max. 500 kg High frequency grinding spindle HVX, 7 KW, 75000 rpm PREPARED for High frequency grinding spindle HVX, 3 KW, 90000 rpm Natural granite machine bed Cooling unit for cooling the linear motor drives, torque motors, spindles, electrical cabinet. Coolant lubricant Full machine protection with sliding door W-Axis for manual adjustment of the work head with a displacement of 200 mm Precision axial swivel chuck 450 (Stiefelmayer) Diamond roller dressing device - for holding a profile dressing wheel OR diamond dressing roll, mounted on both sides, with Siemens Servo drive, process monitoring and control, fully integrated into machine control system. Natural granite machine bed. X,Z Diamond dressing wheel Machine weight 13000 kg Proposal Number V-7154

EXW
