Takamatsu NC Lathe

Takamatsu NC Lathe

Access: 10

STOCK CODE				CONTACT SELLER This product is sold by W&N Co., Ltd.. By PHONE By EMAIL
MACHINE ID	19659
MANUFACTURER	TAKAMATSU MACHINERY
MODEL	X-10i
YEAR	2003
PRICE

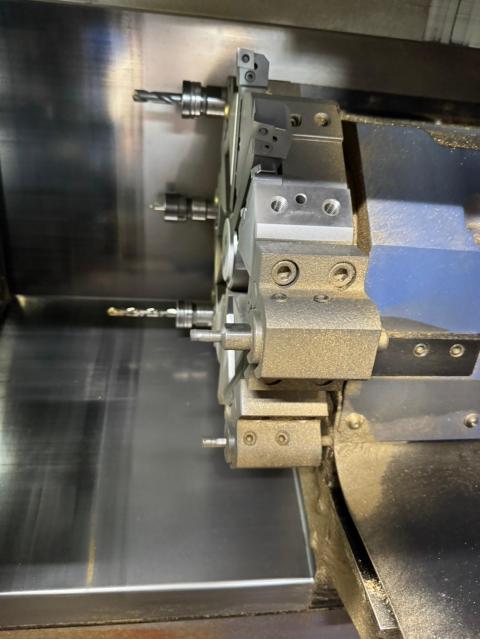

SPECIFICATION	TAKAMATSU NC Lathe X-10i (3units available) --- Capacity: Recommended machining diameter: φ60mm Recommended machining length: 50mm Chuck size: 6inc. Maximum swing: 320mm Maximum bar material diameter: φ26mm φ35mm φ42mm Maximum machining diameter: φ180mm Maximum machining length: 190mm --- Spindle: Spindle nose configuration: JIS A₂-5 Spindle bearing inner diameter: φ75mm Spindle through-hole diameter: φ46mm Maximum spindle speed: 3,500 min⁻¹ --- Tool turret: Configuration: 8-station --- Motor: Spindle Motor: AC5.5/3.7 kW Feed motor: X-axis AC1.0 kW, Z-axis AC1.6 kW Coolant motor: AC0.25 kW Hydraulic motor: AC0.75 kW
CONDITION	Available from January
SIZE	L x W x H: 1,370mm x 1,360mm x 1,720mm
WEIGHT	2,200 kg
LOCATION	Niigata
LOCATION DETAIL	Niigata Ward
SELLER COMPANY	W&N Co., Ltd.

ADDRESS	1-29-37 Nishihonjoji , Niigata, Japan, 955-0845
CEO NAME		CONTACT PERSON	info
TEL1	0256-35-0527	TEL2
CELLPHONE		FAX	0256-35-6314
BUSINESS HOURS	8.20-17.20	HOLIDAY
COMPANY DESCRIPTION
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Presses,Resin / Rubber Processing,Robots,Sheet Metal,Tooling / Accessories
SITE URL	https://worldniigata.co.jp/	COMPANY TYPE	Machine & Equip. Trader,Repair / Overhaul
