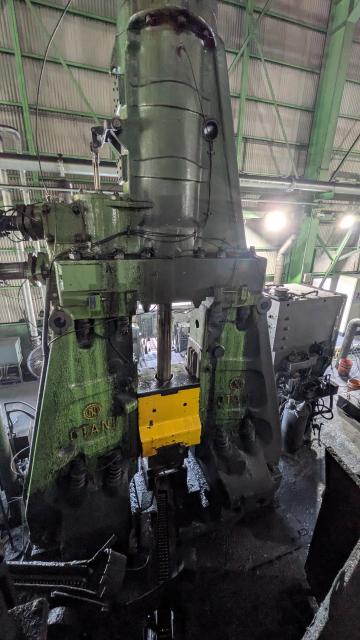

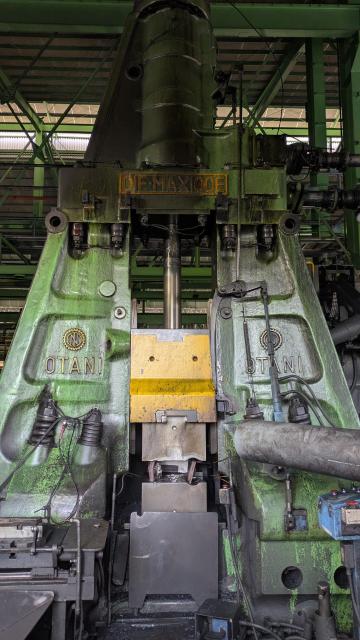

SPECIFICATION | OTANI DIE-MAX 100E
---
SPECIFICATIONS:
Capacity 2 ton
Standard Lower Die Weight 2,690 kg
Standard Upper Die Weight 600 kg
Minimum Safe Die Height 350 mm
Maximum Stroke 1,200 mm
Guide Clearance 630 mm
Cylinder Bore Diameter 430 mm
Piston Rod Diameter 160 mm
Ram Bottom Size 630 (W) × 650 (L) mm
Sow Block Top Surface Size 700 (W) × 750 (L) mm
Impact Energy 9,900 kg·m
Air Inlet Connection 125A (5B)
Air Exhaust Connection 125A (5B)
Height from Floor Level (F.L.) Approx. 5,435 mm
Overall Machine Height 6,445 mm
Height to Remove Piston Rod (from F.L.) 7,850 mm
Required Air Compressor Capacity over 150 kW
Maximum Operating Pressure 0.69 MPa (7 kg/cm²)
---
CURRENT CONDITIONS:
The machine is being offered for sale due to a reduction in production of the applicable product.
The frame and cylinder have been replaced and repaired.

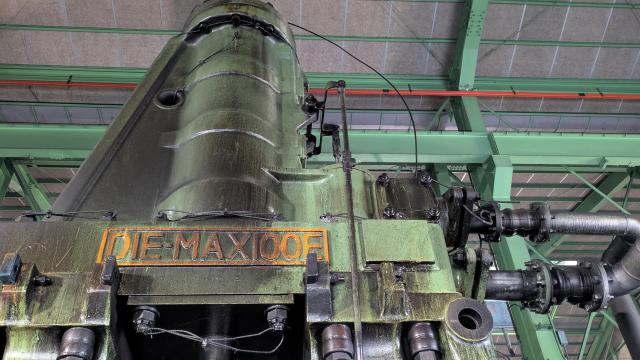

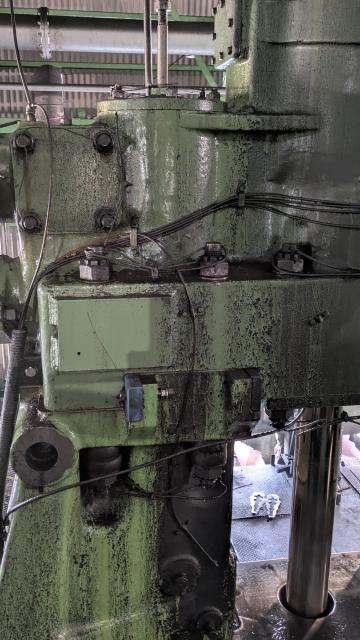

Reinforcement repairs using steel backing plates have been carried out on the cracked areas on both the front and rear sides of the cylinder.
The anvil knockout mechanism has currently been filled in (disabled).
There is a possibility that cracks exist inside the knockout section.
|
|---|
