SPECIFICATION | ◆ Control Unit: F-32i-B
◆ Table Working Area (mm): 3000 * 1120
◆ Table Load Capacity (kg): 4000
◆ Table T-slots (Width, Qty, Pitch) (mm): 18H7 * 11; Pitch: 100
◆ X-axis Travel (mm): 3200
◆ Y-axis Travel (mm): 1500
◆ Z-axis Travel (mm): 850
◆ Portal Width (mm): 1300
◆ Distance from Spindle Face to Table Top (mm): Min: 170 / Max: 1020
◆ Spindle Speed (min⁻¹): 3000
◆ Spindle Speed Change: Automatic, stepless (20-step manual dial setting; override 50–120%)
◆ Spindle Bearing Diameter (mm): 100

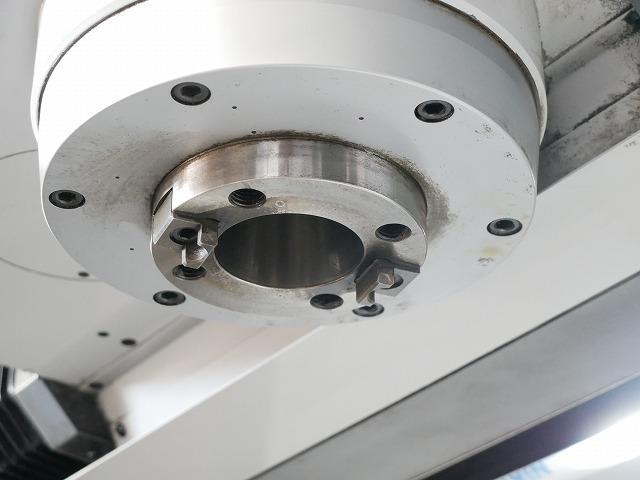

◆ Spindle Taper: 7/24 Taper No. 50
◆ Tool Retention Bolt Type: P50T-II

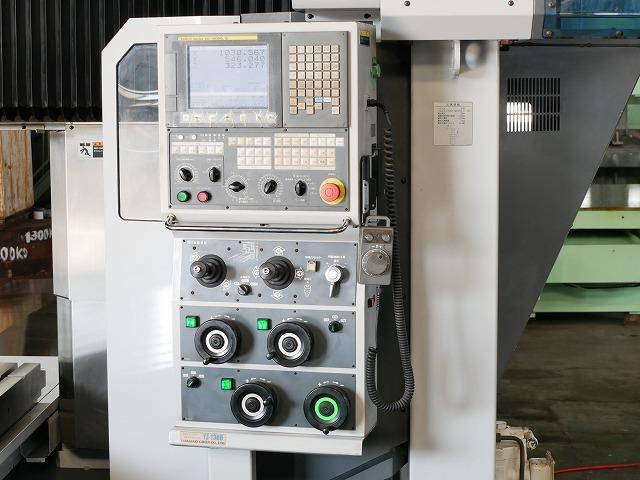

◆ Operation Panel: General-purpose / Guidance / NC
◆ Number of Controlled Axes: 3
◆ Tool Selection Method: Random
◆ Tool Shank Type: BT-50
◆ Pull Stud Type: P50T-II (MAS-II)

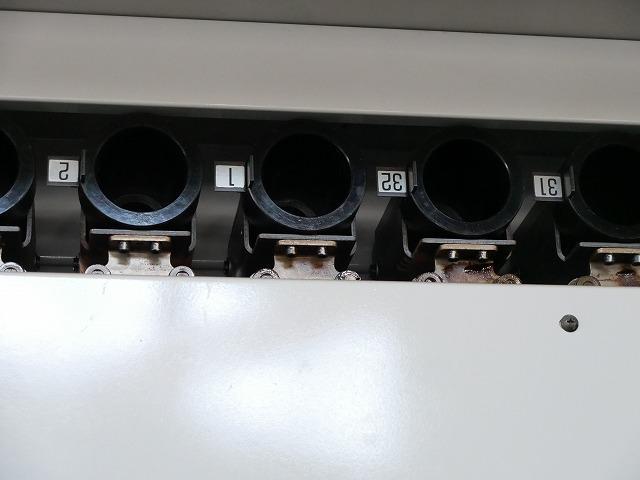

◆ Number of Tools: 32
◆ Max. Tool Diameter (with adjacent tools) (mm): 125
◆ Max. Tool Diameter (without adjacent tools) (mm): 230
◆ Max. Tool Length (mm): 350
◆ Max. Tool Weight (kg): 15
◆ Machine Dimensions (mm): 7800 * 4100 * 2800
◆ Machine Weight (kg): Approx. 1900
◆ Coolant System (Partition Type): 200L
◆ Added Guidance Function: Contouring
◆ Added Guidance Function: Plane Switching / Chamfering
◆ Added Guidance Function: Helical Tapping
✤ In the event of a discrepancy between the specifications and the actual machine, the actual machine takes precedence. |
|---|
