TRUMPF

TruMatic 7000

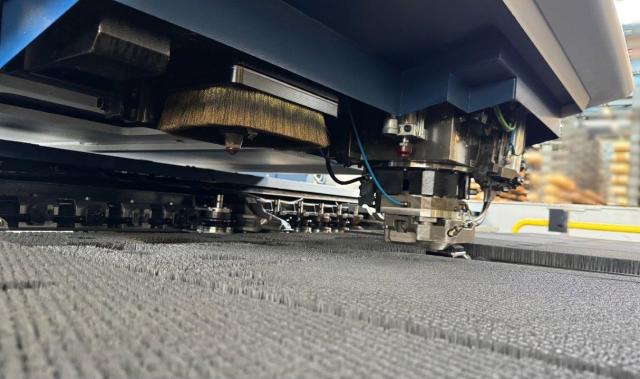

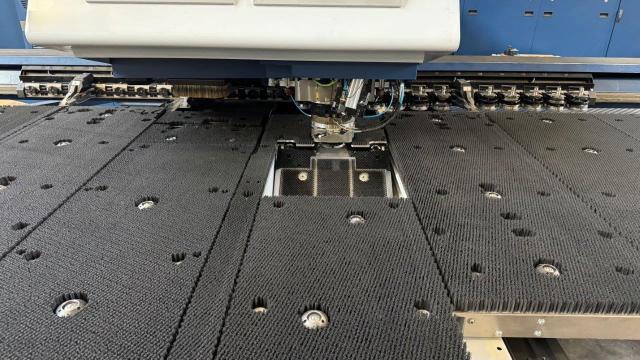

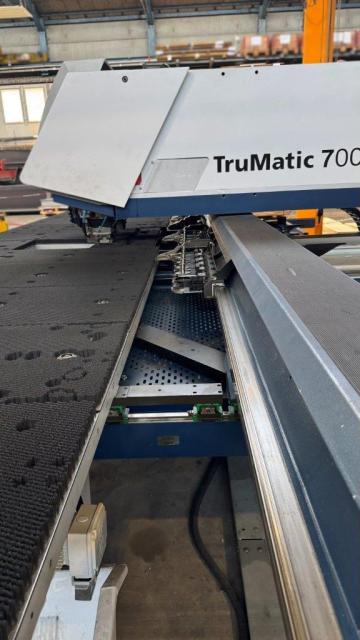

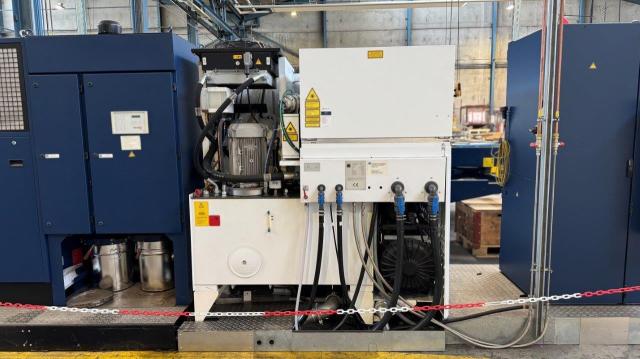

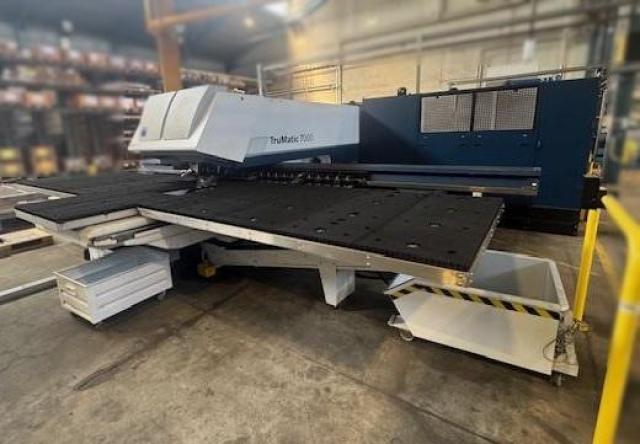

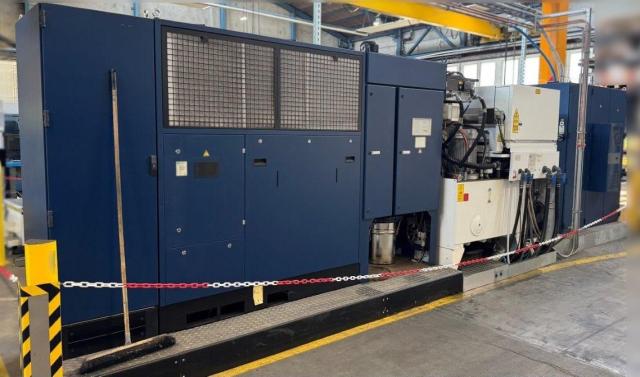

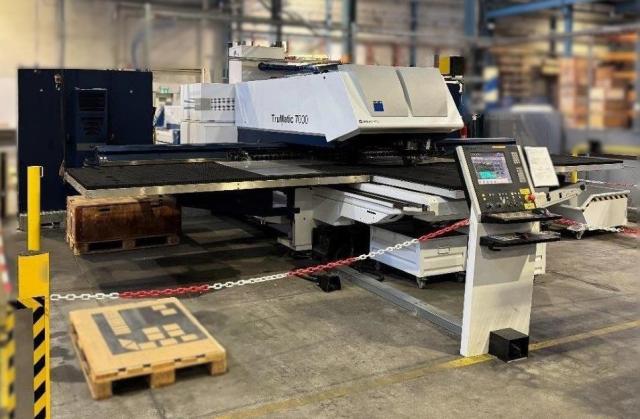

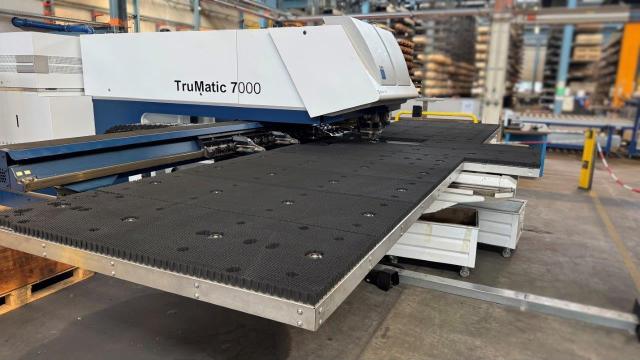

Punch Laser Machine TRUMPF TruMatic 7000 Year 2010 Rexroth IndraMotion MTX Laser Type: TruFlow 4000 Laser Power: 4000 W Working range:: Punching mode without repositioning: X 3050 mm Punching mode: Y 1550 mm Laser operation: X 3050 mm Laser operation: Y 1550 mm Combined operation: X 2500 mm Combined operation: Y 1550 mm Sheet thickness: 8 mm Workpiece weight: max. 280 kg Punching force: 220 kN X Speed: max. 100 m/min. Y Speed: max. 60 m/min. Speed simultaneous: max. 116 m/min. Maximum stroke rate:: Punching (E = 1 mm): max. 1200 1/min. Marking: 3000 1/min. Tools:: MultiTool tool changing time: 0.3 sec Number of tools/clamps: 21 /4 pieces Part removal:: Part size, part removal flap, punching: max. 500 x 500 mm Part size, part removal flap, laser: max. 500 x 500 mm Machine weight: approx. 24100 kg Transport width: approx. 2450 mm Pneum. Connection : 25 Nm3/h Electr. Connection : 87 kVA Machine dimension: LxWxH 10190 x 8898 x 2328 mm Equipped with : Machine - Sturdy, easily accessible C-frame - Coordinate guidance for high-precision machining - Linear magazine with 21 tool positions and 4 clamping claws - Drives with maintenance-free three-phase motors - Follow-up device with programmable hold-down device - Footswitch mitt closing - Ball tables - Automatic switch-off Laserstation - Laser TruFlow - High-frequency excitation - Refrigeration unit - TASC 3 laser control - Closed beam guidance - Spray lance ventilation with compressed air - Progr. Cutting Gas Pressure - Laser cutting head with 170 mm focal length - Universal cutting head quick-change device UTI with Bus connection - LensLine - FocusLine - ControlLine - NitroLine - SprintLine - ContourLine - FlyLine - PlasmaLine - High-speed cutting - Additional Xp and Yp axes - Ejector cylinder laser parts - Quick flap for laser parts 500 x 500 mm - Liftable laser cutting support - Slag cone detection - Logbook function laser Punching station - Electro-hydraulic punching head - Rotatable mono tool holder - Tool length compensation - Programmable hold-down device with adjustable hold-down force - Stroke counter punch - Spray lubrication punch - Punched slug extraction - Bulge detection - Flap for stamped parts 500 x 500mm - Monitoring of fill level in the punching console Control - Open control system based on Bosch Rexroth IntraMotion MTX - Control panel with 15" TFT touchscreen - Program management and 80 GB storage space - Diagnostic function with laser logbook - Integrated technology data - Teleservice Data transfer - Network connection RJ45 and USB interface Security - CE marking - Multi-beam light barriers - Monitoring system for gas pressure, temperature, cooling water, etc. - Quick shutdown hydraulics - Protection against scattered radiation - Compact dedusting system Special equipment - TruFlow 4000 - Vibration-damped installation - Thread forming function - MultiTool function - Roll technology function - Chip conveyor with tipping container - Active die - Blow-out device for small parts - Brush tables - Signing, fast beading function - Resetting cylinder Condition: Very good 2023 Workshop overhaul Time laser ready for operation (10.02.26) 63760 hrs Time laser beam on (10.02.26) 12623 hrs Proposal Number V-7199

EXW
