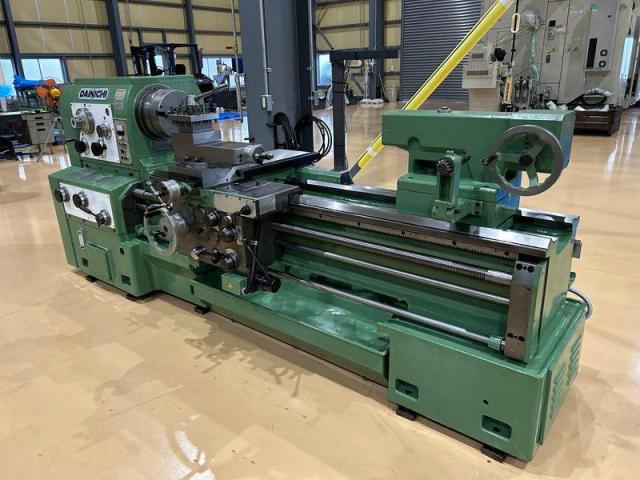

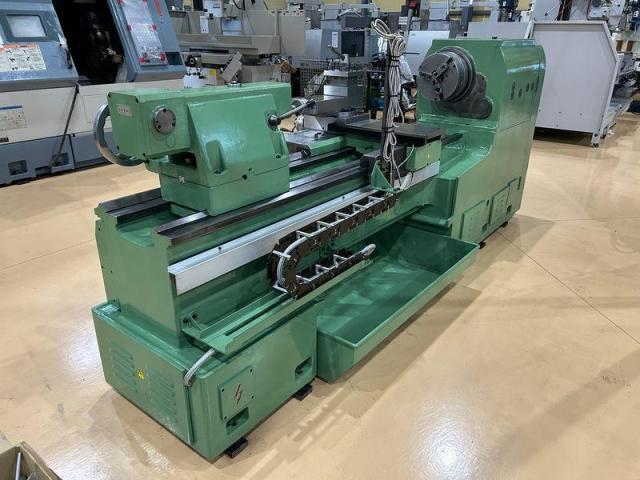

SPECIFICATION | Renewal machine
Swing over bed: φ630 mm
Swing over cross slide: φ400 mm
Bed width: 425 mm
Spindle nose type: JIS A1‑11
Spindle bore diameter: φ84 mm
Spindle speed: 18–1,600 rpm (14 steps)

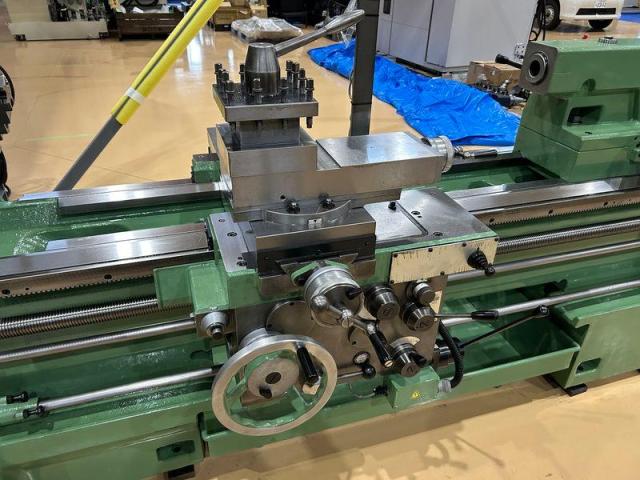

Cross slide travel: 380 mm
Top slide travel: 200 mm
Center size: Morse Taper No.5

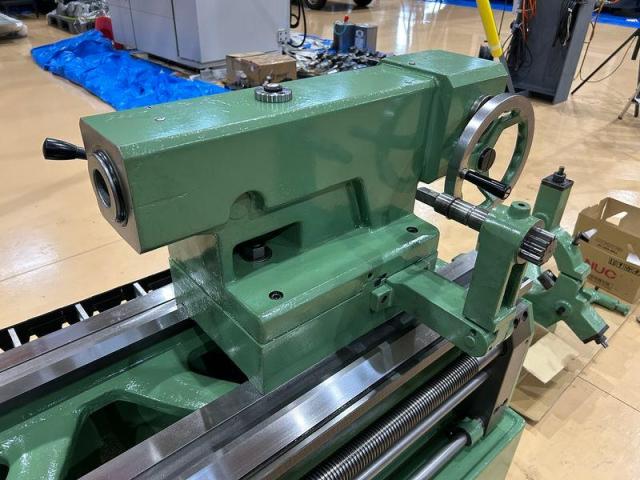

Tailstock quill travel: 200 mm (2‑step switching)
Maximum distance between centers: 1,500 mm
Leadscrew: Metric
Required floor space: 3,250 × 1,050 mm
Machine weight: 2,800 kg
Accessories / Equipment

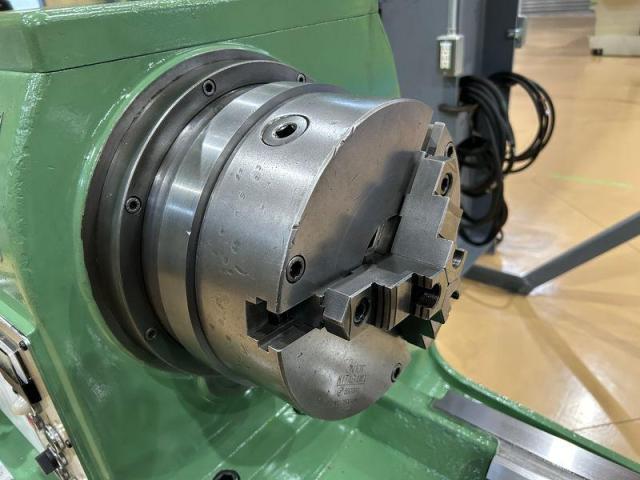

3‑jaw chuck, φ273 mm
Z‑axis presetting device
Fixed steady rest, φ200 mm
Travelling steady rest
Chip tray
No cutting‑oil unit
|
|---|
