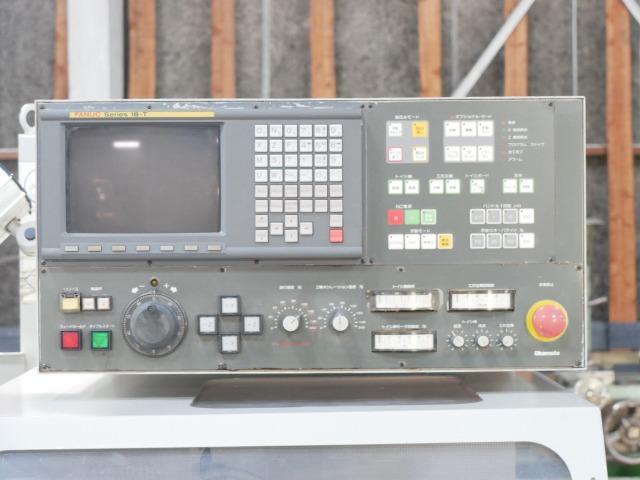

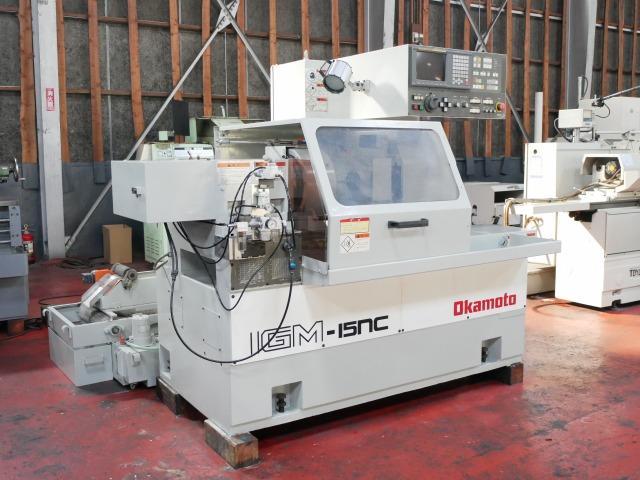

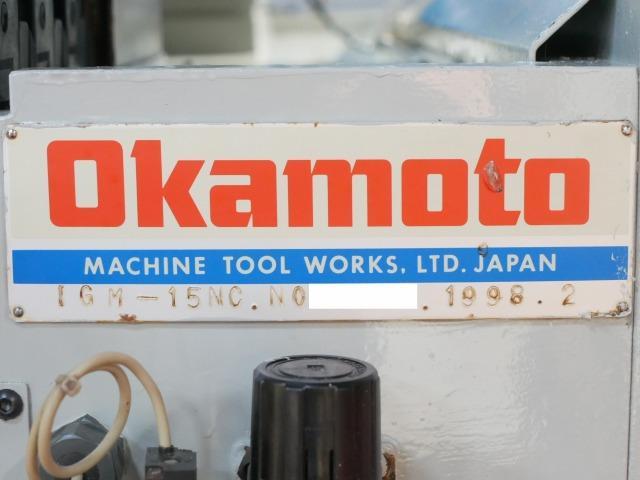

SPECIFICATION | ◆Control device: FANUC 18i-TA

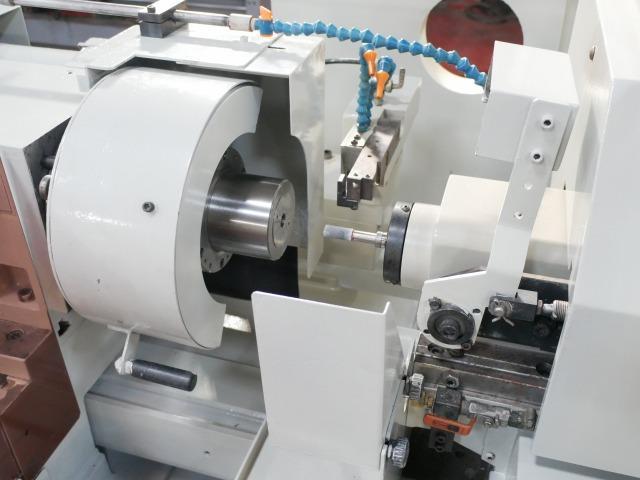

◆Grinding hole diameter (mm): Φ6～150
◆Grinding stroke (mm): 125
◆Swing within chuck cover (mm): Φ260
◆Swing on table (mm): Φ600
◆Maximum travel of grinding wheel spindle feed (X-axis) (mm): 170
◆Grinding wheel spindle feed (X-axis) grinding feed rate (mm/min): 0.001～10000
◆Grinding wheel spindle feed (X-axis) rapid traverse speed (mm/ min): 10000
◆Table left/right feed (Z axis) maximum travel distance (mm): 500
◆Table left/right feed (Z axis) grinding feed rate (mm/min): 0.001 to 10000
◆Table left/right feed (Z axis) rapid traverse speed (mm/min): 10000
◆Minimum setting unit (X axis) (mm): Φ0.0001
◆Minimum setting unit (Z axis) (mm): 0.0001
◆Working spindle rotation speed (min-1): 100 to 850
◆Work Spindle swivel angle (deg.): -5 to 15
◆Grinding wheel rotation speed (standard attachment) (min-1): 20000

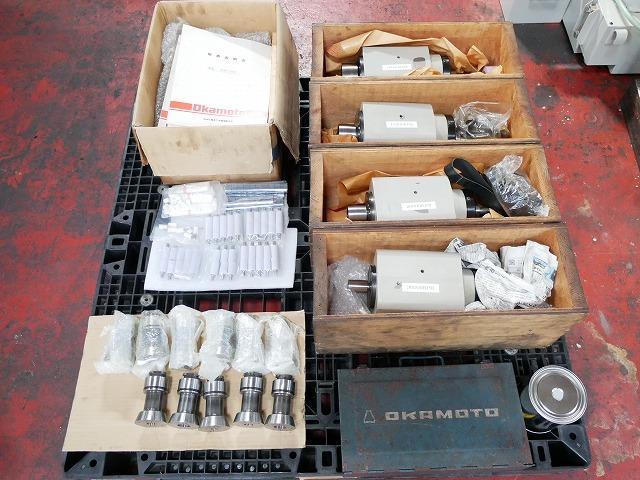

◆Grinding wheel rotation speed (special attachment) (min-1): 10000 to 50000
◆Motor (for spindle) (kW/P): 1.5/4 (with inverter)
◆Motor (for grinding wheel spindle) (kW/P): 2.2/2
◆Motor (for X-axis) (W): 750 (AC servo motor)
◆Motor (for Z-axis) (W): 900 (AC servo motor) (Bomotor)
◆Distance from frame bottom to chuck center (mm): 1000
◆NC device (number of control axes): Grinding wheel axis feed X-axis, table left/right feed Z-axis, simultaneous 2-axis control
◆Occupied volume (width * depth * height) (mm): 2535 * 1990 * 1640
◆Body weight (kg): 2300

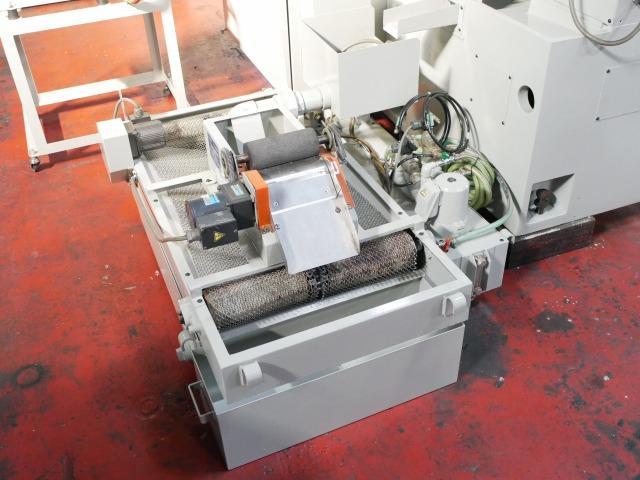

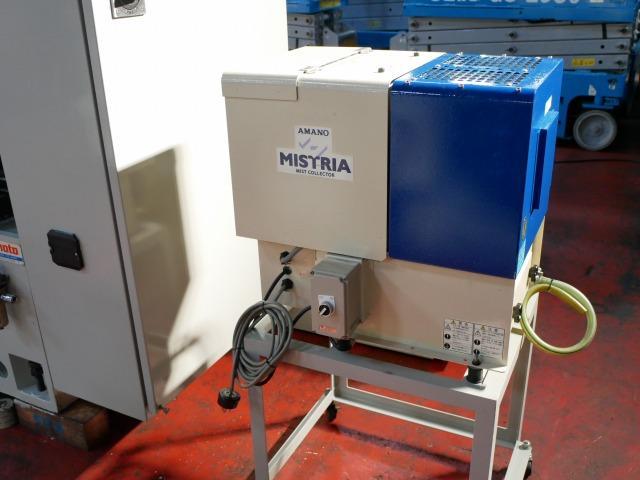

◆Required power (including optional water supply device) (kVA): 8
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
