KLASSEN MACHINES

SDM 15-5

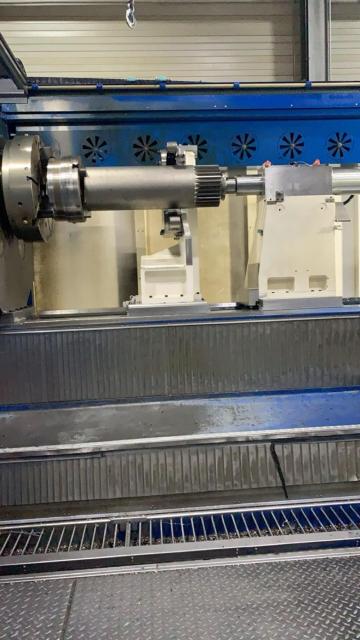

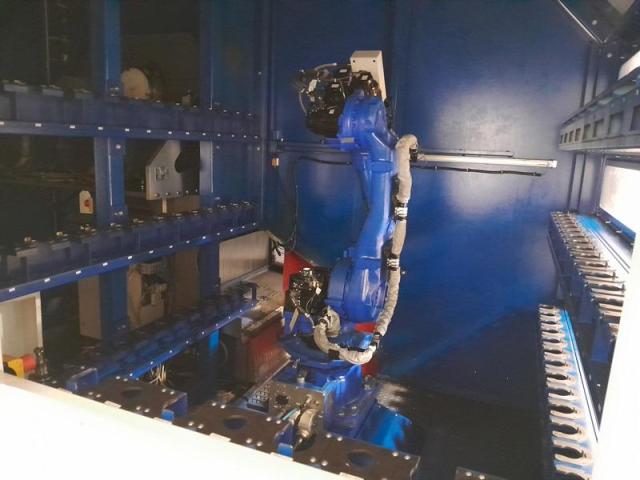

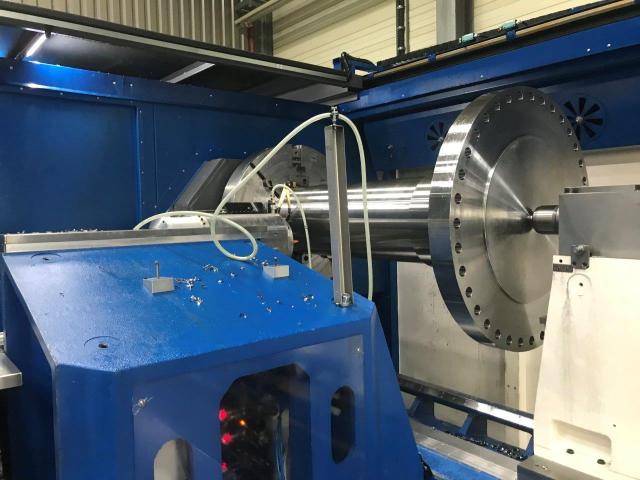

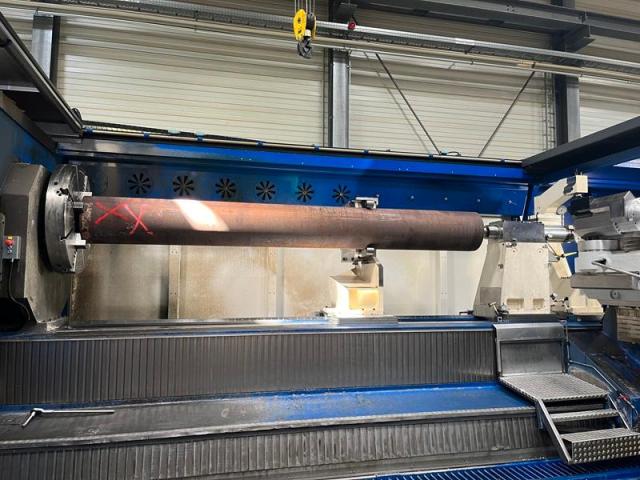

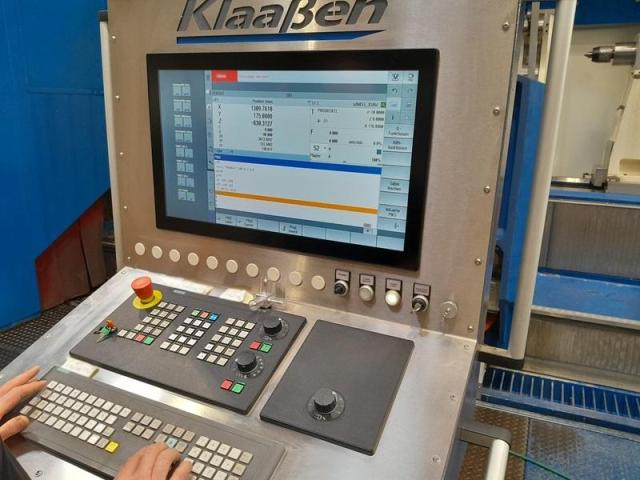

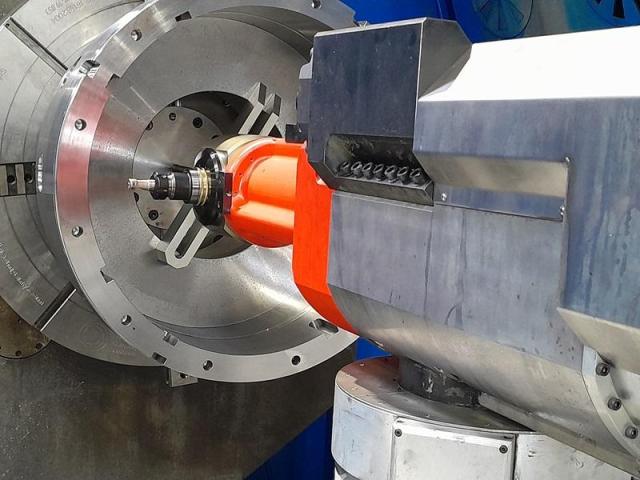

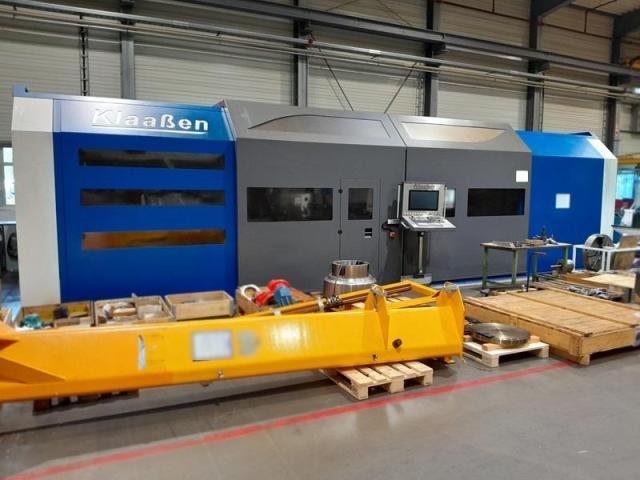

5-Axis CNC Turn Mill Lathe Klaaßen (Klaassen) SDM 15-5 Year 2019 Siemens 840D SL + Shop Turn 4 way bed Swing over cross slides and max. workpiece diameter 1500 mm Turning length 4500 mm Axis travels: X 1000 mm Y 350 mm Z 5000 mm Spindle main drive 62 KW (2 x 31 KW) Spindle speeds max. 450 rpm 2 gear steps Torque max. 37200 Nm 4 jaw faceplate diameter 1000 mm C-Axis 0.001° Turning tools CAPTO C6 Milling tools BT 50 Milling spindle power 37 KW Milling spindle speeds 4000 rpm Milling spindle torque max. 330 Nm 90 station ATC robot Boring bar holder for bars Ø 100 x 1500 mm Grinding unit for external and conical grinding. Grinding wheel Ø 400 mm. 10 KW Milling heads with positioning B-Axis. External & Internal milling. Tailstock and 160 mm quill are NC controlled Hydraulic steady 125 - 460 mm C Steady 400 - 900 mm Full guarding with automatic doors Suction unit Chip conveyor Coolant unit and coolant through the tools Direct measuring systems in all axes X,Y,Z,C,B Inspect under power Proposal Number L-4917

EXW
