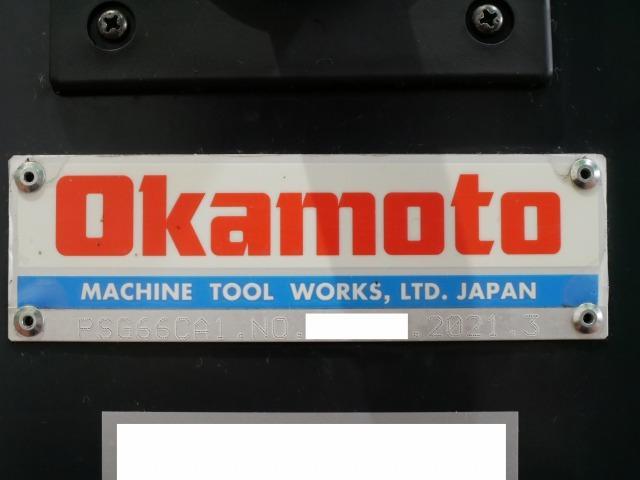

OKAMOTO MACHINE TOOL WORKS

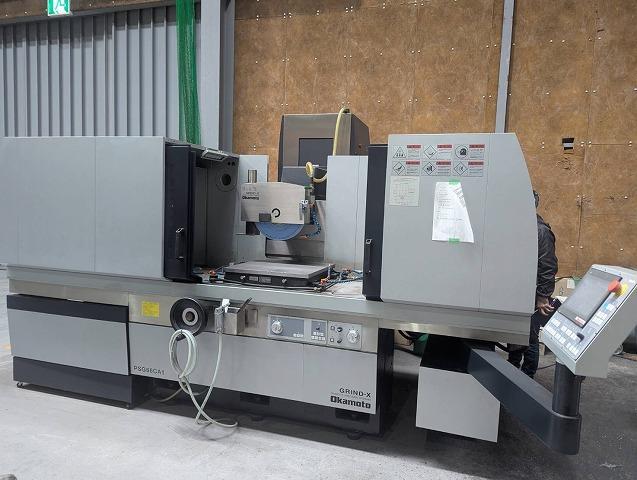

PSG66CA1

◆Table work surface size (mm): 605 * 600 ◆Table travel distance (mm): 800 * 652 ◆Distance from table top to grinding wheel bottom (standard grinding wheel) (mm): -2.5 to 497.5 ◆Standard chuck dimensions (mm): 600 * 600 * 100 ◆Maximum table load capacity (including accessories) (kg): 1500 ◆Table left/right (X-axis) ◆Left/right feed speed (average) (m/min): 3 to 25 ◆Column Forward and backward feed (Z-axis) ◆Manual forward and backward feed (feed amount per rotation of hand handle) (mm): 0.1/1.0/5.0 ◆Manual forward and backward feed (feed amount per division of hand handle) (mm): 0.001/0.01/0.05 ◆Automatic forward and backward feed (intermittent feed) (mm): 0.5 to 20 ◆Automatic forward and backward feed (continuous feed speed) (mm/min): 0.1 to 2000 ◆Grinding wheel head up and down feed (Y-axis) ◆Manual cutting depth feed (feed amount per rotation of hand handle) ) (mm): 0.01/0.1/1.0 ◆Manual cutting feed (feed amount per hand handle division) (mm): 0.0001/0.001/0.01 ◆Automatic cutting feed amount (rough grinding) (mm): 0.0001～0.03 ◆Automatic cutting feed amount (fine grinding) (mm): 0.0001～0.01 ◆Number of spark-outs (time): 0～10 ◆Up/down speed feed rate (mm/min): 0～1000 ◆Grinding wheel ◆Outer diameter * Width * Inner Diameter (mm): Φ400 * 50 * Φ127 ◆Rotation Speed ​​(with stepless speed control for grinding wheel shaft) (min-1): 200-2500 ◆Motor ◆Grinding Wheel Shaft (kW): 7.5 ◆Hydraulic Pump (kW): 3.7 ◆Up/Down Feed (kW): 1.5 ◆Forward/Backward Feed (kW): 0.75 ◆Required Power (kVA): 20 ◆Net Weight (kg): 6300 ✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.

6.3
