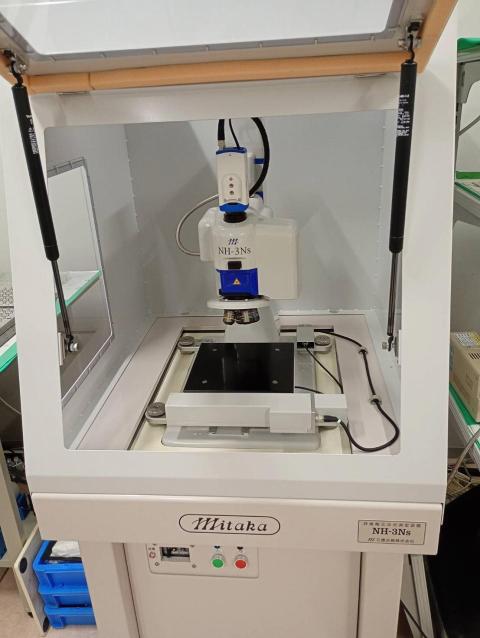

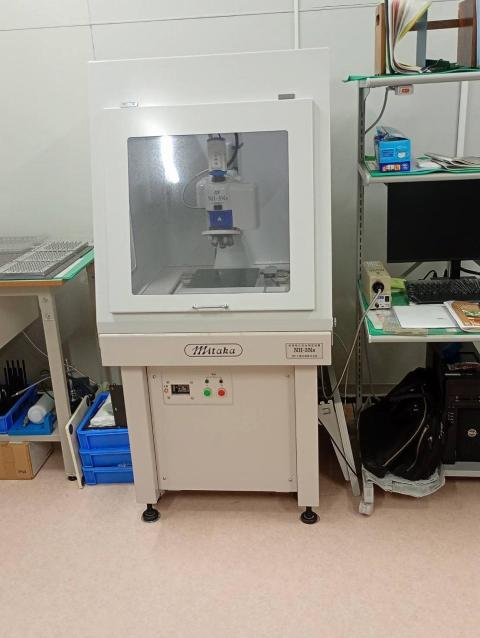

Non-contact Coordinate Measuring Machine

Non-contact Coordinate Measuring Machine

Access: 5

STOCK CODE	21103013			CONTACT SELLER This product is sold by Shinmeiwa Kiko Co.,Ltd. By PHONE By EMAIL
MACHINE ID	18501
MANUFACTURER	MITAKA KOHKI

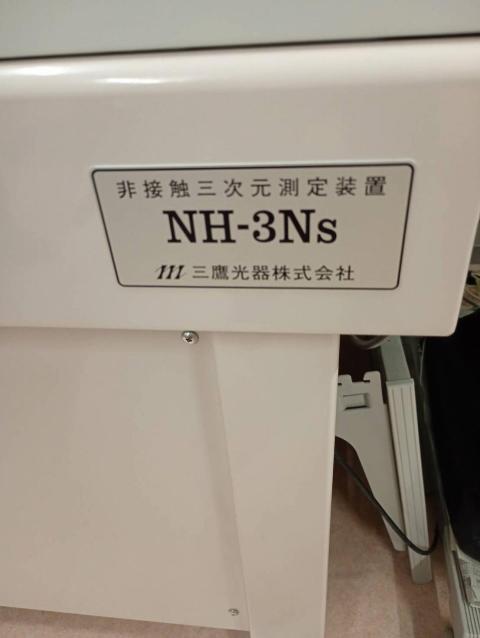

MODEL	NH-3Ns
YEAR
PRICE
SPECIFICATION	Specifications and Inspection Results (Standards) ◆Travel Range: X 152, Y 152mm (X 150, Y 150mm) ◆Maximum Speed: X 30, Y 30mm/s (X 30, Y 30mm/s) ◆Motor Feed Accuracy: X 0.3μm, -2.5μm (±7μm) Y 0.1μm, -1.7μm (±7μm) ◆Motor Feed Reproducibility: X 1.7μm p-v (6μm p-v) Y 1.7μm p-v (6μm p-v) ◆Correction Value: X 0.10000767, Y 0.10000193 ◆Platform flatness: 6μm (50μm/movable range) ◆XY axis orthogonality: 2.0" (60") ◆Z axis orthogonality: X 15" (30"), Y 3" (30") ◆Scale error: X 0.2μm, -0.3μm (±2.6μm/movable range) 　　　　　　 Y 0.4μm, -0.2μm (±2.6μm/movable range) ◆Scale repeatability: X 0.2μm p-v (3μm p-v) 　　　　　　　　　Y 0.1μm p-v (3μm p-v) ◆Correction value: X 0.10000447, Y 0.10000193 ✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.
LINK URL	https://k-smk.co.jp/en/machines/21103013/
LOCATION	Mie
LOCATION DETAIL
SELLER COMPANY	Shinmeiwa Kiko Co.,Ltd

ADDRESS	3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011
CEO NAME		CONTACT PERSON	Mr.Hashimoto / Ms.Tsuji / Ms.Matsuzaki（Chinese）/ Ms.Fujita
TEL1	81-59-361-5505	TEL2
CELLPHONE		FAX	81-59-364-8737
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	New & Used Machine tool,Press, Tools
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	https://k-smk.co.jp/en/	COMPANY TYPE	Used Machine Dealer
