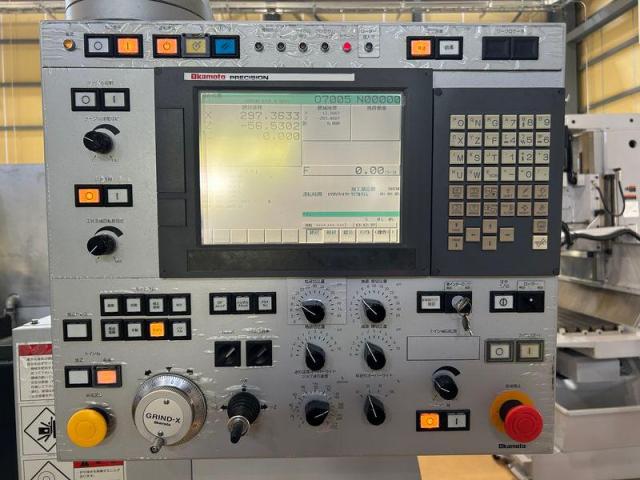

SPECIFICATION | Control unit: FANUC 0i-TD
Table swing over: 220 mm
Distance between centers: 250 mm
Max. work diameter: φ200 mm
Max. workpiece mass (between centers): 50 kg
Max. workpiece mass (chuck work): 20 kg
Grinding wheel size: φ355 × 38 × φ127 mm
Grinding wheel speed: 1,614～2,247 rpm
Wheelhead X‑axis travel (infeed): 215 mm (minimum unit 0.0001 mm)
Table Z‑axis travel: 510 mm (minimum unit 0.0001 mm)

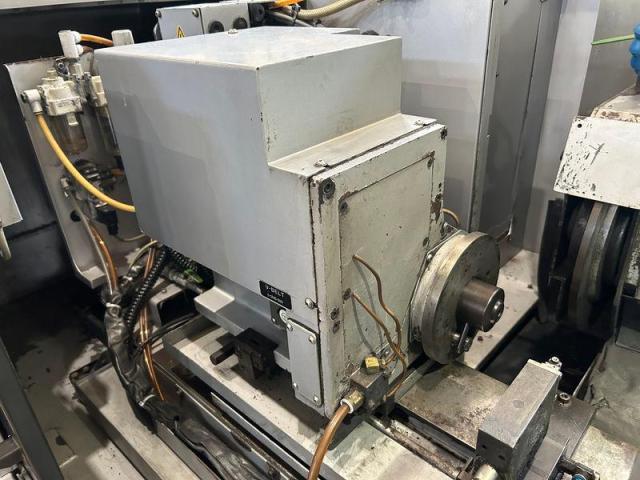

Headstock: High‑rigidity spindle
Grinding wheel rotation speed : 10～500 rpm
Headstock through‑hole diameter: φ18 mm

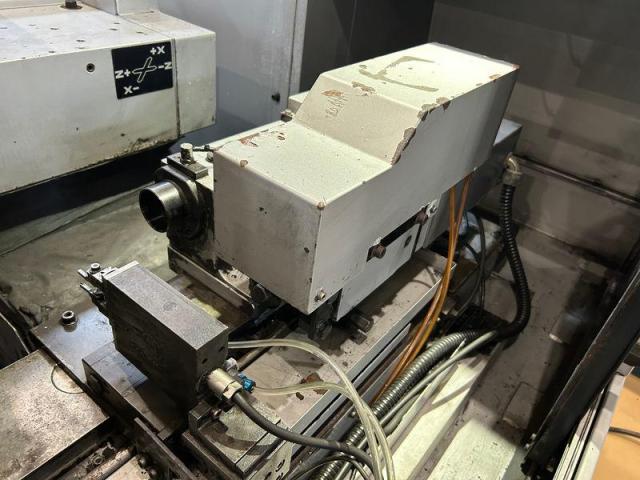

Tailstock travel: 20 mm
Center taper: No.3 MT
Floor space: W 2,670 × D 2,010 × H 1,950 mm
Machine weight: 2,900 kg

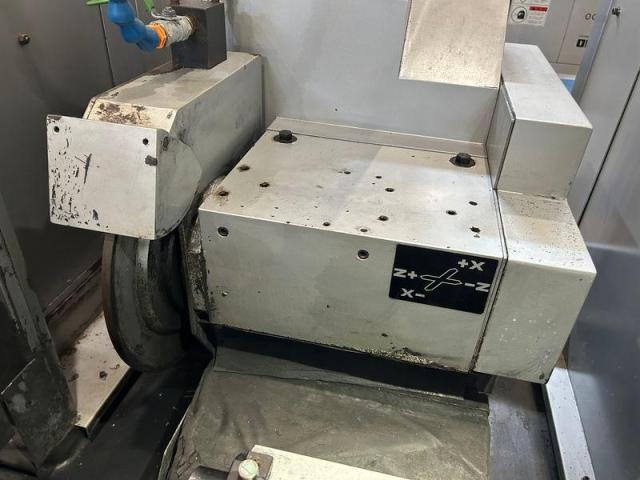

Non‑swiveling wheelhead

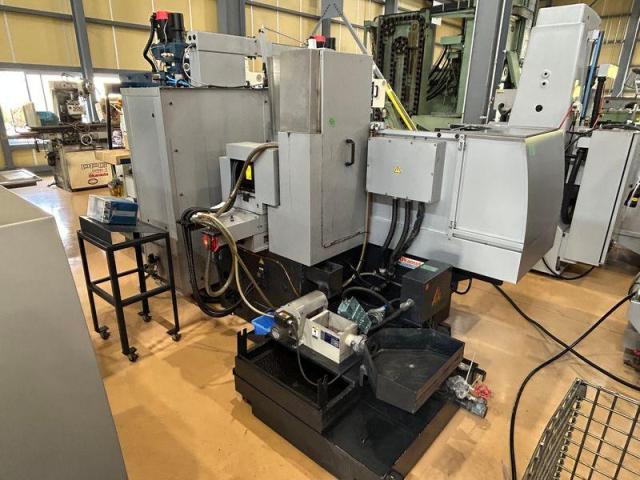

Coolant unit with magnetic separator 120 L
|
|---|
