FPT Industries

Dinospin

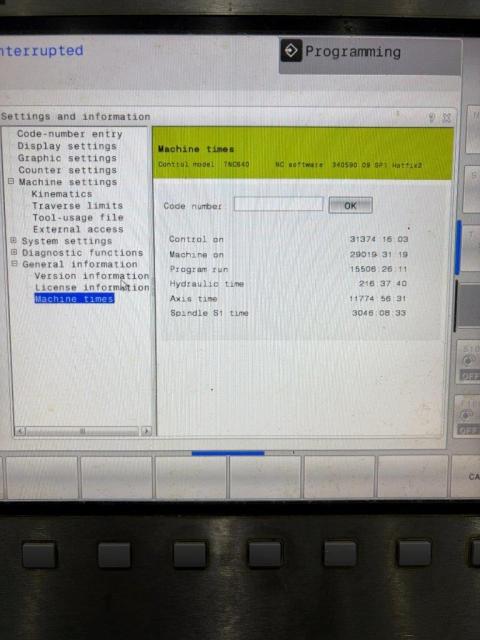

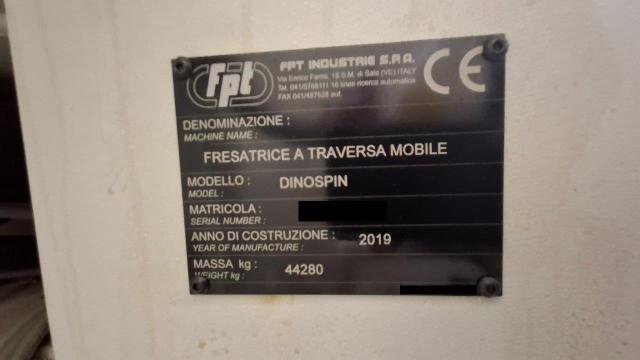

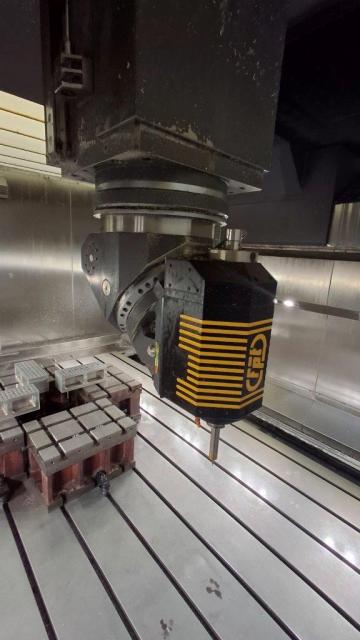

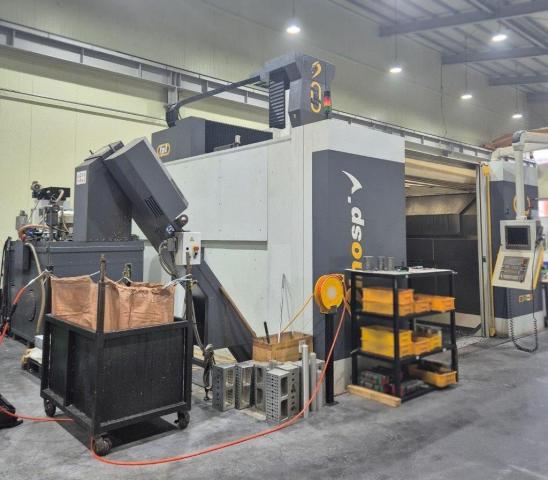

EXTREMELY RARE – A USED MACHINE LIKE THIS IS HARDLY EVER AVAILABLE We are pleased to offer the following high-performance machine: This machine combines precision, power, and flexibility — ideal for demanding model and mold making as well as high-performance aluminum machining. Due to its latest technology, specification, condition, and year of manufacture, this is an exceptionally rare opportunity on the used market. 5-Axis CNC Gantry Milling Machine FPT Dinospin Year of manufacture 2019 Heidenhain TNC 640 control Table size 4000 x 2500 mm Table load capacity max. 10 t/m² 2-Axis NC swivelling milling head C-axis +/- 270° A-axis +/- 185° Head torque (working/braking): 450 / 1400 Nm Travels: X 4000 mm Y 2500 mm Z 1300 mm Feeds X/Y/Z up to 40000 mm/min Feeds C/A up to 30 rpm Spindle motor drive 22 / 33 kW Spindle speed range 10 – 18000 rpm Spindle torque S1 / S6: 84 / 128 Nm 80 station Automatic Tool Changer (ATC) Tool taper HSK-A63 Max. tool weight 10 kg Max. tool length 600 mm Tool diameter min./max. 75 / 125 mm Machine weight 44,280 kg Equipped with: Tool measuring system Touch probe Chip conveyor Dust extractor CE marked Proposal Number V(F)-7152

EXW
