SPECIFICATION | ◆Working surface size (mm): 1250 * 600
◆Distance from table top to grinding wheel bottom (mm): 272 (origin position)

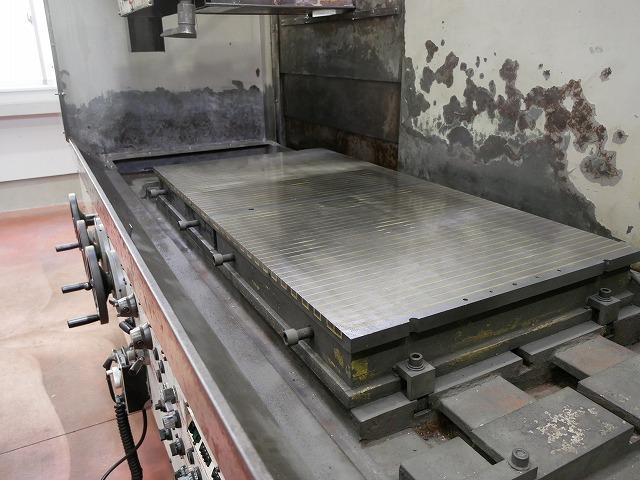

◆Standard chuck dimensions (mm): 1200 * 600 * 110
◆Load capacity (kg): 2000
◆Left/right feed
◆Travel length (mm): 1450
◆Hydraulic feed rate (m/min): 3-25
◆Feed length per handle rotation (mm): 25
◆Front/rear Feed (Z-axis)
◆ Travel (mm): 660
◆ Intermittent Traverse Feed (mm): 1-50
◆ Grinding Feed Rate (mm/min): 0-1000
◆ Rapid Feed Rate (mm/min): 5000
◆ Jog Feed Rate (mm/min): 0-500
◆ Manual Feed Rate (mm): 0.0001, 0.001, 0.01
◆ Vertical Feed (Y-axis)
◆ Travel (mm): 620
◆ Grinding Feed rate (mm/min): 0-1000
◆ Rapid feed rate (mm/min): 2000
◆ Jog feed rate (mm/min): 0-500
◆ Manual feed rate (mm): 0.0001, 0.001, 0.01

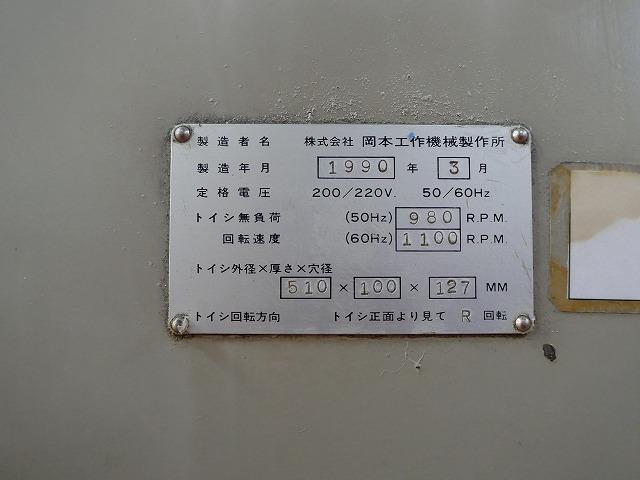

◆ Grinding wheel outer diameter * width * inner diameter (mm): Φ510 * 50 * Φ127
◆ Grinding wheel rotation speed (50/60Hz) (rpm): 980/1100
◆ Motor for grinding wheel shaft (k W): 7.5 (standard), 11 (optional)
◆Motor for front/rear shaft (AC servo motor) (kW): 1.8
◆Motor for up/down shaft (AC servo motor) (kW): 1.8

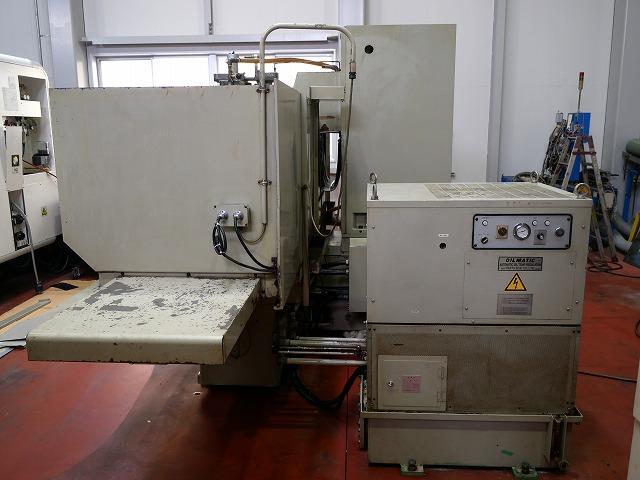

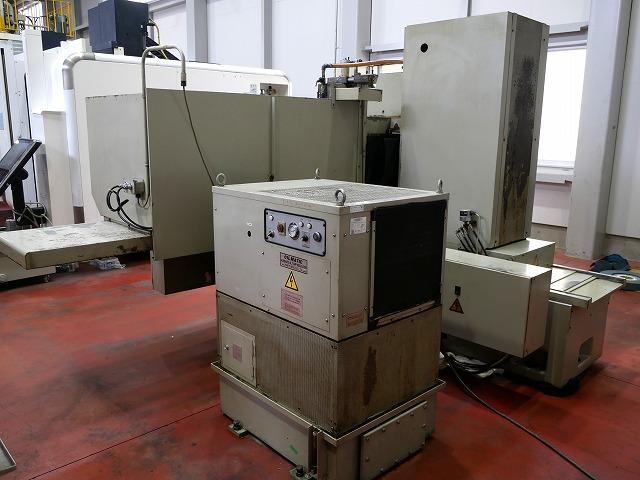

◆Motor for hydraulic pump (kW): 5.5
◆Width * Depth * Height (mm): 5400 * 4000 * 3250
◆Weight (kg): 7800
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
