DMG MORI

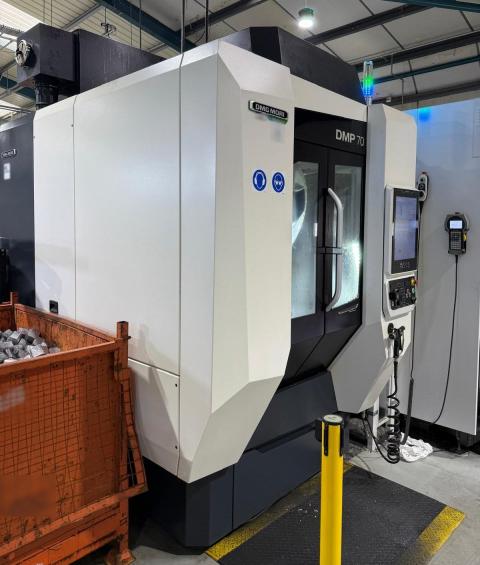

DMP 70

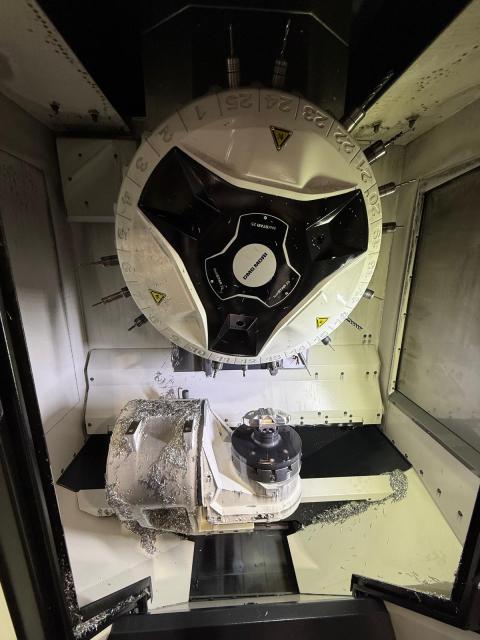

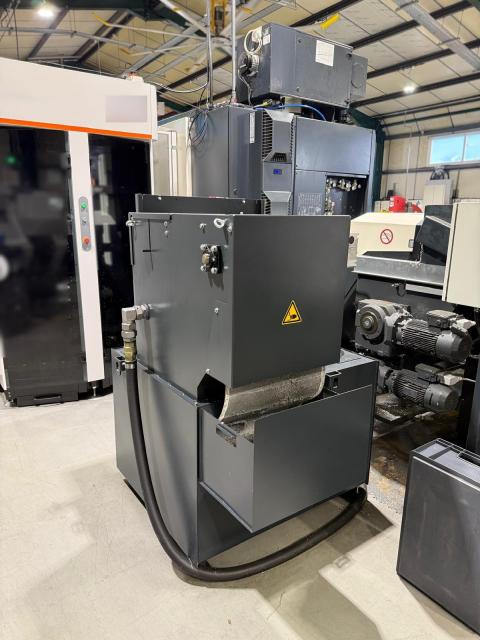

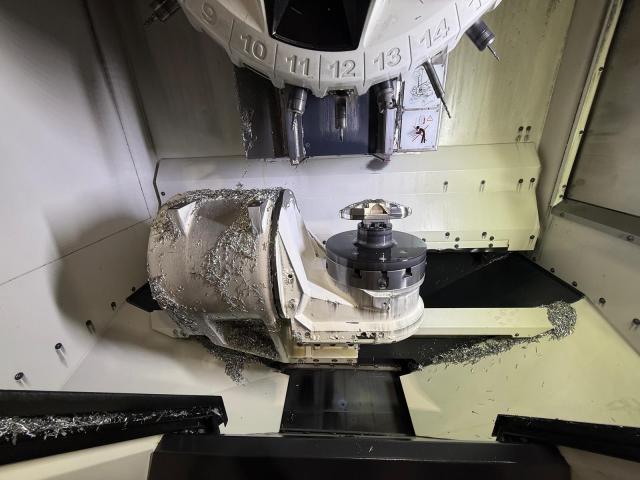

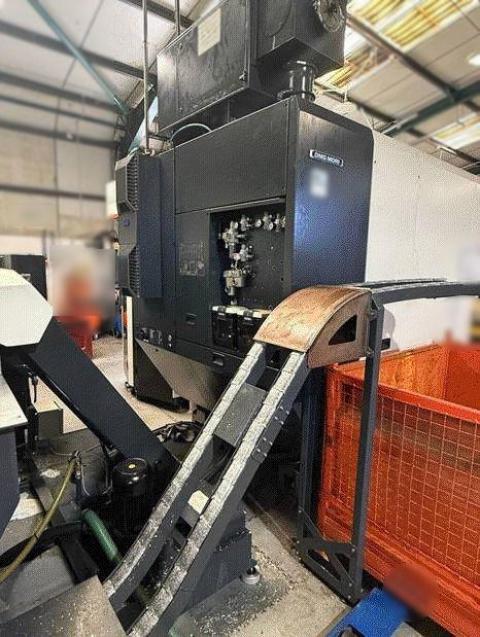

High dynamic Vertical Drill-Tap centre / 5-Axis Vertical CNC Machining Centre DMG Mori DMP 70 With best milling performance New in 2023 Siemens 840D solutionline 2-Axis NC Rotary Tilting Table C Axis 360° torque motor A Axis -120°/+100° Table diameter 290 mm Table load max. 100 kg X = 700 mm Y = 420 mm Z = 380 mm Feeds and rapids X,Y,Z up to 60000 mm/min. Spindle taper BBT 30 BIG PLUS Spindle speeds max. 24000 rpm Spindle motor drive 4/6/20 KW Spindle torque max. 40 Nm 25 Tool magazine positions Equipped with: Rotary joint with 4 channels Software package Job Shop and Sinumerik MDynamics 5-axis Data memory extension 6 GB flash card ShopMill Chip conveyor Paper filter for coolant Through-spindle coolant 40 bar Workpiece measuring system BLUM TC52 BLUM Z-Nano for tool length and tool breakage detection 4-color signal tower Direct absolute measuring system X, Y, Z with 0.01 µm resolution 600-liter tank Oil mist extraction unit 3D quickset option for tool compensation and kinematic accuracy Automation interface package Hand wheel Machine Data Connector & NET service options Optionally available a Pallet handling system System 3R Workpartner 1 + Cell …And much more! New spindle with under 100 hours! Proposal Number MV-6489

EXW
