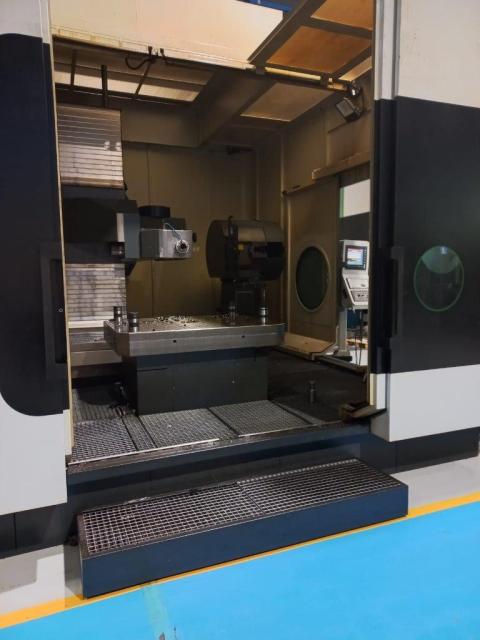

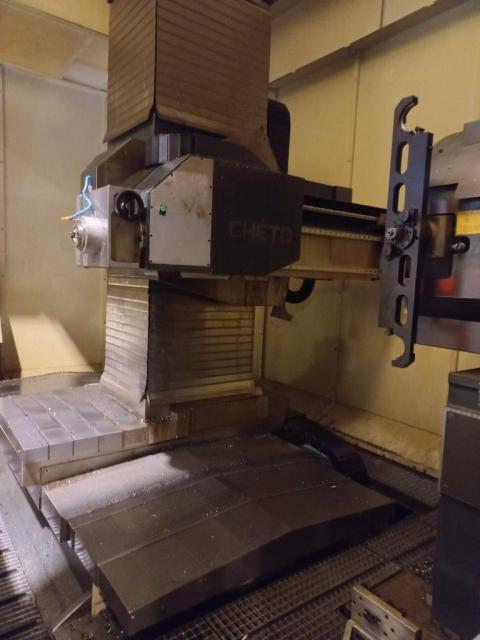

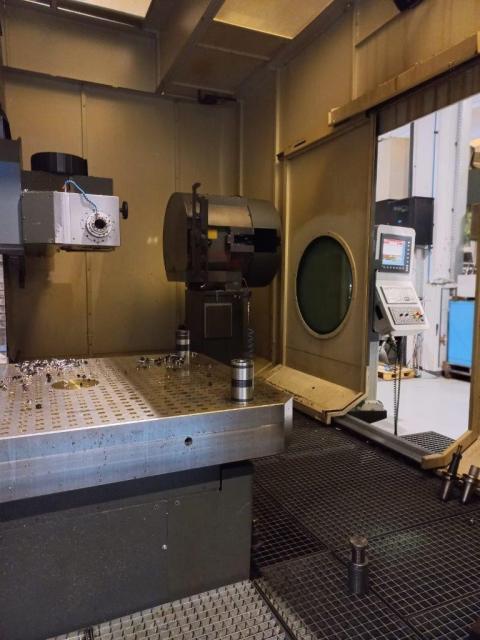

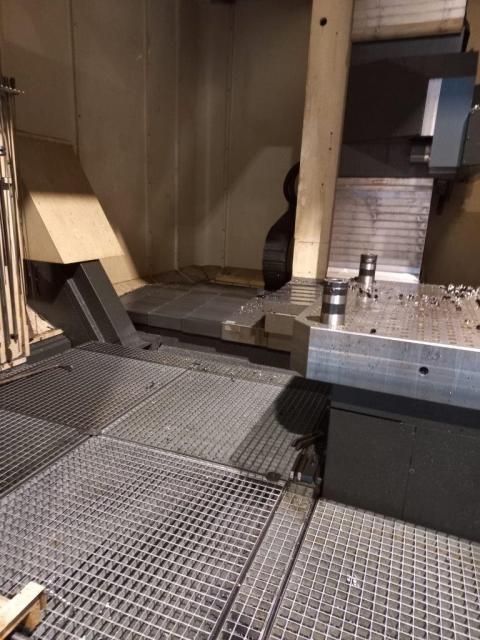

5-Axis (6-Axis) CNC Deep Hole Drilling Machine
Perfect addition to your Tool & Die / Die & Mould production

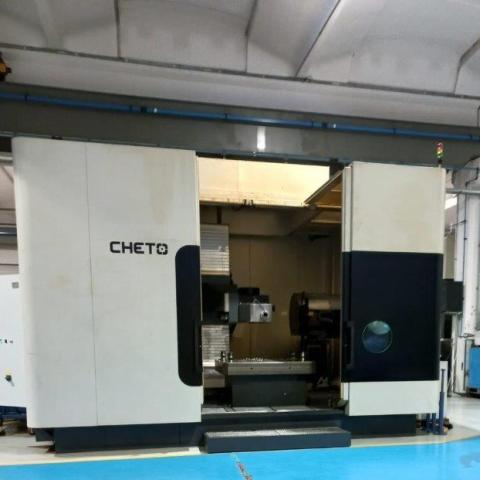

Cheto iX 2000
New in 2017
Fagor CNC control

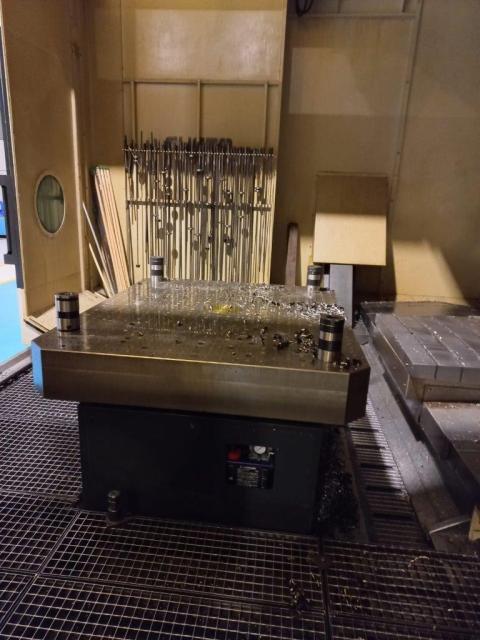

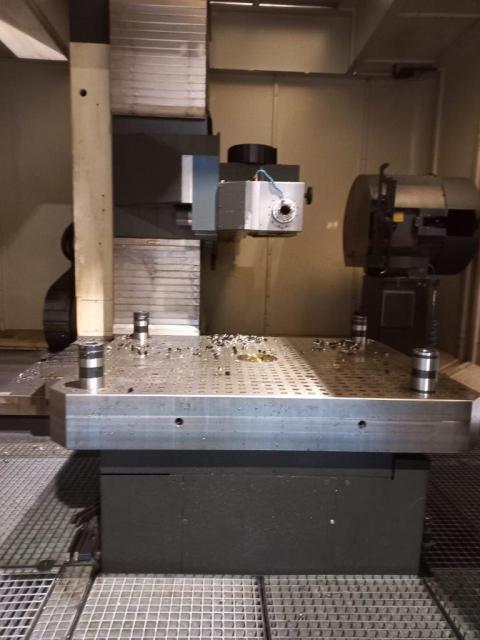

NC-Rotary table size 1300 x 1600 mm
Table load max. 20000 kg (20 t)
B-Axis 0.001°
X-Axis 2000 mm
Y-Axis 1200 mm
Z-Axis 750 mm
W-Axis 1630 mm
Spindle support tilt (in the Y-Plane) A-Axis -15°/+25°
Drilling diameter 5 ~ 40 mm
Max. drilling stroke Z + W : 750 + 1630 mm
Thread cutting to M32
Milling capacity 400 cm³/min.
Spindle taper ISO 50
Spindle drive motor rating 15/22 KW
Spindle speeds 0 ~ 4500 rpm
Spindle torque 191/287 Nm
20 station tool changer
High pressure coolant system
Proposal Number V-7008
