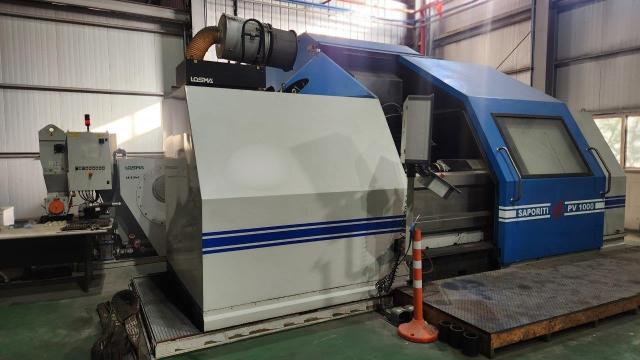

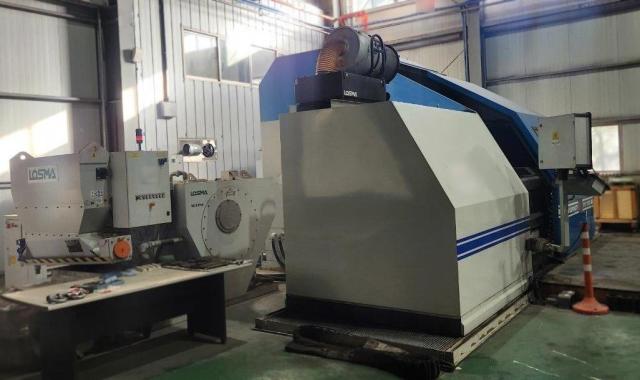

CNC Ball Valve Grinding Machine

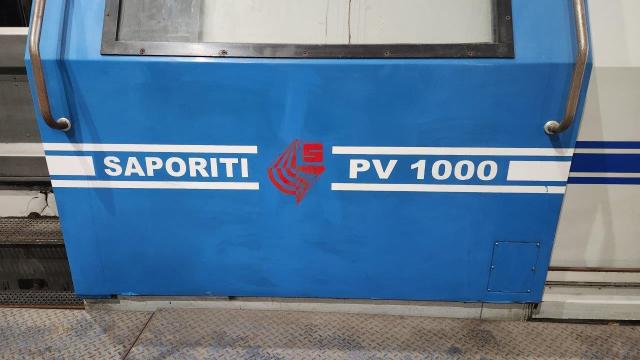

Saporiti PV 1000
Year 2014

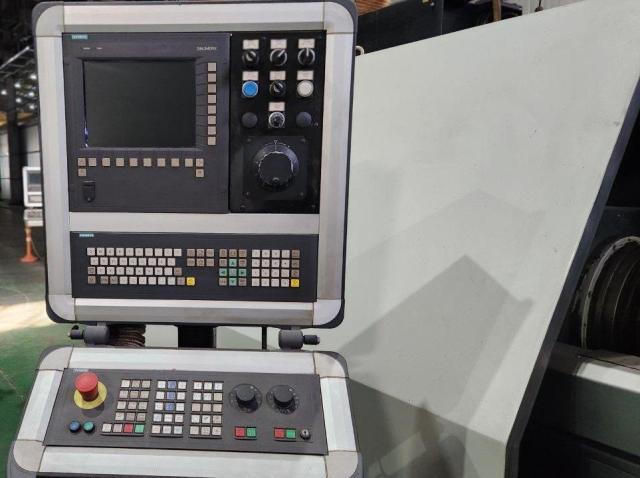

Siemens Sinumerik 840D
Ball/Sphere diameter max. 1100 mm
Travels: X Axis 1150 mm
Z Axis 1350 mm
Y Axis +/- 2 mm
Work dia. x length max. Ø 700 x 1100 mm
Work weight max. 6000 kg
Headstock speed max. 200 rpm
Grinding wheel speed max. 1200 rpm
Water filter 3000 l
RENISHAW with Saporiti customized software for easy centring of the tool with the ball
Machine dimensions L x W x H 8000 x 4100 x 3500 mm
Required floor space L x W x H 9100 x 8200 x 3600 mm
Machine weight approx. 36000 kg

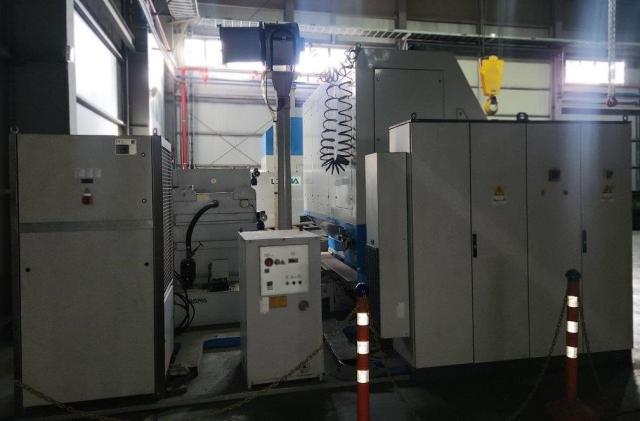

Equipped with:
Hydraulic System
Coolant chiller
Motor chiller
Coolant filter
Condition: Said to be excellent
A Saporiti PV-500 from 2014 is also available.
Proposal Number V-7141
