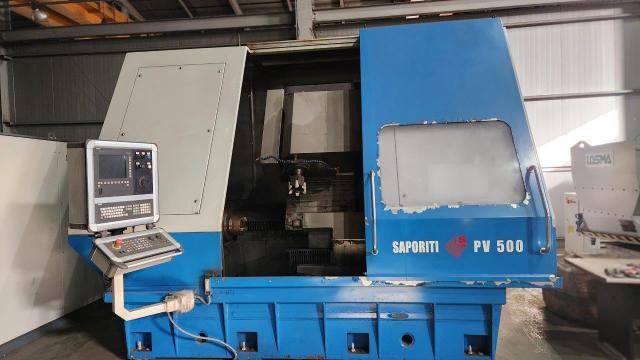

CNC Ball Valve Grinding Machine
Saporiti PV 500
Year 2014

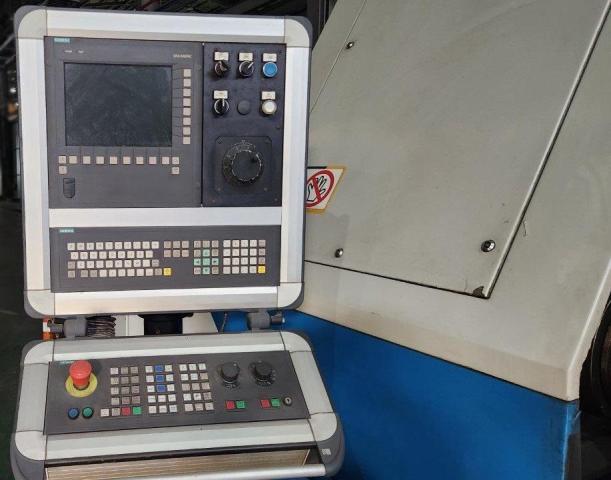

Siemens Sinumerik 840D
Ball/Sphere diameter max. 500 mm
Travels: X Axis 510 mm
Z Axis 950 mm
Y Axis +/- 1.5 mm
Work dia. x length max. Ø 600 x 1100 mm
Work weight max. 1000 kg
Headstock speed max. 200 rpm
Grinding wheel speed max. 6000 rpm

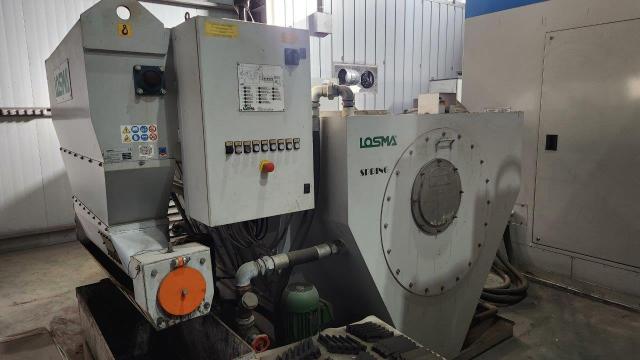

Water filter 2000 l
RENISHAW with Saporiti customized software for easy centring of the tool with the ball
Machine dimensions L x W x H 3300 x 2500 x 3000 mm
Required floor space L x W x H 7700 x 6000 x 3100 mm
Machine weight approx. 15000 kg
Condition Said to be excellent
A Saporiti PV-1000 from 2014 is also available.
Proposal Number V-7140
