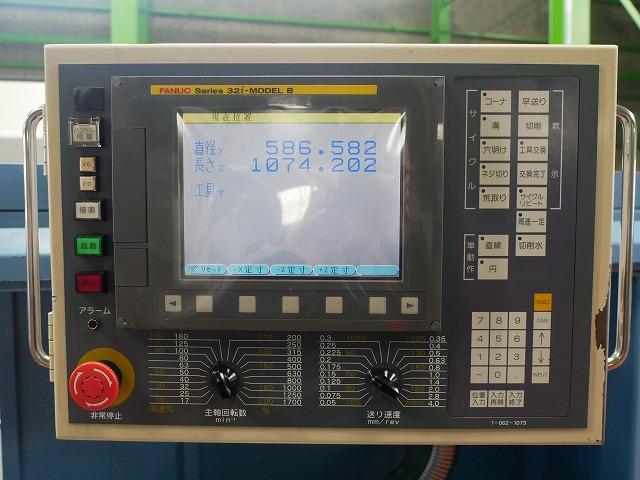

SPECIFICATION | ◆Controller: FANUC 32i-MB
◆Swing above bed: 530 mm
◆Swing above carriage: 300 mm
◆Center distance: 1,500 mm
◆Maximum cutting force: 500 kg
◆Support weight between centers: 1,000 kg
◆Spindle rotation speed: 20 stages, 2 groups, 16-1,600 rpm
◆Spindle through-hole diameter: Φ77
◆Spindle end shape: JIS AI-8
◆Maximum spindle torque Torque: 41 kgm, 177 rpm or less
◆Side feed width: 190 mm
◆Tool rest type: Square tool rest
◆Size of tool holder: 25 * 25 mm
◆X-axis travel: 342 mm
◆Z-axis travel: 1,558 mm/min
◆Rapid traverse rate: (X-axis) 3,000 mm/min, (Z-axis) 6,000 mm/min
◆Cutting feed rate: 20 levels, 0.05-4.0 mm/rev
◆Ne Jig cutting range and type: F3, 3-digit mm, 0.5-200mm
Unlimited if pitch * RPM = 6,000mm/min or less
◆Tailstock diameter: 65mm
◆Tailstock travel: 160mm
◆Tailstock center size: MT No. 4
◆Bed width: 370mm
◆Bed length:2,790mm
◆Spindle motor: Inverter VAC 5.5/7.5kW
◆Lubrication motor: (Headstock) 0.2kW, (Carriage) 0.25kW
◆X-axis feed motor: AC 0.3kW servo motor
◆Z-axis feed motor: AC 0.6kW servo motor
◆Cutting oil pump: (Optional) 2P 0.1kW
◆Machine weight:2,870kg
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
