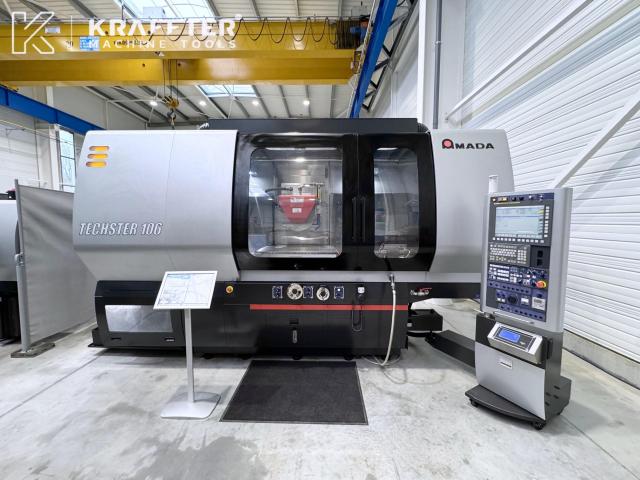

CNC Surface Grinder
Access: 39
STOCK CODE | 90163 | |||
|---|---|---|---|---|
MACHINE ID | 17941 | |||
MANUFACTURER | AMADA | |||

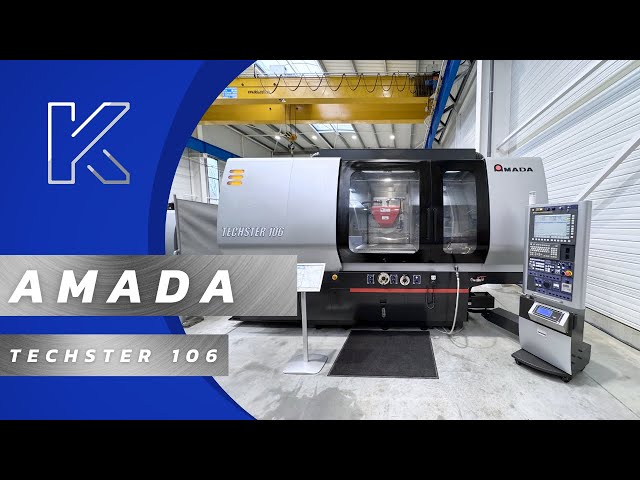

MODEL | Techster 106 | |||
YEAR | 2017 | |||
PRICE | ||||

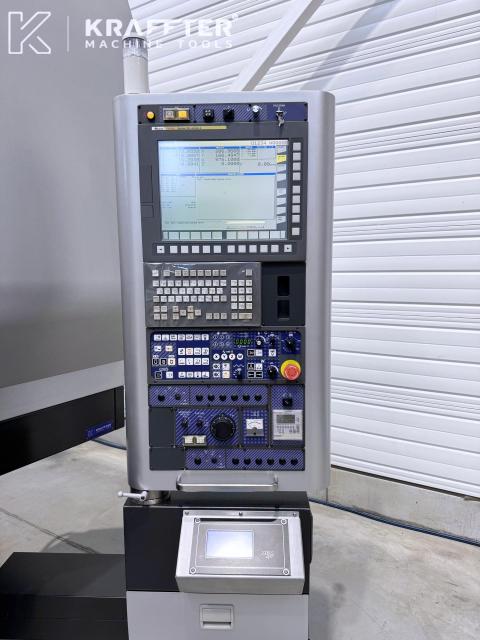

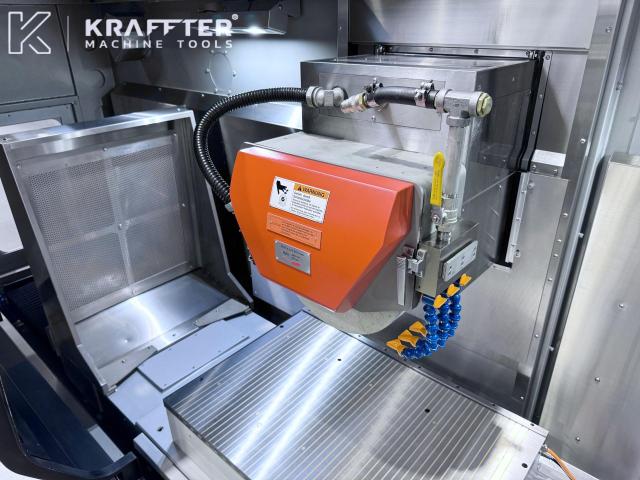

SPECIFICATION | CNC Surface grinder AMADA Techster 106 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2017 CNC control: FANUC series 32i-B Colour touch screen: 15 ["] Maximum grinding lenght x width: 1000 x 600 [mm] W axis travel (longitudinal axis): 1300 [mm] Min. Stroke speed W axis: 0.1 [mm/min] Max. Stroke speed W axis: 40000 [mm/min] Rapid traverse rate W axis: 40000 [mm/min] X axis travel (transverse movement): 660 [mm] Min. Stroke speed X axis: 0.1 [mm/min] Max. Stroke speed X axis: 5000 [mm/min] Rapid traverse rate X axis: 5000 [mm/min] Resolution X axis: 0.0001 [mm] Stroke Y axis (vertical movement): 750 [mm] Min. Stroke speed Y axis: 0.1 [mm/min] Max. Stroke speed Y axis: 500 [mm/min] Rapid traverse rate Y axis: 2000 [mm/min] Resolution Y axis: 0.0001 [mm] Max. distance spindle nose / table: 750 [mm] Max. load on table: 1500 [Kg] Min. grinding wheel speed: 300 [rpm] Max. grinding wheel speed: 2000 [rpm] Grinding spindle motor power: 11 [kW] Max. diameter grinding wheel: 405 [mm] Max. grinding wheel width: 50 [mm] Grinding wheel bore: 127 [mm] Working hours: 2710 [h] Total power required: 29 [kVA] Weight: 11000 [Kg] EQUIPMENT / INCLUDED OPTIONS: 2-axis simultaneous 1x electro-magnetic chuck, 900 x 600 [mm] 1x automatic grinding wheel balancing device, MPM type 3.ESB.150A.114.CF 1x on-board measuring touch probe with compensation function 1x rotary dresser 1x NC swivelling rotary dresser 1x static straight dresser 1x paper tape filtration unit 1x oil chiller, DAIKIN AKZ149-C 1x oil mist extractor, IFS type M 1600 3x wheel flanges 3x grinding wheels 1x axis clamping kit 1x toolbox (service wrenches) 1x balancing arbor 1x transformer Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to the brands Okamoto, Jones & Shipman, Jung, Favretto, Blohm, Studer; also consider cylindrical grinders, lathes, machining centers, milling machines. | |||
CONDITION | Fully functional | |||
WEIGHT | 11000 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/250/amada-techster-106/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
