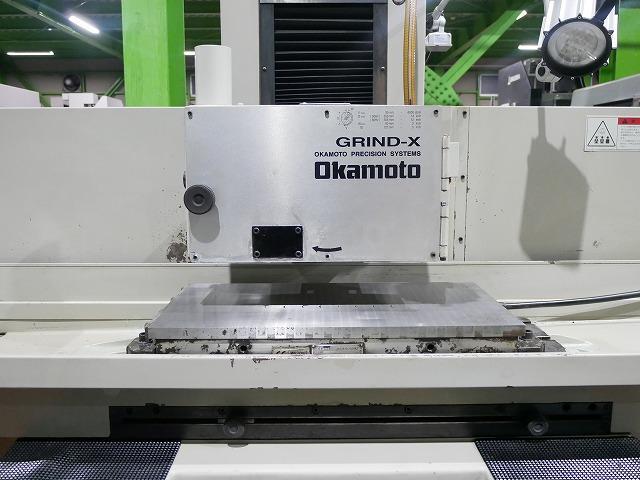

SPECIFICATION | ◆Table work surface size (length＊width): 605＊300
◆Table travel (manual: left/right＊front/back): 750＊340
◆Distance from table top to bottom of grinding wheel (50Hz, Φ355mm grinding wheel): 22.5 - 322.5
◆Distance from table top to bottom of grinding wheel (60Hz, Φ305mm grinding wheel): 47.5 - 347.5

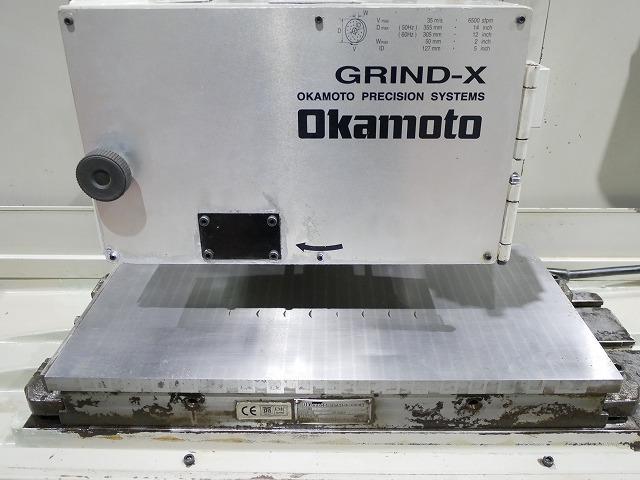

◆Dimensions of mountable standard chuck (length＊width＊height): 600＊300＊80
◆Maximum workpiece weight (including chuck weight of 100kg): 420kg
◆T-slot width＊number: 17＊3
◆Left/right feed rate (average): 0.3 - 25

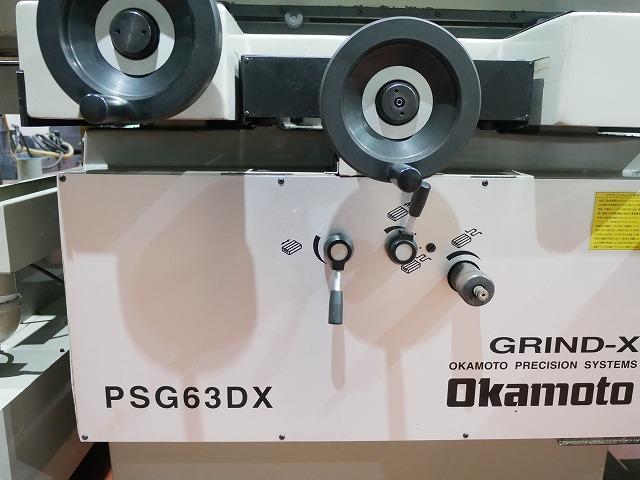

◆Feed amount per left/right handle rotation: 47
◆Manual front/back feed (feed amount per handle rotation): 5.0
◆Manual front/back feed (feed amount per dial increment): 0.02
◆Automatic front/back feed Intermittent Feed: 0.5-20
◆Automatic Front/Back Feed Continuous Feed Speed: 0.1-1.0
◆Automatic Infeed Rate (Traverse & Plunge Cut): 0.001-0.03 (12 levels)
◆Manual Infeed Rate (Manual Infeed Rate per Rotation of the Handle): 0.01/0.1/1.0
◆Manual Infeed Rate (Manual Infeed Rate per Dial Mark): 0.0001/0.001/0.01
◆Sparkout Rate: 0-5
◆Up/Down Speed: 600mm/min

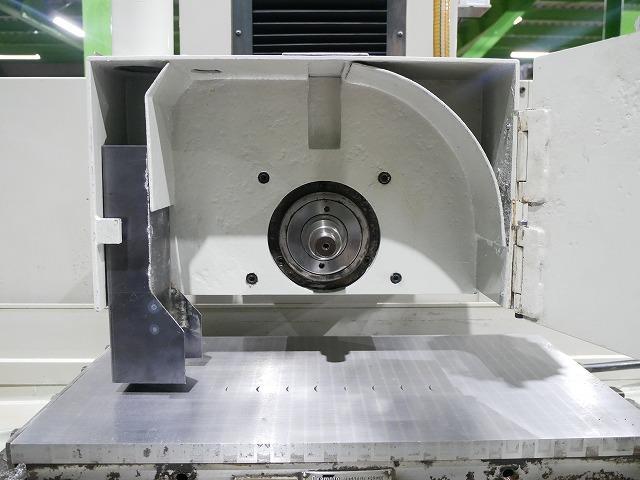

◆Grinding Wheel Outer Diameter (50/60Hz)＊Width＊Inner Diameter: Φ355/Φ305＊38＊Φ127
◆Grinding Wheel Rotation speed (50/60Hz): 1500/1800 min-1
◆Power supply requirements: 3-phase 200V, 50/60Hz, 3-phase 220V, 60Hz
◆Power capacity (including optional chuck and water injection device): 10kVA
◆Occupied volume (W＊D＊H): 2737＊1929＊1808
◆Machine weight: 2800 kg
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence. |
|---|
