CNC Vertical Borer / Vertical Turning Machine / VTL - with C-Axis + Milling + Y-Axis for off center machining operations
Tos Hulin
Powerturn 1250 Y C-M 2APC
Year 2005

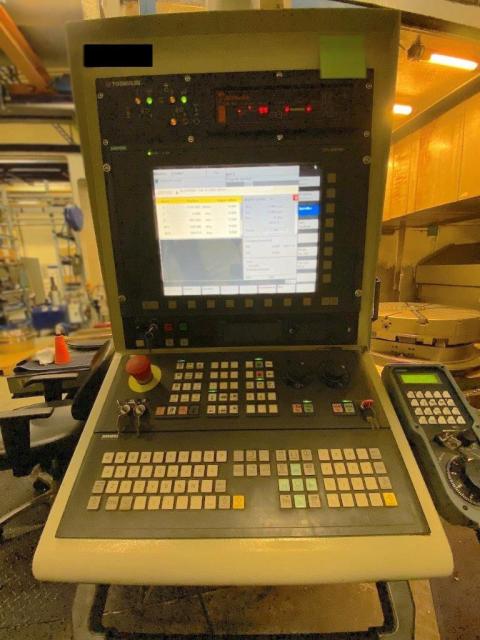

Siemens Sinumerik 840D CNC control

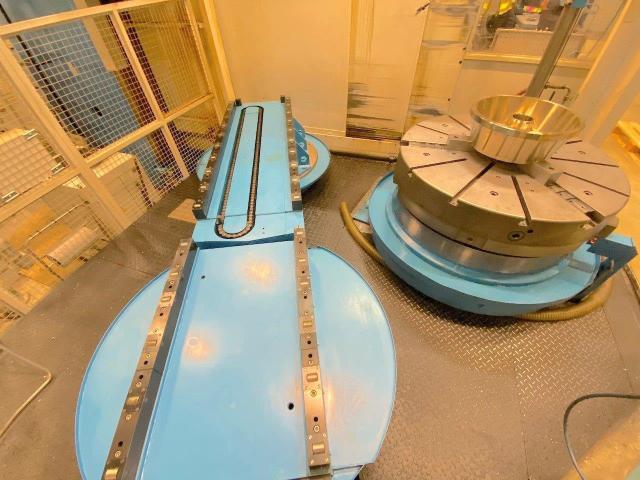

Pallet changer - 2 x pallets
Pallet diameter 1250 mm
Load on the pallets max. 5000 kg
Turning diameter max. 1400 mm
Work piece height max. 1600 mm (with a tool length of 185 mm)
X Axis -1000 / +1850 mm
Z Axis 1500 mm
C-Axis 360° / 0.001°
Y-Axis +/- 900 mm
Crossrail vertical travel 1000 mm
Table drive motor 60 KW
Table speeds 2 - 400 rpm
Milling spindle drive motor 28 KW
Milling spindle speeds 12.5 - 3000 rpm

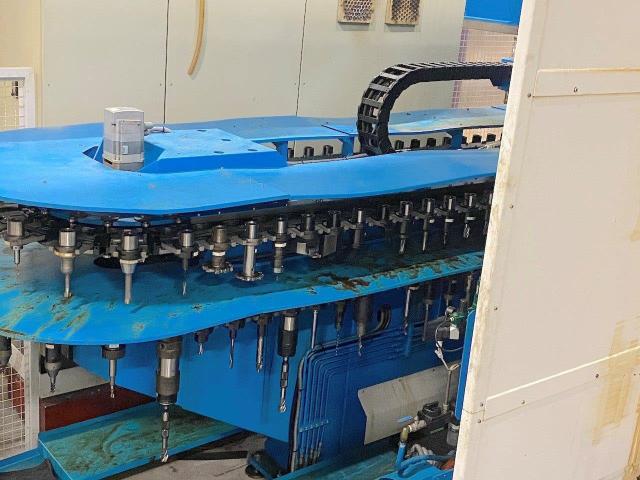

Tool changer with 144 tool positions
Head changer
H-Head
V-Head
Universal head
D'Andrea facing and contouring head
Proposal Number V(K)-7088
