CKD Blansko

SKSJ-1A

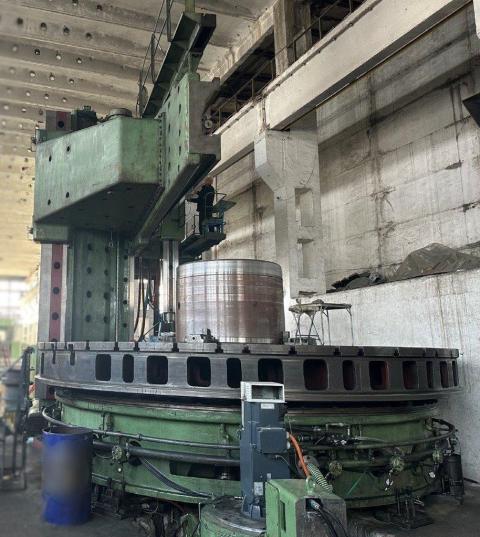

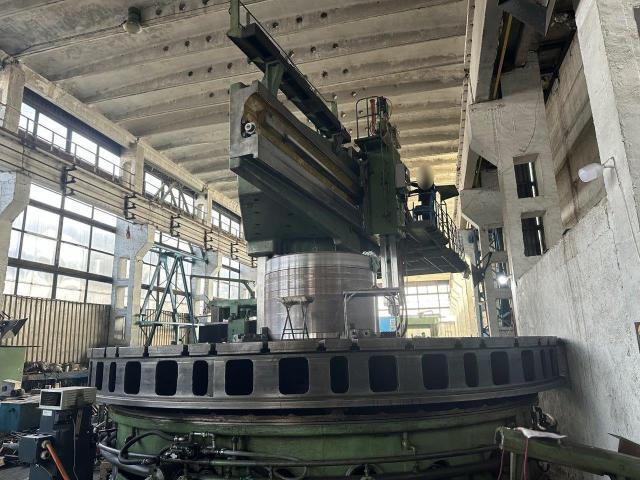

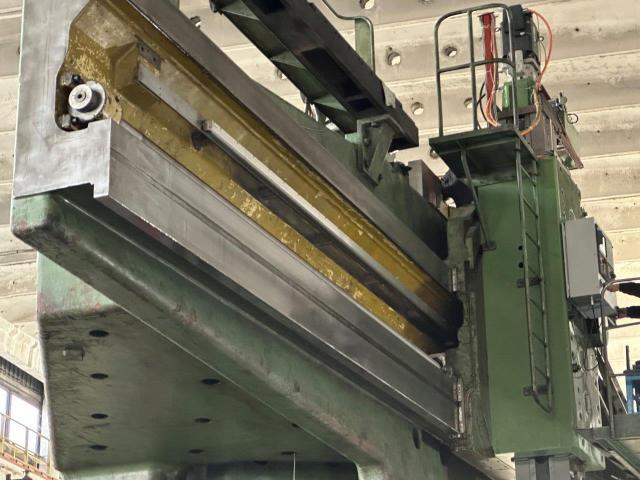

Single Column CNC Vertical Lathe (VTL) with Milling Spindle CKD Blansko Model SKSJ-1A Modernised 2024 Siemens Sinumerik 828D control Faceplate diameter: 6300 mm Weight on faceplate: max. 125000 kg Turning diameter to centre: max. 8000 mm Turning diameter: max. 16000 mm Workpiece height: max. 2600 mm Ram vertical travel: Z 2000 mm Table motor rating: 92 KW Table speeds: max. 20 rpm C-axis: 0.001 degrees Milling spindle motor rating: 15 KW Milling spindle speeds: max. 1000 rpm Equipped with: Machine was modernised in 2024. New CNC - Siemens 828D control. New electrical cabinet with Siemens components. New ballscrews. New gearboxes for the axes. Hydrostatic table with 6 extensions. Turn diameter to centre max. 8000 mm. Turn diameter (not to centre) max. 16000 mm. C-Axis speeds to 0,6 rpm. Turning height of 2600 mm can be adjusted/extended during installation. Ram size 400 x 400 mm. Milling spindle taper ISO 60. Rettrofitted / overhauled / modernised 2024. Condition: Very good. Videos of the test run after the retrofit are available. More photos available. Reinstallation can be provided if necessary.

EXW
