CNC Surface Grinder
Access: 232
STOCK CODE | 90152 | |||
|---|---|---|---|---|
MACHINE ID | 17465 | |||
MANUFACTURER | OKAMOTO MACHINE TOOL WORKS | |||

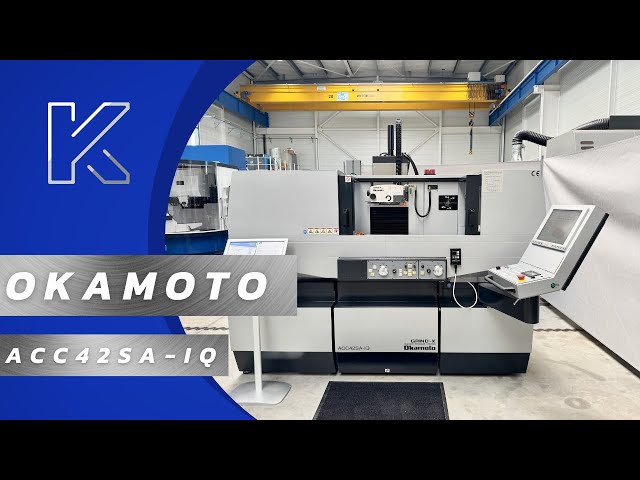

MODEL | ACC42SA-IQ | |||
YEAR | 2017 | |||
PRICE | ||||

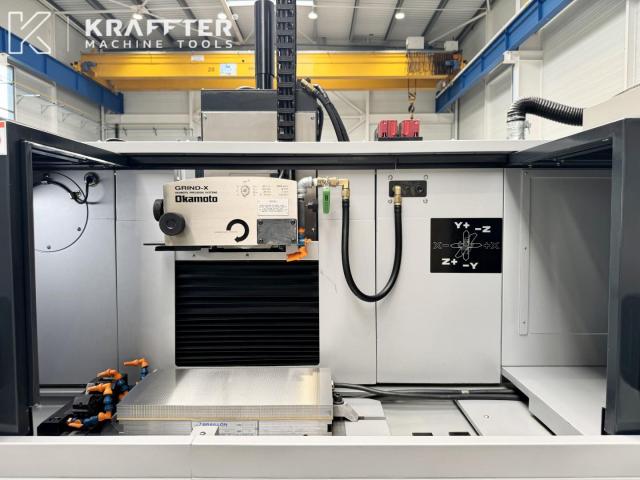

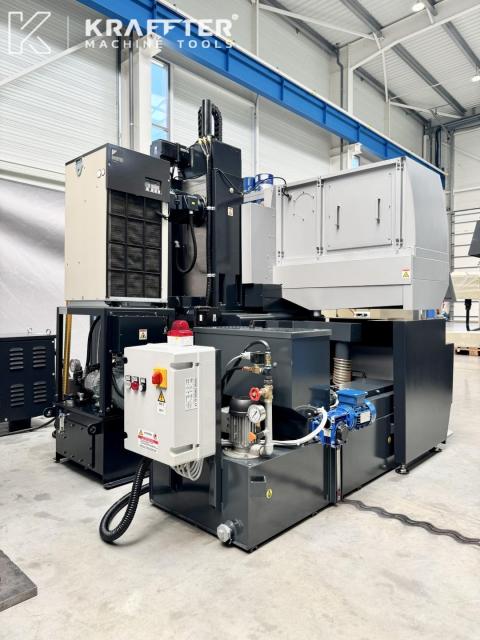

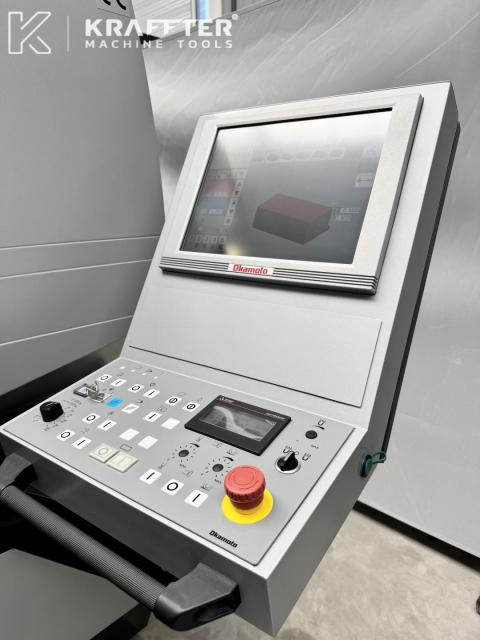

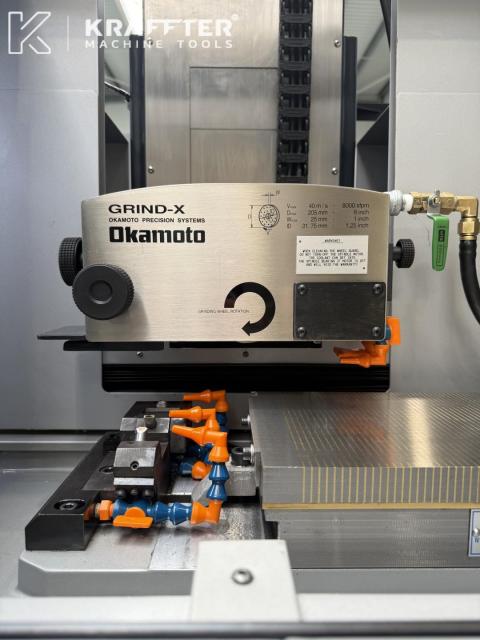

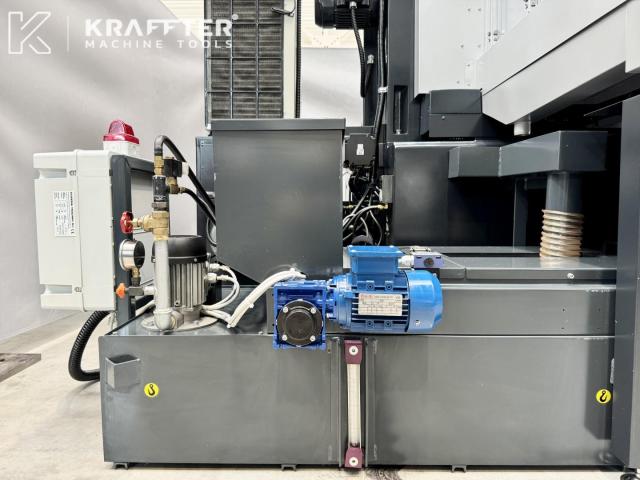

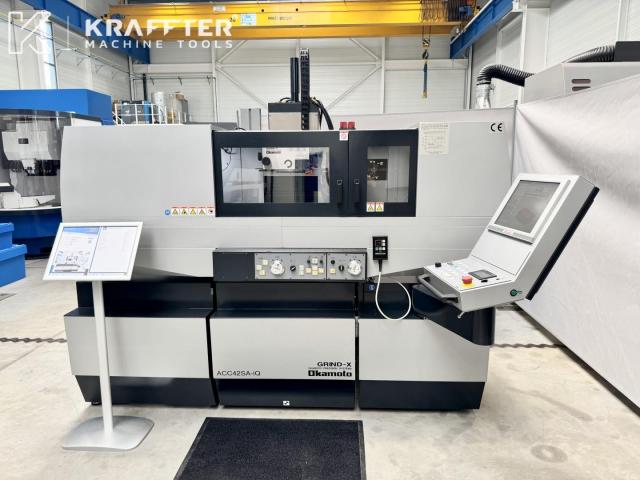

SPECIFICATION | OKAMOTO ACC42 SA-iQ – CNC surface grinder TECHNICAL CHARACTERISTICS: Year of manufacturing: 2017 Colour touchscreen: Yes Maximum grinding lenght x width: 400 x 200 [mm] Stroke X axis (table movement): 510 [mm] Min. Stroke speed X axis: 100 [mm/min] Max. Stroke speed X axis: 20000 [mm/min] Z axis travel (transverse movement): 220 [mm] Min. distance spindle nose / table: 22.5 [mm] Max. distance spindle nose / table: 357.5 [mm] Max. load on table: 120 [Kg] Grinding wheel min. speed: 1000 [rpm] Grinding wheel max. speed: 3600 [rpm] Grinding spindle motor power: 2.2 [kW] Max. diameter grinding wheel: 205 [mm] Max. grinding wheel width: 16 [mm] Min. grinding wheel width: 6 [mm] Grinding wheel bore: 31.75 [mm] Number of running hours: 59 [h] Supply voltage: 400 [V] Total power required: 11 [kVA] Weight : 2100 [Kg] INCLUDED EQUIPMENT: x1 150 [L] coolant tank FB1/R with papertape filtration unit FB1 x1 BRAILLON electro-permanent magnetic chuck type EPEFINE 2 x1 BRAILLON magnetic chuck remote control, microprocessor-based, type T10 x5 grinding wheel flanges x1 oil chiller x1 transformer x2 service keys x1 balancing shaft x1 set of axis-brackets for transport STANDARD CONVERSATIONAL PROGRAMMING MODE: Straight and angular dressing (standard) Surface grinding, multiple plunge grinding, and face grinding (standard) INCLUDED ISO PROFILING: Wheel profiling Contour machining of workpiece Full functionality for V-shape and freeform programming on the grinding wheel, and ISO contouring on the workpiece. Precise positioning integrated: +/- 1 [μm] Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to brands like Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see cylindrical grinder, lathe, machining center, milling machine. | |||
CONDITION | Fully functional | |||
WEIGHT | 2100 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/242/okamoto-acc42sa-iq/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
