CNC Surface Grinder
Access: 242
STOCK CODE | 90162 | |||
|---|---|---|---|---|
MACHINE ID | 17433 | |||
MANUFACTURER | AMADA | |||
MODEL | Techster 84 | |||
YEAR | 2014 | |||
PRICE | ||||

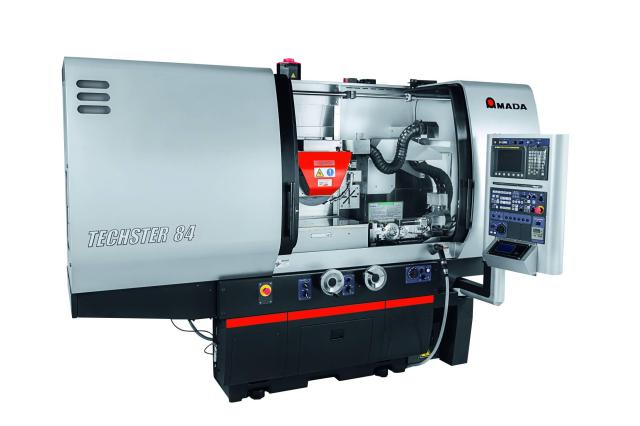

SPECIFICATION | AMADA Techster 84 - CNC Surface grinder TECHNICAL CHARACTERISTICS: CNC control : FANUC series 32i-B W axis travel (longitudinal axis) : 1000 [mm] Min stroke speed W axis : 0.1 [mm/min] Max stroke speed W axis : 40000 [mm/min] Rapid traverse rate W axis : 40000 [mm/min] X axis travel (transverse movement) : 450 [mm] Min stroke speed X axis : 0.1 [mm/min] Max stroke speed X axis : 5000 [mm/min] Rapid traverse rate X axis : 5000 [mm/min] Resolution X axis : 0.0001 [mm] Stroke Y axis (vertical movement) : 500 [mm] Min stroke speed Y axis : 0.1 [mm/min] Max stroke speed Y axis : 500 [mm/min] Rapid traverse rate Y axis : 2000 [mm/min] Resolution Y axis : 0.0001 [mm] Table length : 600 [mm] Psbn Uaewulg Ee H Rwjgp Table width : 400 [mm] Max distance spindle nose / table : 500 [mm] Max load on table : 1000 [Kg] Grinding wheel min speed : 300 [rpm] Grinding wheel max speed : 2500 [rpm] Grinding spindle motor power : 7.5 [kW] Max diameter grinding wheel : 355 [mm] Max grinding wheel width : 50 [mm] Grinding wheel bore : 127 [mm] Total power required : 23 [kVA] Weight : 5000 [Kg] EQUIPMENT / INCLUDED OPTIONS: x1 electro-magnetic chuck 600 x 400 [mm] x3 glass linear scales on the 3 linear axes x1 workpiece probe x1 paper filtration unit x1 oil chiller DAIKIN AKZ149M133 x1 oil mist collector IFS type IFMC 1100 x1 transformer The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed | |||
CONDITION | Fully functional | |||
WEIGHT | 5000 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/249/amada-techster-84/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
