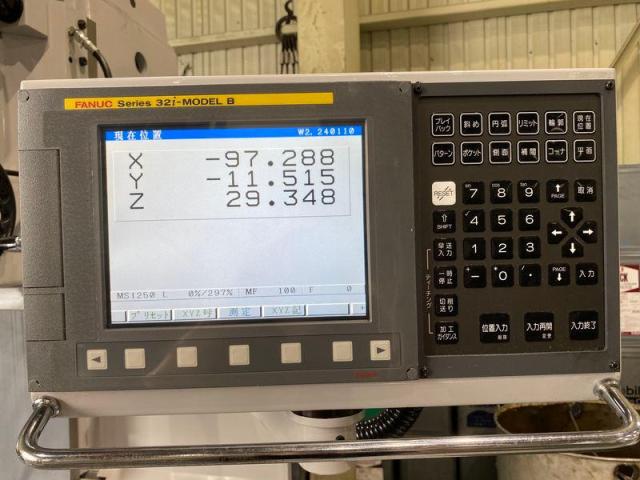

SPECIFICATION | Control unit: FANUC 32i-MODELB

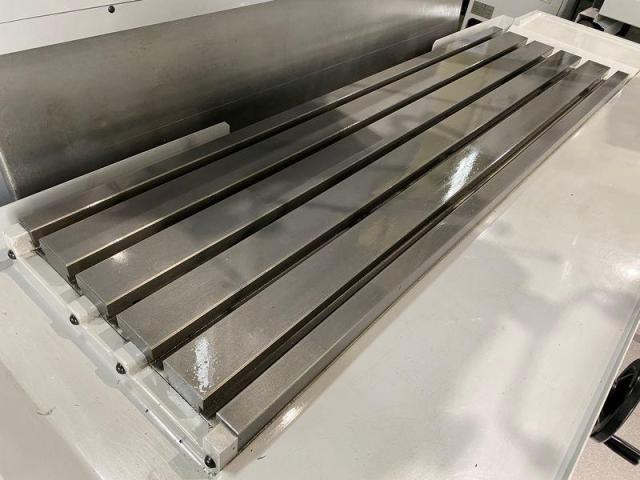

Table size: 1400 x 400 mm
Max. work weight: 600 kg
Table T-slot width and pitch: 18 (h7) P = 80 mm
Number of table T-slots: 5
Travel X: 850 Y: 400 Z: 520 mm
Spindle end to table top: 140 to 660 mm
Spindle speed: 55～2,000 rpm

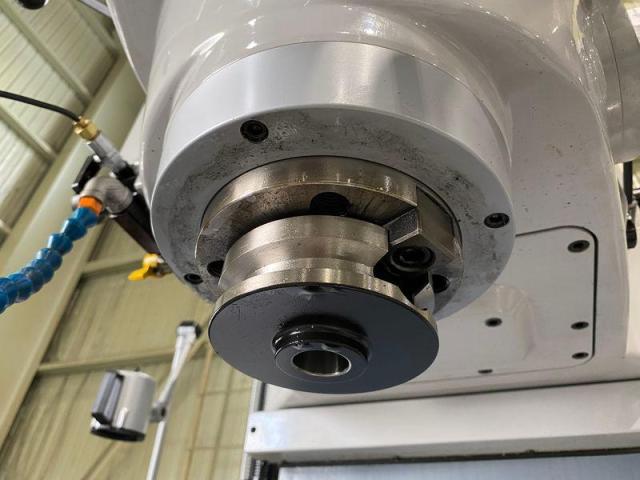

Spindle taper: BT50
Machine required area: 2,954 x 1,870 mm
Height: 2,499 mm
Machine weight: Approximately 3,700 kg
NC 2 axis (X, Y axis), Z axis manual
Bullstat type tool attachment/detachment device (BT50)
Chip coil conveyor
Air blower for cutting chips (manual)
Cutting tank (60ℓ)
Processing guidance function |
|---|
