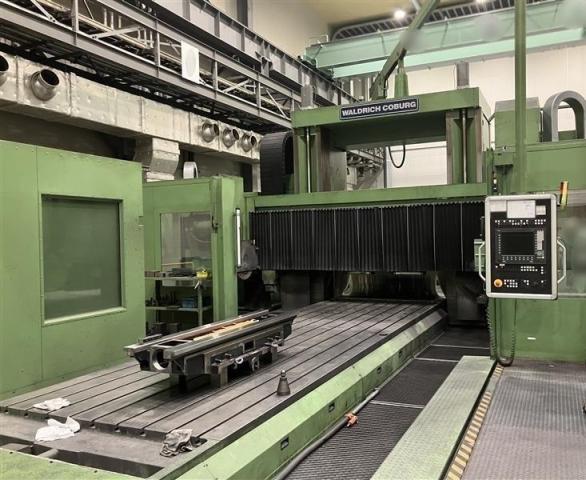

WALDRICH COBURG

Way Grind 2000AC

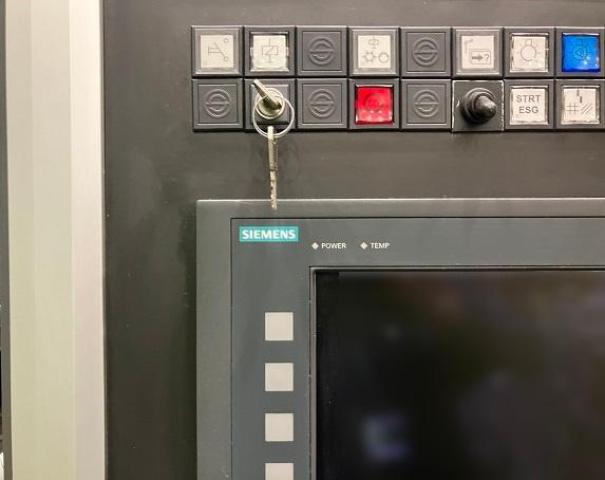

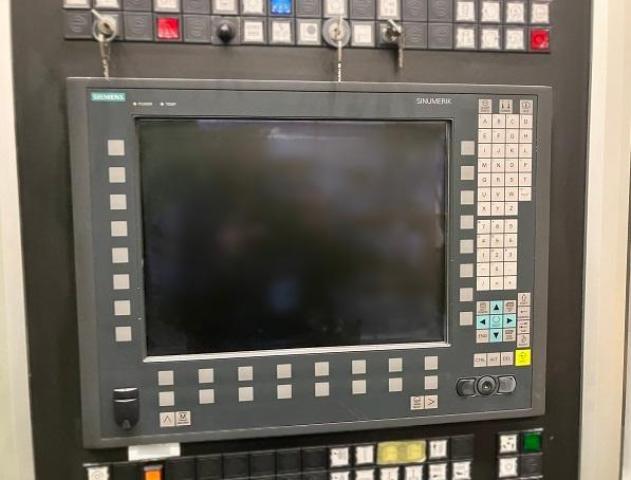

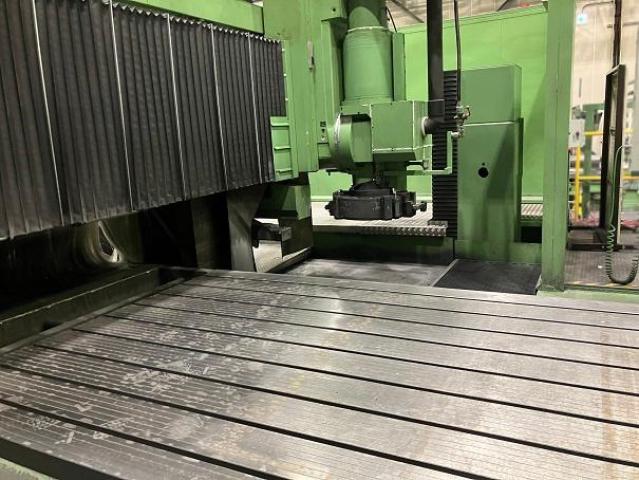

CNC Guideway Grinding Machine Waldrich Coburg Way Grind 2000AC New in 2013 Siemens 840D control Table width 2000 mm Grinding width 2200 mm Distance between column covers 2200 mm Grinding height 2000 mm Grinding length 6000 mm Longitudinal table travel 6825 mm Table load 8000 kg/m Total table load max. 20000 kg Max. grinding height: Universal grinding head 2,000 mm Peripheral grinding head 1925 mm Table speed 1.1 - 1.2 m/min. - max. 10-14 m/min. Positioning accuracy +/- 1 mm Peripheral grinding head: Max. drive power 50 KW Spindle speeds 500 - 1100 rpm Grinding wheel dimensions: Diameter (max.) 600 mm Width 150 mm Internal diameter 150 mm Universal grinding head Drive power (max.) 22 KW Spindle speeds 500 - 2500 rpm Grinding wheel dimensions: Diameter (max.) 600 mm Width 100 mm Internal diameter 250 mm Grinding spindle indexing +/- 110° Precise indexing every 1° thanks to Hirth gearing Automatic 8-station grinding wheel changer Dressing device (1 each for universal and peripheral grinding spindle) Wet grinding device and coolant filter and much more Proposal Number V-7069

EXW
