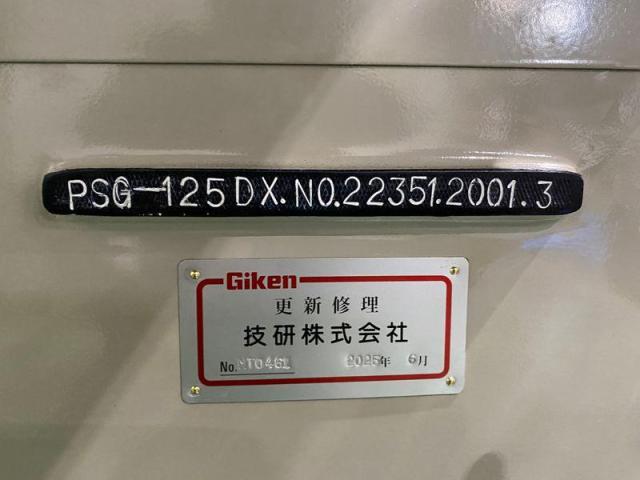

SPECIFICATION | Machine to be overhauled in 2025
Table working surface size : 1,250 x 500 mm
Table travel : 1,450 x 560 mm
Distance from table top to grinding wheel bottom : 595 mm
Chuck dimensions : 1,200 x 500 x 110 mm
Maximum work mass : 500 kg
T-slot width x number : 20 mm x 3
Automatic feed rate for rough grinding : 0.001-0.05 mm
Grinding wheel (out dia. x width x in dia.) : φ510 x 50 x φ127 mm
Grinding wheel rotation speed : 1,100 rpm
Floor space required : 5,400 × 2,505 mm
Height : 2,200 mm
Machine weight : Approximately 7,500 kg
FX control device

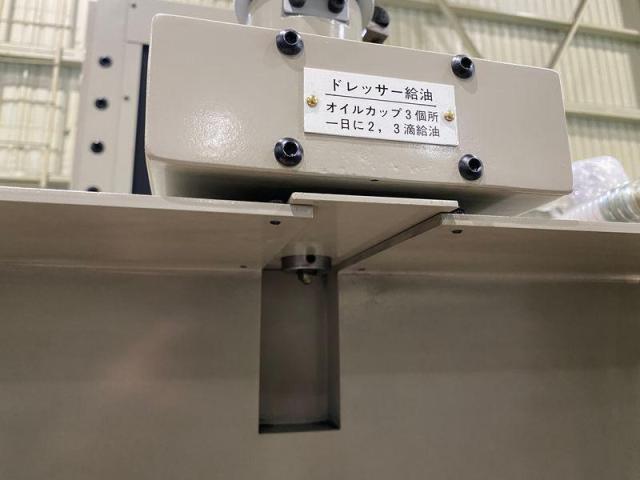

Upper dresser

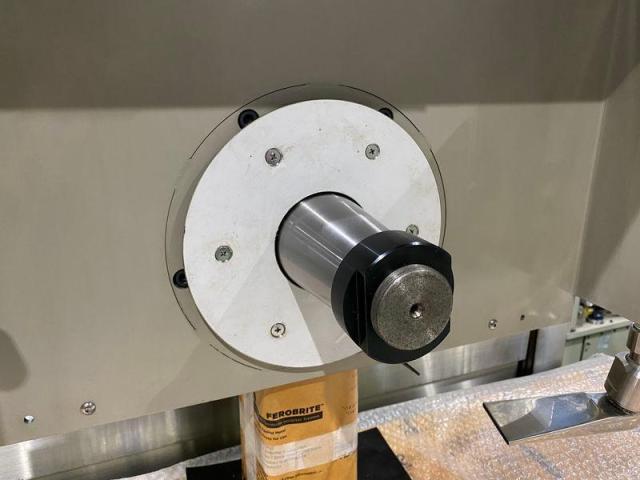

Wheel (with flange)

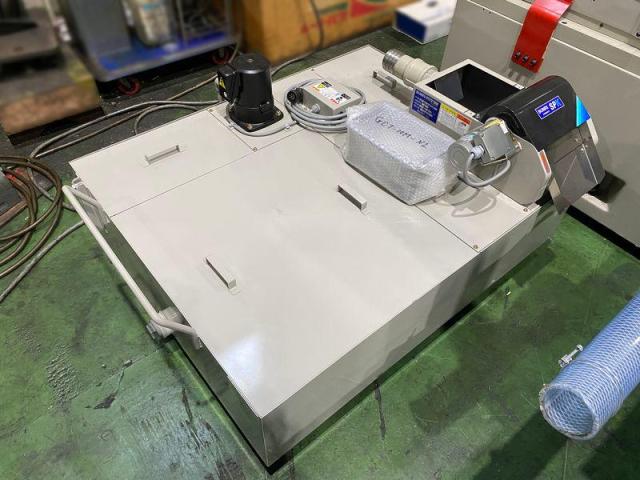

Water injection device with magnetic separator (120 liters)
Hydraulic unit (with automatic oil temperature adjustment device)
Wheel head up and down feed handle
Tool set
-------------------------
Warranty period is one year after delivery to the user |
|---|
