YAMASAKI GIKEN F-352 CNC Vertical Mill for Sale [17217] | USED MACHINERY.BZ

HOME
Select Machine Name
CNC Milling Machines
CNC Vertical Mill

CNC Vertical Mill

Access: 271

STOCK CODE	20302167			CONTACT SELLER This product is sold by Shinmeiwa Kiko Co.,Ltd. By PHONE By EMAIL
MACHINE ID	17217
MANUFACTURER	YAMASAKI GIKEN
MODEL	F-352
YEAR	2019
PRICE

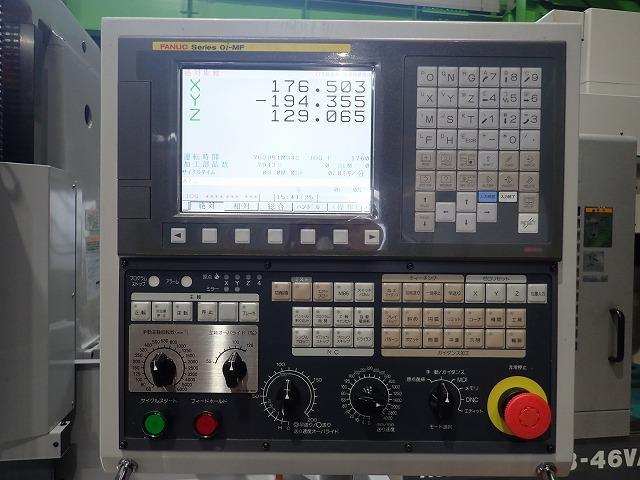

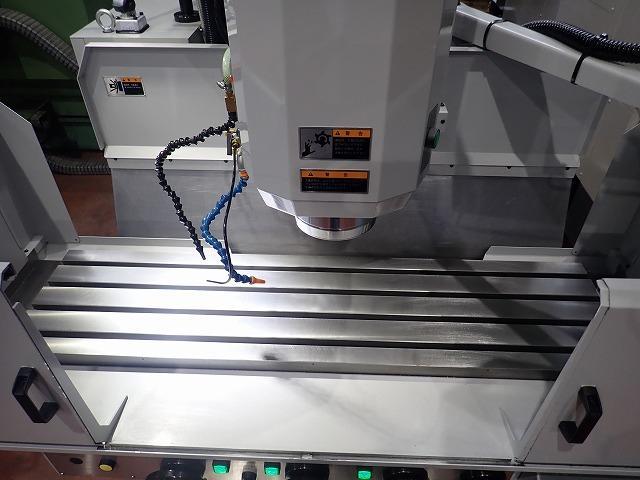

SPECIFICATION	◆Control device: FANUC Oi-MF ◆Control panel: General purpose/Guidance/NC ◆Number of control axes: 3 axes ◆Travel XYZ: 750＊350＊500mm ◆Distance from spindle end to table top (travel): min 115mm / max 615mm ◆Distance from spindle center to column guide surface (travel): 360mm ◆Table work area: 1400＊350mm ◆Table load capacity: Approx. 500kg ◆Distance from floor to table top: 820mm ◆Maximum spindle speed: 6000min-1 ◆Spindle speed change: Automatic (Manual dial setting 21 steps Override 50-120%) ◆Spindle: 70mm ◆Spindle taper hole: 7/24 taper No.40 ◆Tool mounting bolt shape: MAS-I ◆Tool shank shape: BT40 ◆Cutting speed (automatic): 0-6000mm/min＊10-200 % ◆Cutting speed (manual): 0-4000mm/min＊10-200 % ◆Cutting fluid device (tank capacity 60L) ◆Fast forward speed: 6000mm/min ✤If there is a difference between the specifications and the actual product, the actual product will take precedence.
SIZE	2.66＊1.7＊2.295m
WEIGHT	2.9T
LINK URL	https://k-smk.co.jp/en/machines/20302167/
LOCATION	Mie
LOCATION DETAIL
SELLER COMPANY	Shinmeiwa Kiko Co.,Ltd

ADDRESS	3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011
CEO NAME		CONTACT PERSON	Mr.Hashimoto / Ms.Fujio / Ms.Tsuji / Ms.Matsuzaki（Chinese）
TEL1	81-59-361-5505	TEL2
CELLPHONE		FAX	81-59-364-8737
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	New & Used Machine tool,Press, Tools
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	https://k-smk.co.jp/en/	COMPANY TYPE	Used Machine Dealer
