Vertical Machining Center

Access: 265

Print PhotosPrint FAX PAPER

STOCK CODE

20302166
CONTACT SELLER

This product is sold by
Shinmeiwa Kiko Co.,Ltd.

By PHONEBy EMAIL

MACHINE ID

17215

MANUFACTURER

YAMASAKI GIKEN

MODEL

YZ-502SG ATC

YEAR

2019

PRICE

SPECIFICATION

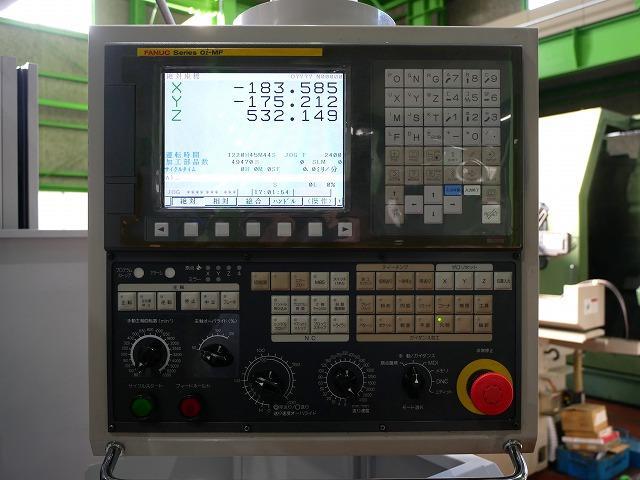

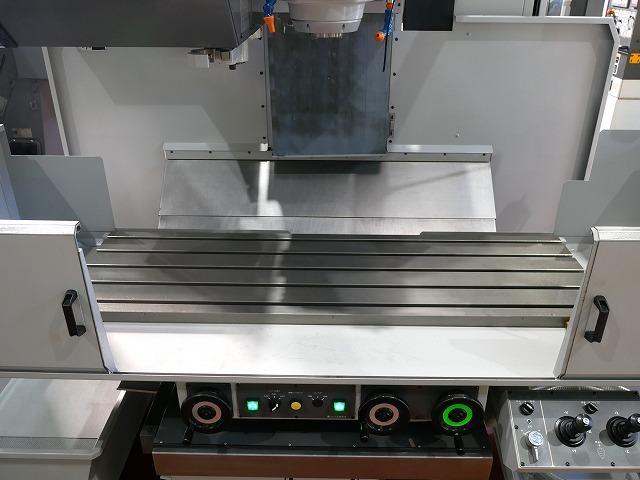

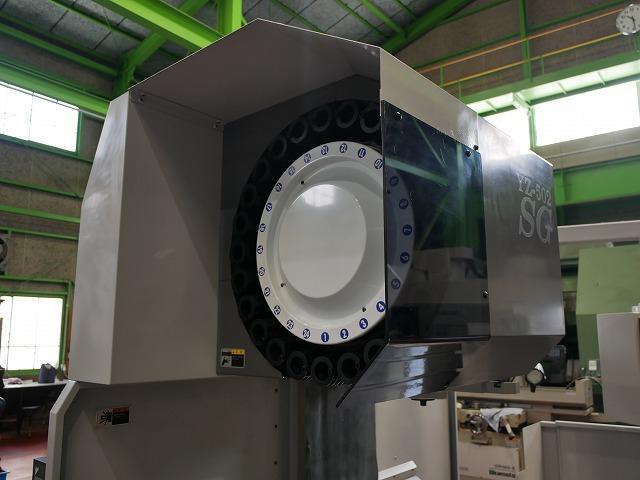

◆Control device: FANUC Oi-MF ◆Control panel: General-purpose guidance function NC program ◆Number of control axes: 3 axes ◆Number of ATC tool storage: 24 ◆Travel: XYZ: 1050＊550＊550 mm ◆Table work area: 1600＊500 mm ◆Distance from spindle end to table top: min 150 mm / max 700 mm ◆Distance from spindle center to column guide surface: 510 mm ◆Distance from floor to table top: 820 mm ◆Maximum spindle speed: 8500 min-1 ◆Spindle speed change: Automatic (Manual dial setting 20 steps Override 50-120%) ◆ Spindle bearing diameter: 70mm ◆ Spindle taper hole: No.40 ◆Two-sided constraint spindle ◆ Tool mounting bolt shape: MAS-I　 ◆ Rapid forward speed (XYZ): 10000mm/min ◆ Cutting speed (automatic): 0-6000mm/min＊10-200% (MAX6000) ◆ Cutting speed (manual): 4-4000mm/min＊10-200% (MAX6000) ◆Cutting fluid device (tank capacity 100L) with chip bucket ✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.

SIZE

3.35*2.27*2.572m

WEIGHT

5.25T

LINK URL

https://k-smk.co.jp/en/machines/20302166/

LOCATION

Mie

LOCATION DETAIL
