O-M

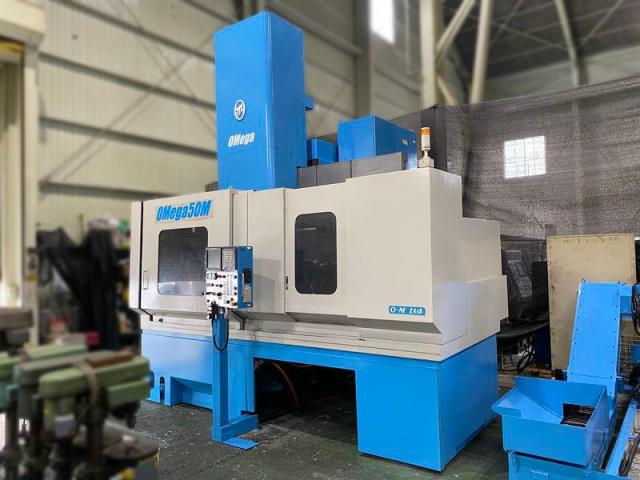

OMEGA 50M

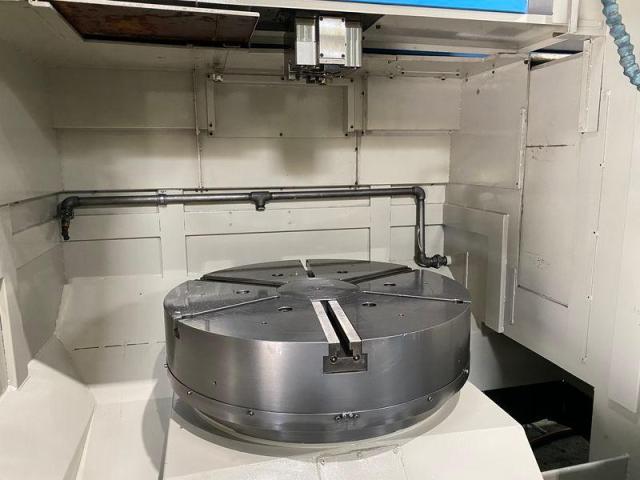

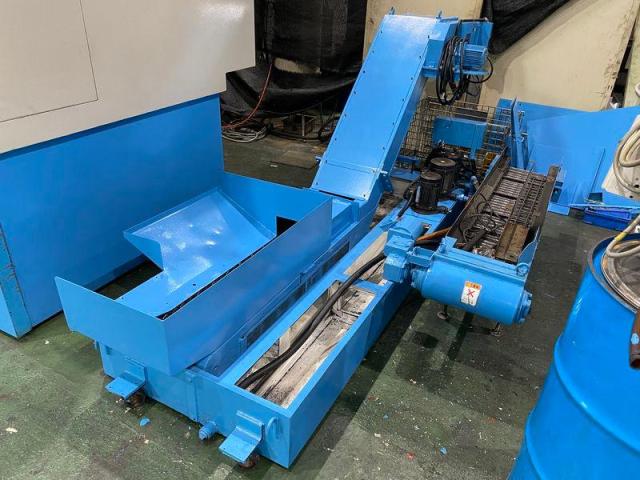

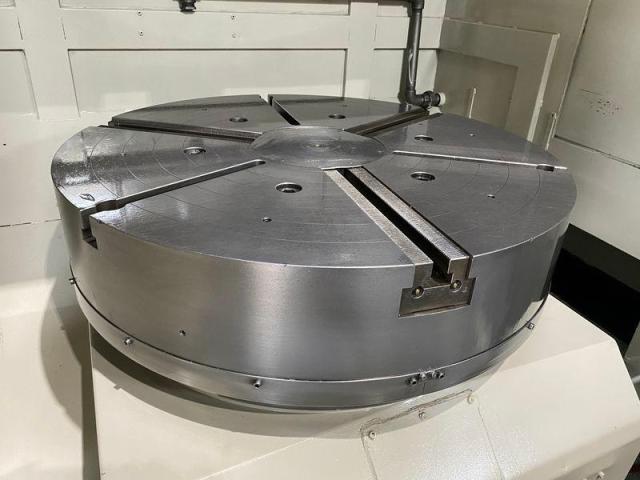

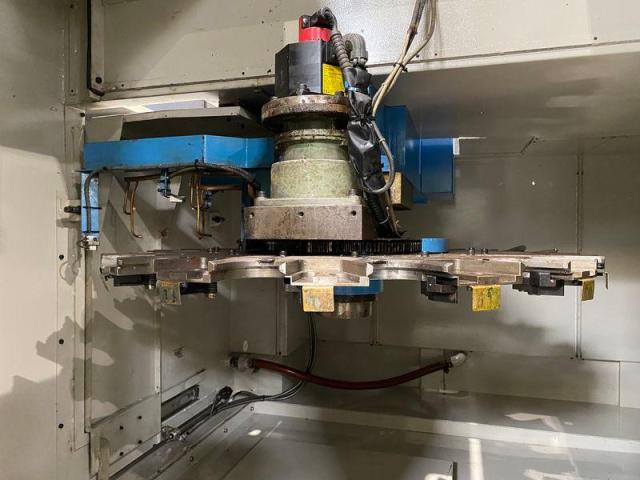

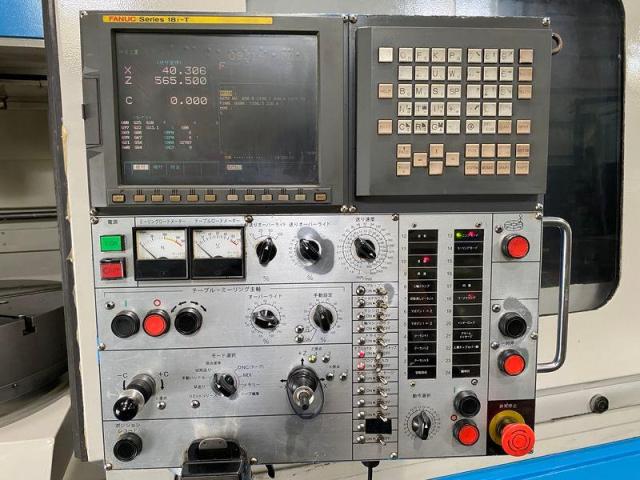

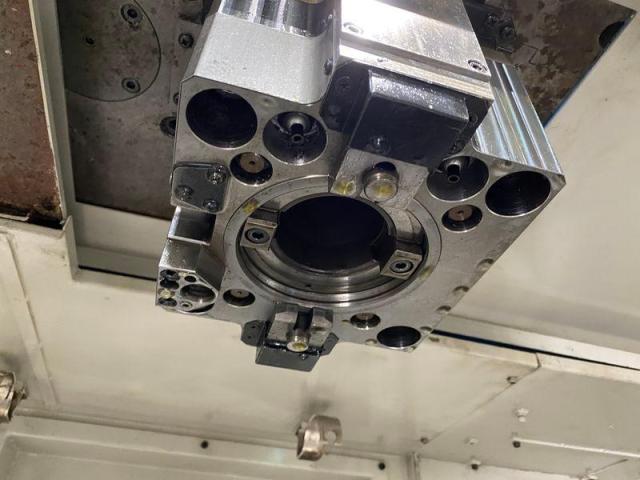

Controller : FANUC-18iT Table diameter : φ915 mm Max. turning dia./turning height.: φ1,000 mm/535mm Max. swing : φ1,250 mm Max. work weight : 1,500 kg Distance from rotating holder surface to table nose : 667 mm Distance from turning holder surface to table nose : 665 mm Max. drill dia. (tool carbide, work material S45C) : 75 mm 　　　　 Cross rail (fixed) * Low position Travel From center of table to right : 1,015mm 　　　 From center of table to left (X axis) : 50 mm 　　　　Turret Up and down (Z axis) : 800 mm Milling spindle end taper : BBT50 (BIG (Plus compatible) Table rotation speed (Low speed range) : 4.0～200 min-1 Spindle speed　Low : 4.0～200 min-1 　　　　　　　 High : 16.0～550 min-1 　　　　　　　 Inching : 4 min-1 Milling spindle rotation speed : 15～1,500 min-1 ATC : 15 stations (Factory setting: 6 # for turning, 8 # for rotation, 1 dummy plate) 　　　　 Max. tool storage length (from mounting surface) : 450 mm Max. tool storage weight : 50 kg (turning) /25 kg (rotating tools) Required floor space : 3,300×3,275 mm　　 Machine height : 4,285 mm Machine weight : 12,000 kg Chip conveyor (rear discharge) φ915mm hydraulic 3-jaw table Tape memory length 160m Interactive automatic programming function for lathes (CAPII) 　　　　 Polar coordinate interpolation Cylindrical interpolation Helical interpolation
