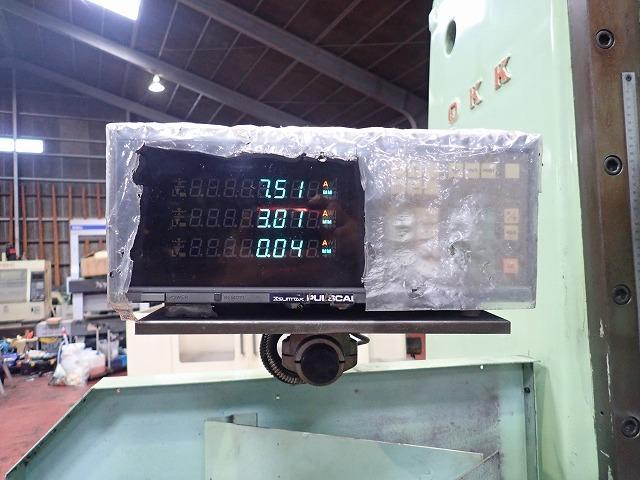

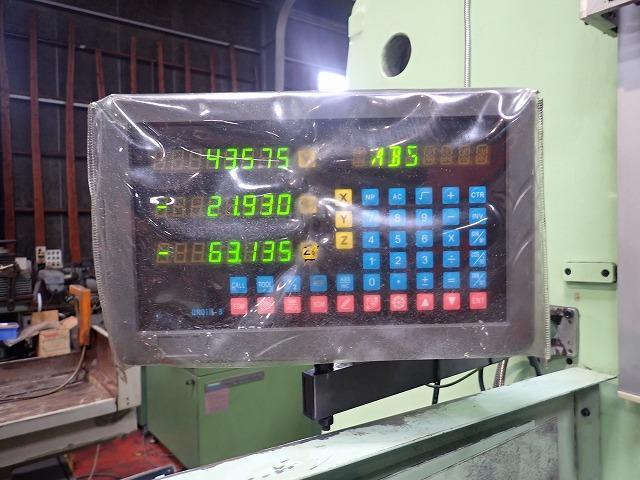

SPECIFICATION | ◆With 3-axis digital
◆Maximum table left/right movement distance: 920mm
◆Maximum table movement distance: 350mm
◆Maximum vertical movement distance of spindle head: 450mm
◆Distance between spindle end and table top: 100 to 550mm
◆Distance between spindle center and column: 410mm
◆Table dimensions: 1650 x 380mm
◆Number of grooves and dimensions of table: 3×18H8
◆ Taper of spindle hole: JIS B-6101 No.50

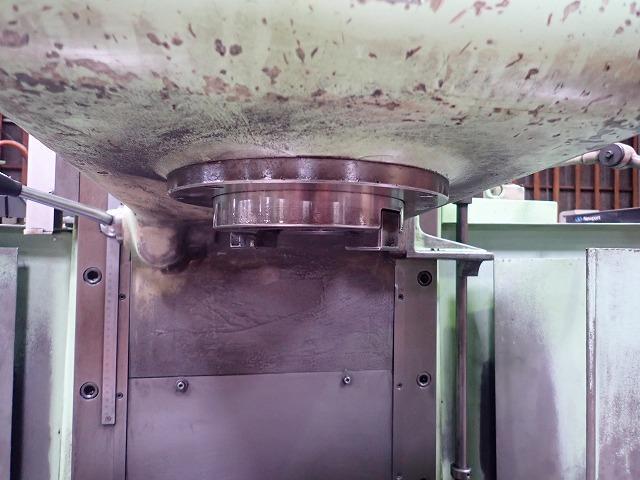

◆Diameter of spindle end: 128.570mm
◆Spindle rotation conversion number: 12
◆Spindle rotation speed: 1600rpm
◆Reverse rotation of spindle: Possible
◆Number of feed speed conversions: 12
◆Table left/right forward/backward feed speed: 60Hz 10~1650, 50Hz 8.5~1400
◆Table left/right front/back fast forward speed: 60Hz 3000, 50Hz 2500
◆Spindle motor output: 4P×7.5KW
◆Feeding motor output: 4P×1.5KW
◆Required installation area: 3085 x 1815mm
◆Net weight (including electric motor): 4200kg
✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product. |
|---|
