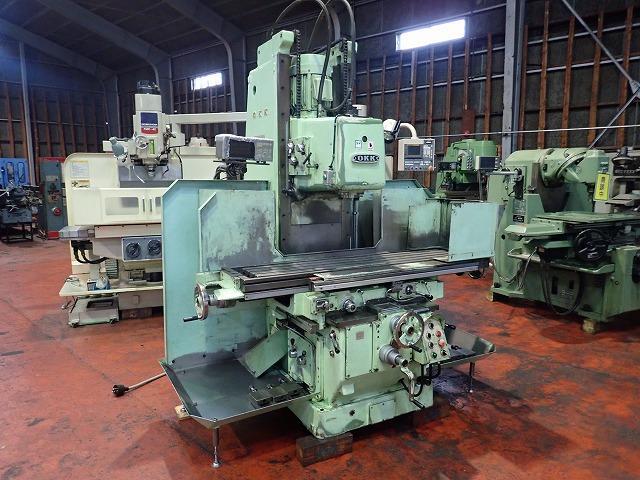

SPECIFICATION | ◆High column specification

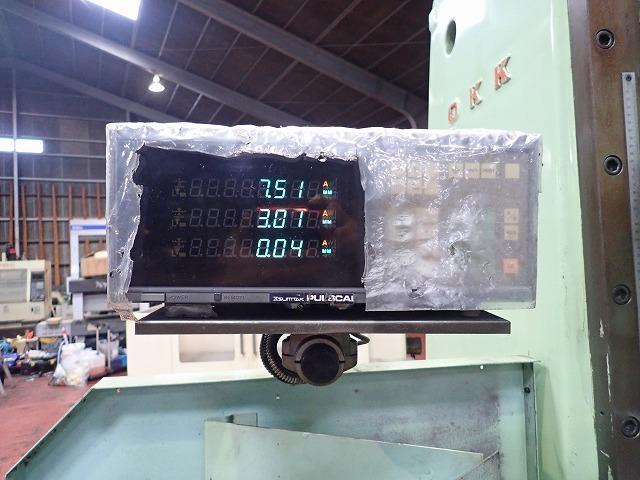

◆With 3-axis digital
◆Maximum table left/right movement distance: 920mm
◆Maximum table movement distance: 300mm
◆Maximum vertical movement distance of spindle head: 400mm
◆Distance between spindle end and table top: 80 to 480mm
◆Distance between spindle center and column: 350mm

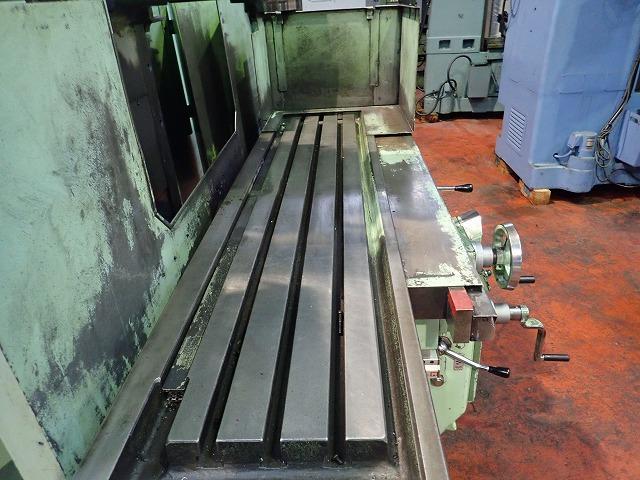

◆Table dimensions: 1650 x 360mm
◆Number of grooves and dimensions of table: 3×18H8
◆ Taper of spindle hole: JIS B-6101 No.50

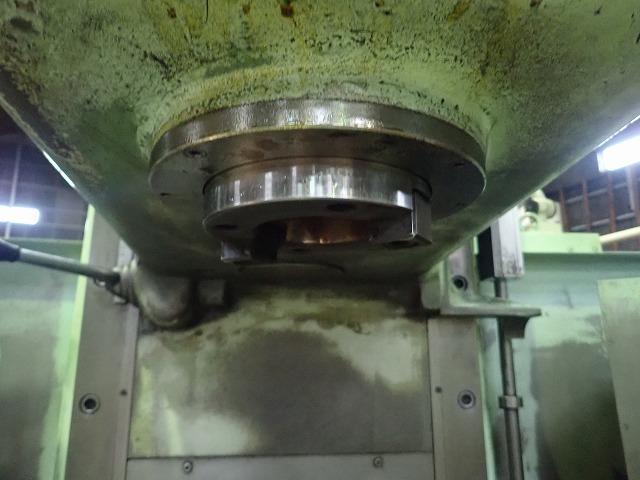

◆Diameter of spindle end: 128.570mm
◆Spindle rotation conversion number: 12

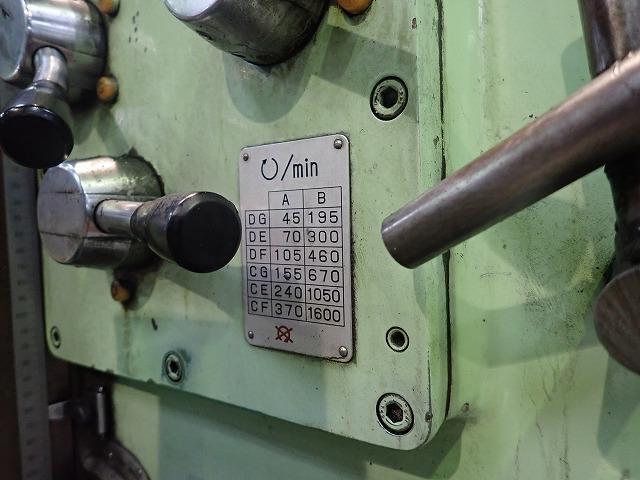

◆Spindle rotation speed: 1600rpm
◆Reverse rotation of spindle: Possible
◆Number of feed speed conversions: 12
◆Table left/right forward/backward feed speed: 60Hz 12~2000, 50Hz 10~1700
◆Table left/right front/back fast forward speed: 60Hz 3000, 50Hz 2500
◆Spindle motor output: 4P×7.5KW
◆Feeding motor output: 4P×1.5KW
◆Required installation area: 3090 x 1830mm
◆Net weight (including electric motor): 3900kg
✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product. |
|---|
