SPECIFICATION | ◆Table work surface size: D580*W200
◆Distance from table top to grinding wheel bottom: 397

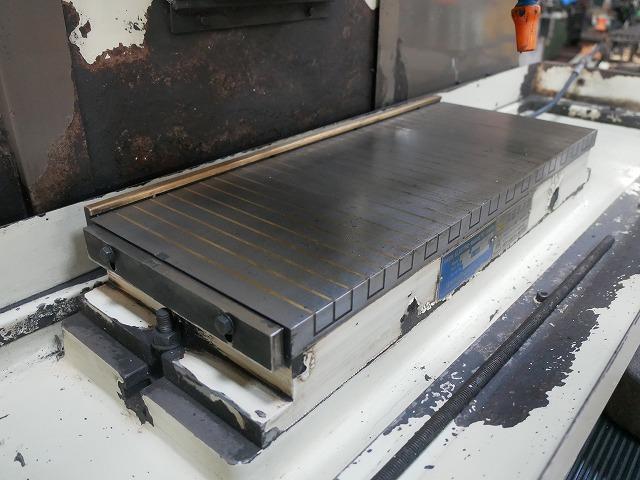

◆Standard chuck dimensions: D500*W200*H70
◆Maximum left/right movement (manual): 600
◆T-slot: W17
◆Left/right feed speed (standard, hydraulic): 1-25m/min
◆Left/right feed handle (1 rotation): 88
◆Maximum front/rear movement: 230
◆Front/rear intermittent feed: 0.5-20 (infinitely variable)
◆Front/rear continuous feed speed: 0.1-0.6m/min
◆Front/rear handle feed (1 rotation): 5
◆Front/rear handle feed (1 scale): 0.02
◆Up/down feed speed (fast forward): approx. 400
◆Up/down handle feed (1 rotation): 0.1
◆Up/down handle feed magnification*1 (1 scale): 0.001
◆Minimum setting unit up and down: 0.001
◆Number of spark outs: 0-9
◆Whetstone dimensions (outer diameter x width x inner diameter): 205*6-25*50.8
◆Whetstone rotation speed: 3000/(50Hz), 3600/(60Hz)
◆For whetstone shaft: 2.2-2
◆For hydraulic pump: 0.75-4
◆For up and down feed: 0.1-2
◆For dust collection: 0.4-2
◆Power capacity: 7
✤If there is a difference between the specifications and the actual product, the actual product will take precedence. |
|---|
