HERMLE AG

C42U

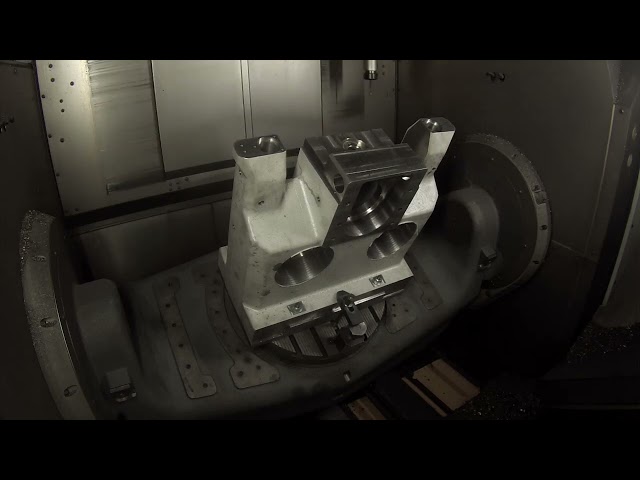

Vertical 5-Axis Machining Centre with 6-station Pallet pool Hermle C42U Year 2013/2014 Heidenhain iTNC 530 CNC 2-Axis NC Rotary / Swivelling Table: Table rotary axis: C 360° Table swivelling axis: A +130° / -130° Number of pallets: 6 pallets in the system Pallet clamping surface: 400 x 400 mm Pallet loading capacity: max. 450 kg Longitudinal travel: X 800 mm Cross travel: Y 800 mm Vertical travel: Z 550 mm Rapids up to: X/Y/Z 45000 mm/min. Rapids: C-Axis 65 rpm Rapids: A-Axis 25 rpm Spindle motor rating: 10 / 20 KW Spindle speeds: 20 - 18000 rpm Spindle torque: max. 180 Nm Tool magazine and automatic tool changer: Tool magazine positions: 85 (42 ATC + 43 additional magazine) Tool taper: HSK-A63 Tool diameter with/without adjacent tools: max. 90 / 125 mm Tool length: max. 300 mm Tool weight: max. 8 kg Chip to chip time: 4.5 sec. Equipped with: Full 5-Axis simeltaneous milling with 2-Axis NC-Rotary Table. 6 station pallet pool and automatic pallet changer. 85 station tool magazine amd automatic tool changer. Full guarding. Coolant unit. High pressure coolant through the spindle 80 bar. Paper band filter. BLUM Laser tool measurement and tool breakage control. Measuring probe. Direct measurement linear scales X,Y,Z. Chip conveyor. Machine is very well looked after. Machine holding very tight tolerances. Spindle was replaced with a new spindle in 2019. The new spindle has very low running hours. Proposal Number MV-6375

EXW
