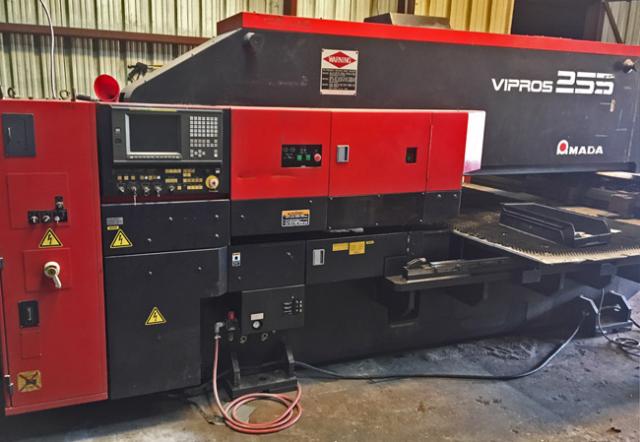

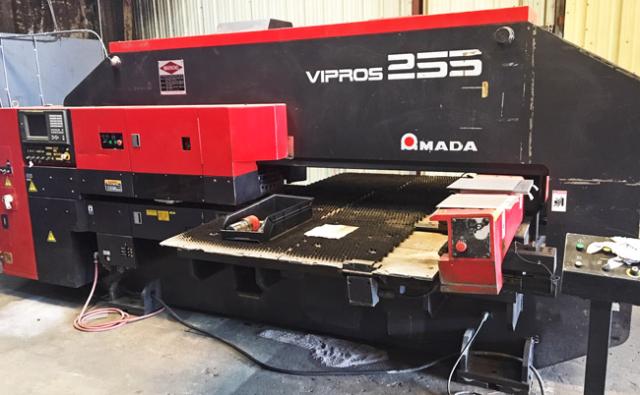

SPECIFICATION | Maximum Rated Tonnage: ................. 20 Tons
Max Sheet Size with Reposition: ....... 50" x 100"
Axis Travels: ......................... 50" x 50"
Maximum Thickness: .................... 250"
Turret Configuration: ................. Thick
Number of Stations: ................... 31
Max. Ram Stoke: ....................... 1.575"
X Axis Linear Positioning Speeds: ...... 2640 IPM
Y Axis Linear Positioning Speeds: ...... 1968 IPM
Max Hole Diameter: ..................... 3.5"
Control
Fanuc 18-PC
Equipped With:
31 Stations
Thick Style Tooling
2 Auto Index Tools.
Sheet Reposition
Brush Table
Dimensions (Approximate) L-R x F-B x H 196" x 101" x 86"
Weight (Approximate) ........................... 22,000 LBS |
|---|
