CNC Tool Grinding Machine
Access: 8
STOCK CODE | 90164 | |||
|---|---|---|---|---|
MACHINE ID | 18158 | |||
MANUFACTURER | ANCA | |||
MODEL | FX5 Linear | |||
YEAR | 2016 | |||
PRICE | ||||

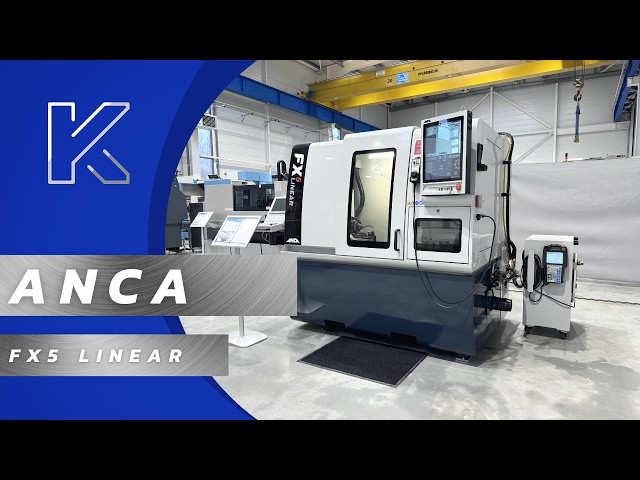

SPECIFICATION | CNC Tool grinding machine ANCA FX5 Linear TECHNICAL CHARACTERISTICS: Year of manufacturing: 2016 Software installed: RN33.1 Update 29.00 Colour touch screen: 19 ["] Stroke X axis: 384 [mm] Resolution X axis: 0.0001 [mm] Stroke Y axis: 317 [mm] Resolution Y axis: 0.0001 [mm] Stroke Z axis: 217 [mm] Resolution Z axis: 0.0001 [mm] Stroke A axis: 360 [°] Stroke C axis: 230 [°] Resolution C axis: 0.0001 [°] Max. grinding lenght: 200 [mm] Max. grinding diameter: 200 [mm] Grinding spindle attachment: HSK-40F Max. grinding wheel speed: 10000 [rpm] Grinding spindle motor power: 12 [kW] Max. diameter grinding wheel: 203 [mm] Max. part weight in part holder headstock: 20 [Kg] Supply voltage: 400 [V] Total power required: 16 [kVA] Machine dimensions: 1930 x 1800 x 1810 [mm] Weight: 4500 [Kg] EQUIPMENT INCLUDED: x1 FANUC 6-axis tool-loading robot, model LR Mate 200iD x2 pallets: 221 stations per pallet – Ø12.00 mm x1 pallet ‘Teach pallet’ AT996-0-00-0401 x1 ANCA W25 collet chuck x1 set of linear glass scales on the X and Y axes x1 RENISHAW part probe x1 remote electronic handwheel x1 fire protection system - to be inspected by the buyer through a certified organization x1 3-color status light x1 set of transport brackets Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine for sharpening tools, milling cutters, taps and drills. Machine similar to brands such as Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter. See also cylindrical or surface grinding machines, lathes, machining centres and milling machines. | |||
CONDITION | Fully functional | |||
SIZE | 1930 x 1800 x 1810 [mm] | |||
WEIGHT | 4500 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/260/anca-fx5-linear/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
