CNC Surface Grinder
Access: 228
STOCK CODE | 90136 | |||
|---|---|---|---|---|
MACHINE ID | 17454 | |||
MANUFACTURER | BLOHM | |||
MODEL | Planomat 616 HP | |||
YEAR | 2015 | |||
PRICE | ||||

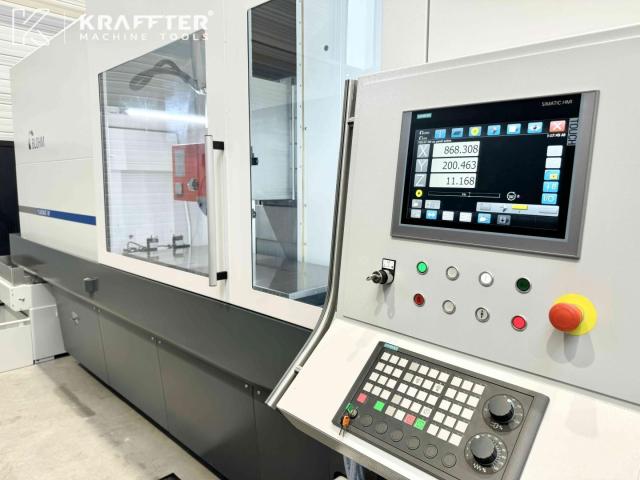

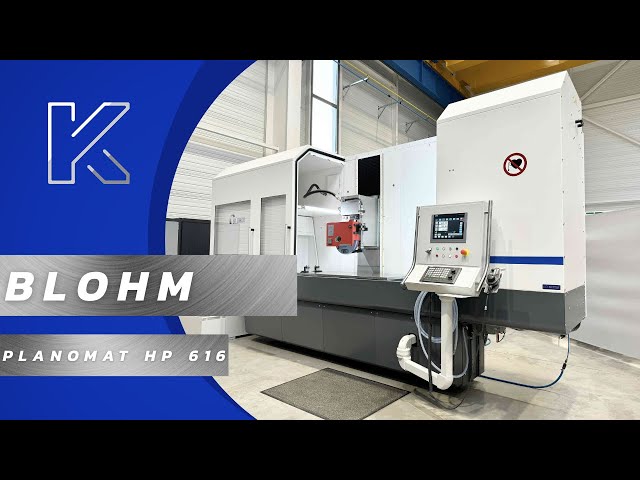

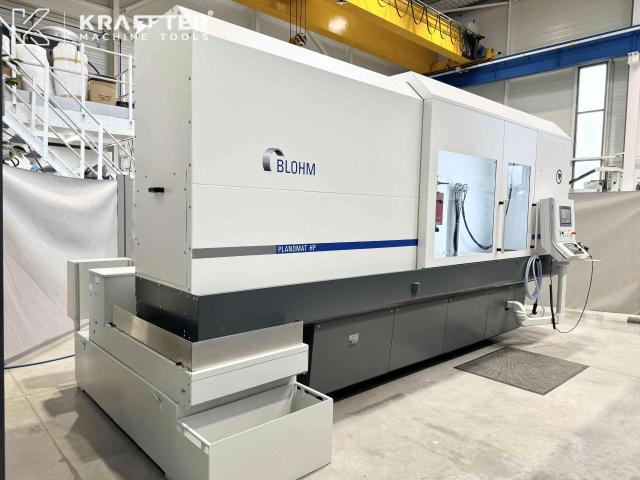

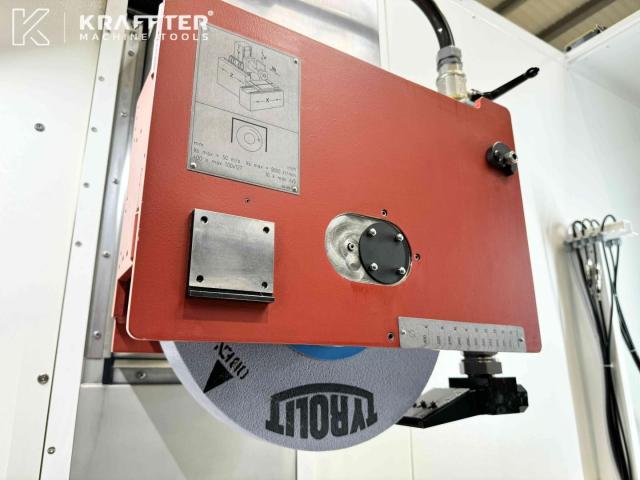

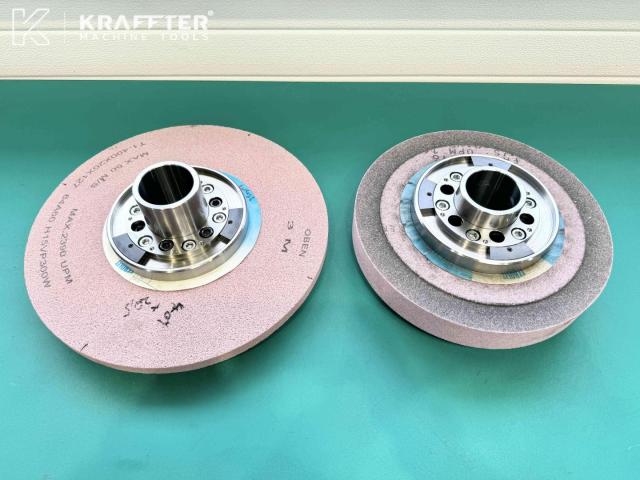

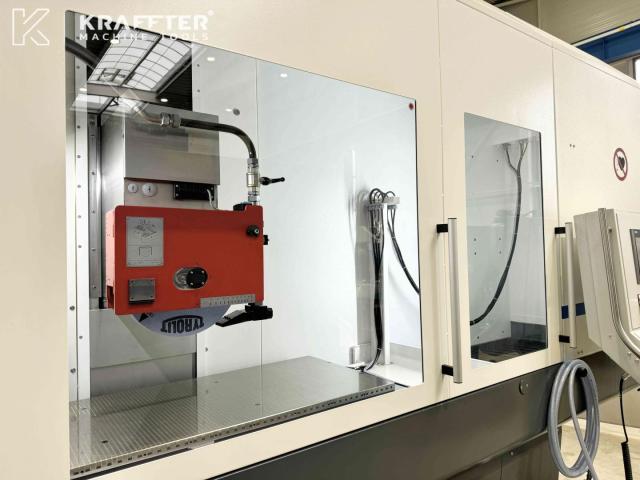

SPECIFICATION | CNC surface grinder BLOHM Planomat 616 HP TECHNICAL CHARACTERISTICS : Year of manufacturing : 2015 CNC control : SIEMENS 840D SL Maximum grinding lenght x width : 1600 x 600 [mm] Stroke X axis (table movement) : 1700 [mm] Min. Stroke speed X axis : 30 [mm/min] Max. Stroke speed X axis : 30000 [mm/min] Resolution X axis : 0.001 [mm] Stroke Y axis (vertical movement) : 800 [mm] Min. Stroke speed Y axis : 4 [mm/min] Max. Stroke speed Y axis : 6000 [mm/min] Resolution Y axis : 0.001 [mm] Course axe Z (transverse movement) : 560 [mm] Min. Stroke speed Z axis : 4 [mm/min] Max. Stroke speed Z axis : 6000 [mm/min] Resolution Z axis : 0.001 [mm] Min. distance spindle nose / table : 150 [mm] Max. distance spindle nose / table : 950 [mm] Grinding spindle motor power : 15 [kW] Max. diameter grinding wheel : 400 [mm] Max. grinding wheel width : 30 [mm] Grinding wheel bore : 127 [mm] Dimensions of magnetic plate : 1600 x 600 [mm] Machine dimensions : 5450 x 3560 x 2800 [mm] Supply voltage : 400 [V] Number of hours under power: 6840 [h] Weight : 8000 [Kg] EQUIPMENT INCLUDED: x1 coolant tank + paper filtration system DGS type SBF150/650 x1 oil mist extractor (2000 m3/h) SARA type UC 2 SD/S3 x1 1600*600 [mm] electromagnetic clamping plate SAV type B-243.70 - 1600 x 600 - 13 x1 lifting dressing device for peripheral, side and profile dressing x5 grinding wheel flanges x15 grinding wheels Ø400 [mm] x1 wheel balancing bench x1 set of manuals + CD Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to the brands okamoto , jones shipman , jung , favretto , studer see also cylindrical grinder , lathe , machining centre , milling machine | |||
CONDITION | Fully functional | |||
SIZE | 5450 x 3560 x 2800 [mm] | |||
WEIGHT | 8000 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/229/blohm-planomat-hp-616/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
SELLER PROFILE
Kraffter Machine Tools
| ADDRESS | 137 ZA Le Jasmin Nord, Saint-Genix-les-Villages, Auvergne-Rhône-Alpes, France, 73240 | ||
|---|---|---|---|
| CEO NAME | LECRONT Kévin | CONTACT PERSON | LECRONT Kévin |
| TEL1 | +33486117777 | TEL2 | |
| CELLPHONE | FAX | ||
| BUSINESS HOURS | HOLIDAY | ||
| COMPANY DESCRIPTION | Kraffter Machine Tools® SAS is a young, agile and dynamic company, specialised in the trading, purchase, reconditioning and resale of used machine tools worldwide. Located near Lyon in Auvergne Rhône-Alpes since 2016, on a strategic axis between Switzerland, Germany and Italy, we benefit from an international expertise with a network of quality customers and suppliers combining a high very high standard of technical competence. We buy and sell all types of CNC and conventional machine tools for precision mechanics: machining centres, lathes, surface and cylindrical grinding machines, sliding headstock lathes, sharpening machines, universal tool grinders, milling machines, drilling machines, bandsaws, etc… Our 1100 m2 facility, located on a 4500 m² enclosed site, includes a repair and reconditioning workshop, as well as a storage and exhibition area. | ||
| INQIRY FORM | Contact By Email | MACHINE SPECIALTY | Machine Tools |
| SITE URL | COMPANY TYPE | Used Machine Dealer | |
