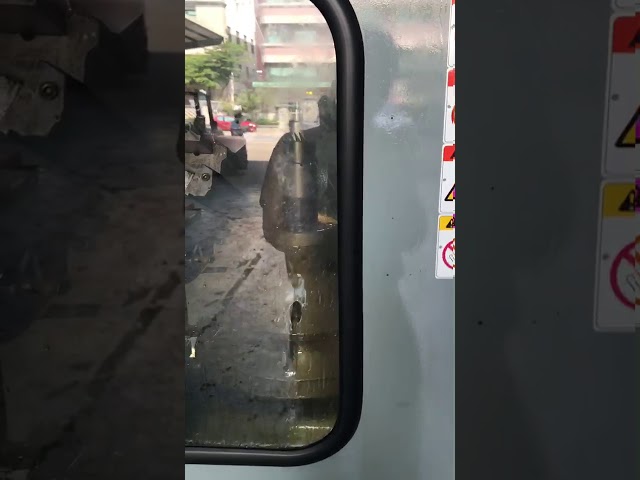

KS-300-CNC-5
Germany-made Bosch rexroth MTX-micro type
High-level five-axis computer system
with KASHIFUJI machine body
Max Cutting Dia 300φ
max module8
max travel of cutter saddle 300
max cutting tilt angle±45°,
The number of cutting teeth 4~1023
the maximum cutting lead is 45000mm
Center distance between Hob&Table 20~280
Table dia 300
Table hole 82
Max Hob size 150φ×180L
standard hob dia 40φ
Taper of spindle nose NT45
Hob travel distance130
Hob rpm 400rpm
Max worktable rpm 40rpm
NC5axis
table rotation
feed up/down & feed back/forth
hob head tilting
Main motor 15kw
Floor area 3390×3010mm
weight 8500kgs
cutting function：
1. one auto cycle
2. two auto cycle
3. Crowning cutting
4. Inclined cutting
5. step cutting
6. worm cutting
This is Ryokuta Machinery from Taiwan. We have been in used machine tools for 40 years. Our stock of 95% machines are imported from Japan and exported Taiwanese-made machines to Japan and Korea.
