Age (Approximate) ........ 2015
Turning Diameter: ......... 13.78"/8.07" X Axis
Turning Length: ........... 22.63"/25.59 Z Axis
Spindle Bore: ............. 3.07"
Spindle Nose: ............. 3J Collet
Spindle Speeds: ........... 35-3500 RPM
Spindle Horse Power: ...... 20 HP
Number of Turret Positions: 12
High Pressure Coolant: .... 100 PSI
Control:
Fanuc OiTD Equipped with G-Code
and manual Oi programming
Color Graphics
USB
Ethernet
Equipped With:

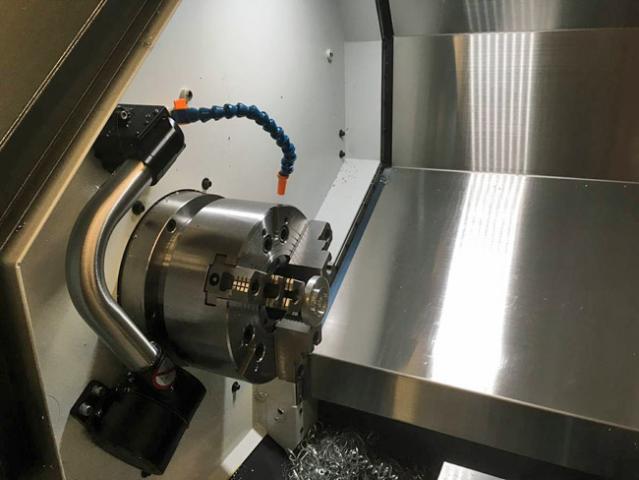

10" Big Bore Hydraulic Chuck
Royal 3J Collet Nose
Programable Tail Stock

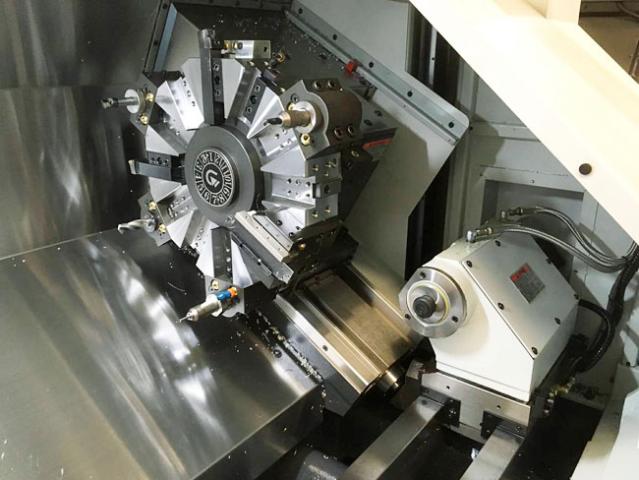

12 Position High Speed Turret
20 HP High Torque Dual Wound Spindle Motor
100 PSI Coolant System
Oil Skimmer
4 HP AC Servo X & Y Motors "with Huge Ball Screws"

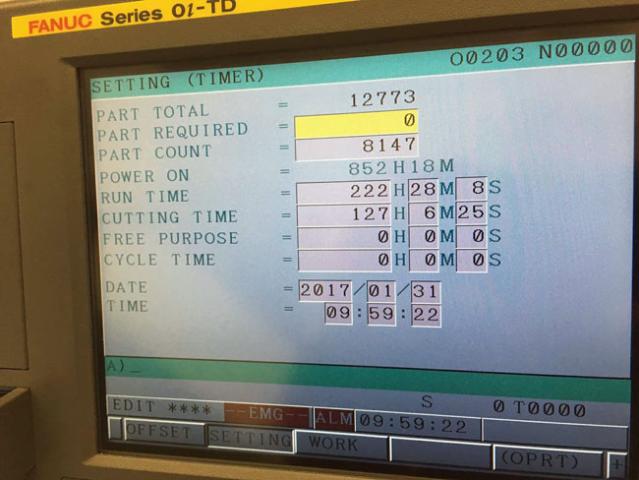

The machine has less than 130 Cutting Hours.
