Turning diameter 630 mm
Turning length 2850 mm

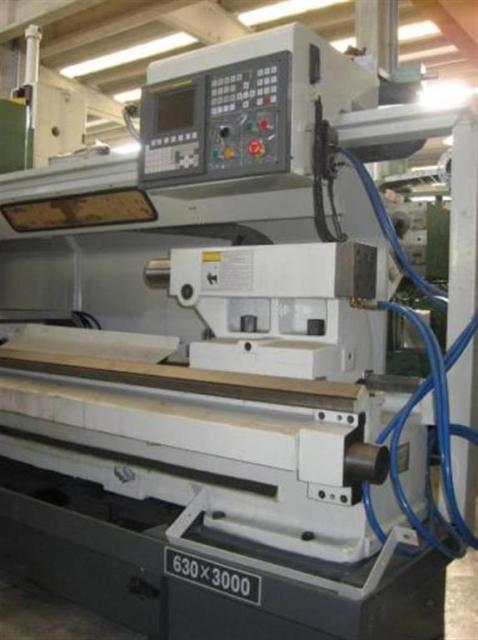

Control Fanuc 0i-mate MGI
Swing over carriage 350 mm
Bed width 550 mm
Spindle nose D11 / 1: 20
Spindle bore 104 mm
Spindle speeds: 17 to 1000 U / min
Gear stages automatic. 4-stage
Rapid traverse in the X and Z directions 4/8 m / min
Tailstock MK 5 Morse
Tailstock: Quill 200 mm
Quill diameter 100 mm
Workpiece accuracy 6-7 ITF
x-axis travel 320 mm
z-axis travel 3000 mm
Feed size 315 mm
Dimensions L x W x H 5200 x 1900 x 1900 mm
Machine weight 6 t
Drive power 11 kW
