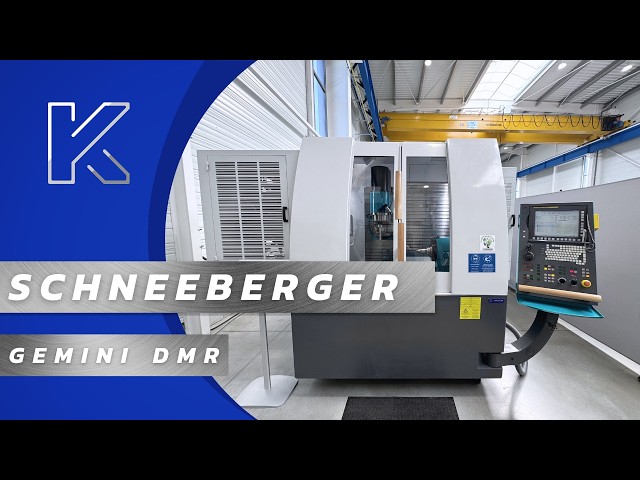

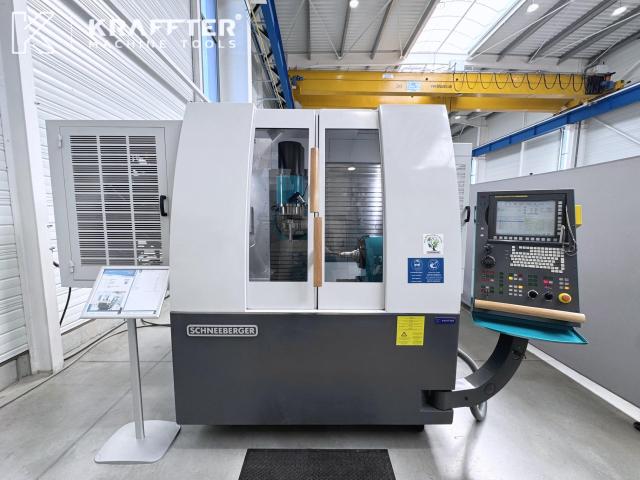

CNC Tool grinder SCHNEEBERGER Gemini DMR
Access: 4
STOCK CODE | 90173 | |||
|---|---|---|---|---|
MACHINE ID | 19945 | |||
MANUFACTURER | SCHNEEBERGER | |||
MODEL | Gemini DMR | |||
YEAR | 2014 | |||
PRICE | ||||

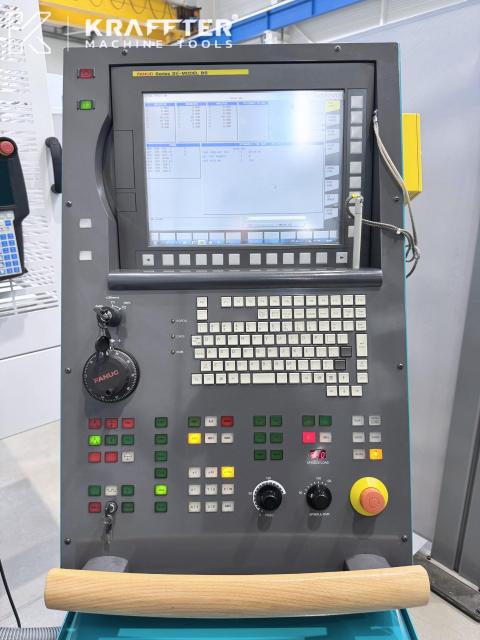

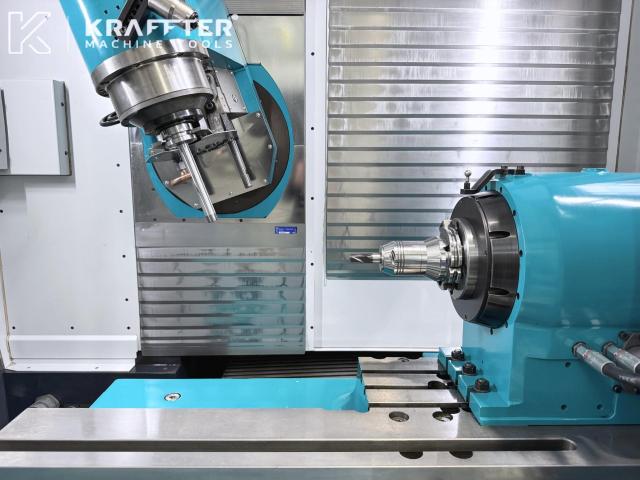

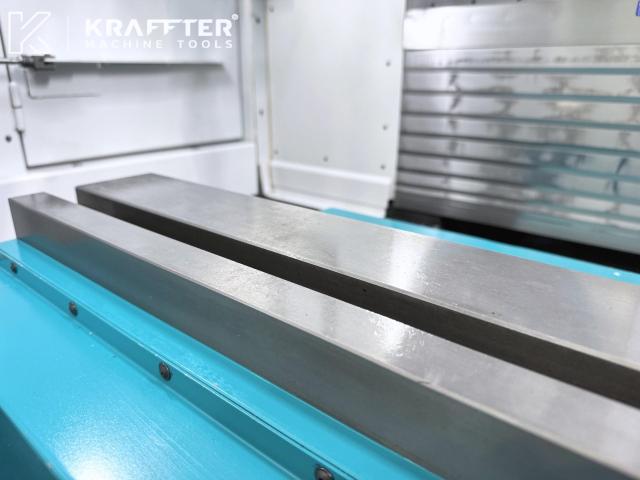

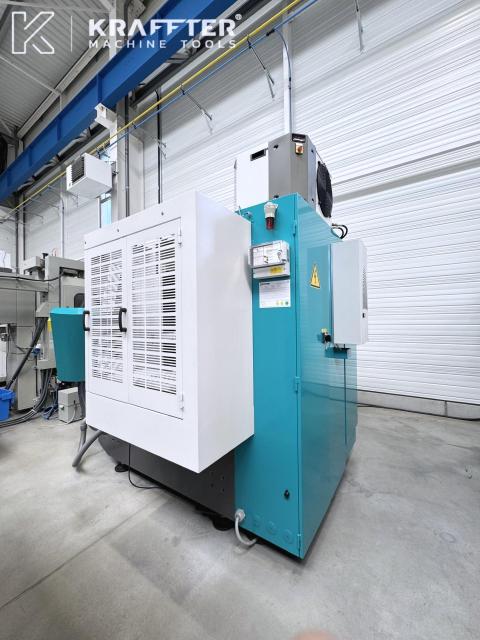

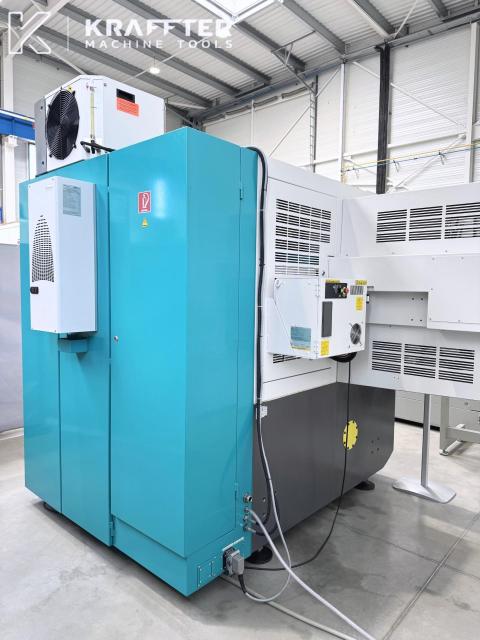

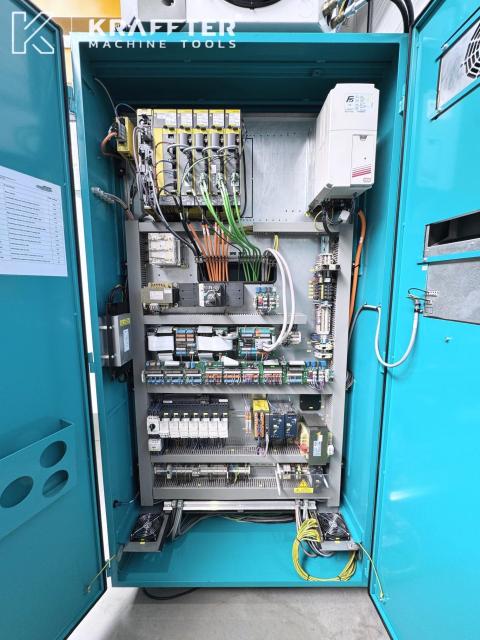

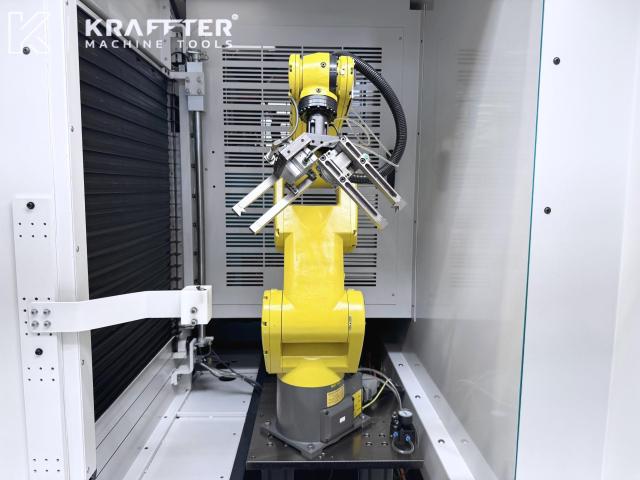

SPECIFICATION | CNC Tool grinding machine SCHNEEBERGER Gemini DMR TECHNICAL CHARACTERISTICS: Year of manufacturing: 2014 CNC control: FANUC 31i B5 Software installed: Quinto Qg1 Colour touchscreen: Yes Number of axes: 5 Stroke X axis: 380 [mm] Max. Stroke speed X axis: 20000 [mm/min] Resolution X axis: 0.0001 [mm] Stroke Y axis: 300 [mm] Max. Stroke speed Y axis: 5000 [mm/min] Resolution Y axis: 0.0001 [mm] Stroke Z axis: 280 [mm] Max. Stroke speed Z axis: 20000 [mm/min] Resolution Z axis: 0.0001 [mm] Table length: 500 [mm] Table width: 330 [mm] Grinding spindle attachment: HSK-50 Max. grinding wheel speed: 10000 [rpm] Grinding spindle motor power: 14 [kW] Max. diameter grinding wheel: 250 [mm] Internal workpiece spindle nose: ISO 50 Number of running hours: 12340 [h] Supply voltage: 400 [V] Rated current: 63 [A] Weight: 8100 [Kg] EQUIPMENT INCLUDED: x1 8-position grinding wheel changer x8 coolant supports x1 tool probe x1 FANUC LR Mate 200iC 5L 6-axis tool-loading robot x1 set of robot grippers x1 pallet for robotic tool loading/unloading x3 HEIDENHAIN linear scales on the X, Y and Z axes x1 electrical cabinet air-conditioning unit x1 spindle chiller x1 fire suppression system (to be inspected by the buyer through a qualified organization) x1 set of 4 lifting brackets x1 set of technical manuals x1 parameter backup on USB flash drive *The SCHUNK collet holder and the 2 grinding wheel holders shown in the photos are not included Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine for sharpening/grinding tools such as milling cutters, taps and drills. Machines similar to the following brands: Blohm, ELB, Ewag, Favretto, Fenix, GER, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer and Walter. Also consider cylindrical and surface grinding machines, lathes, machining centres and milling machines. | |||
CONDITION | Fully functional | |||
WEIGHT | 8100 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/269/schneeberger-gemini-dmr/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
