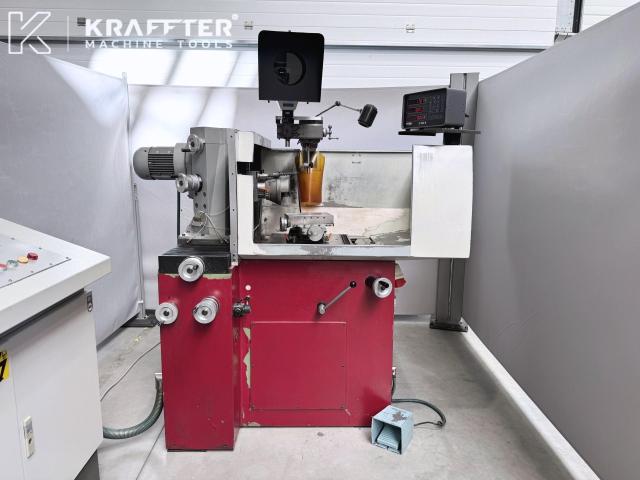

SPECIFICATION | Tool grinding machine EWAG RS15
TECHNICAL CHARACTERISTICS:
Stroke X axis: 490 [mm]
Stroke Y axis: 130 [mm]
Stroke Z axis: 115 [mm]
Grinding spindle motor power: 2.2 [kW]
B axis swivelling stroke: 260 [°]
Workpiece spindle nose: HSK 63
Variable power feeding: Yes

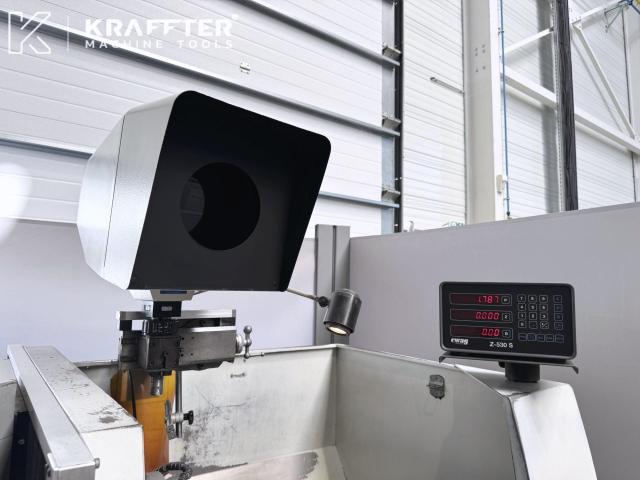

Digital read out: RSF-Elektronik
Number of axes Digital Read Out: 3

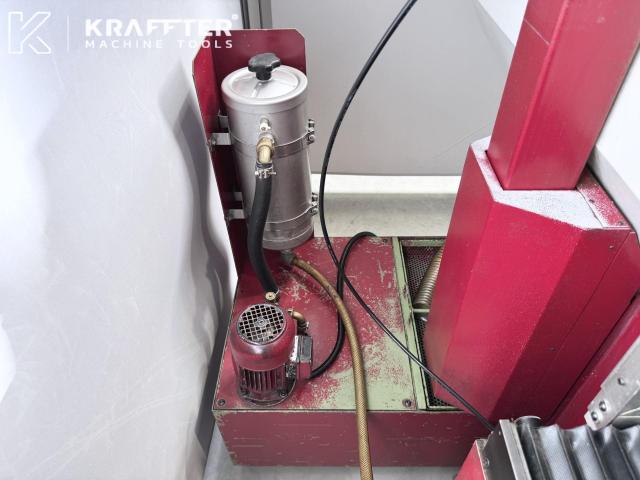

Lubrication tank capacity: 100 [l]
Centralized lubrication: Yes
Supply voltage: 400 [V]
Dimensions: 1700 x 1750 x 1840 [mm]
Weight: 1850 [Kg]
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
Machine for sharpening tools, milling cutters, taps and drills.
Machine similar to brands Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter; also consider cylindrical or surface grinding machines, lathes, machining centres and milling machines.
|
|---|
