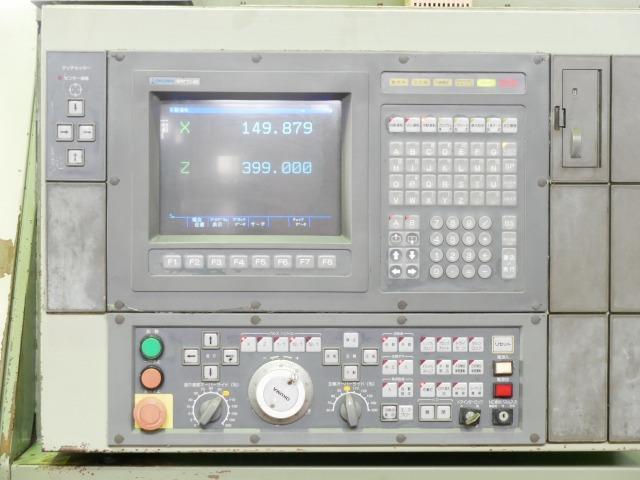

SPECIFICATION | ◆Control Unit: OSP-7000
◆Number of Control Axes: 2
◆Swing over Bed (mm): Φ530
◆Swing over Carriage (mm): Φ530
◆Swing over Cross Slide (mm): Φ340
◆Distance between Centers (mm): 520
◆Max. Machining Diameter * Length (mm * mm): Φ340 * 500
◆Spindle Diameter (mm): Φ100
◆Spindle Nose: JIS A2-6 (JIS A2-8)
◆Taper Bore (mm): Φ70 * 1/10 (Φ90 * 1/10)
◆Through-hole Diameter (mm): Φ62
◆Spindle Speed (min⁻¹, rpm): 45–4500
◆Carriage (Z-axis) Travel (mm): 520
◆Cross Slide (X-axis) Travel (mm): 260

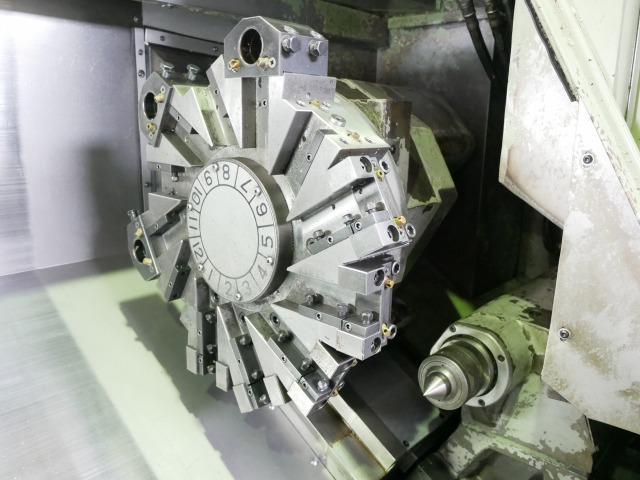

◆Turret Type: V-type
◆Number of Tools: 12
◆Tailstock Quill Diameter (mm): Φ90
◆Tailstock Quill Taper Bore: MT No. 5
◆Tailstock Quill Travel (mm): 120
◆Machine Height (mm): 1745
◆Required Floor Space (mm * mm): 1680 * 2815
◆Net Weight (kg): 4,780

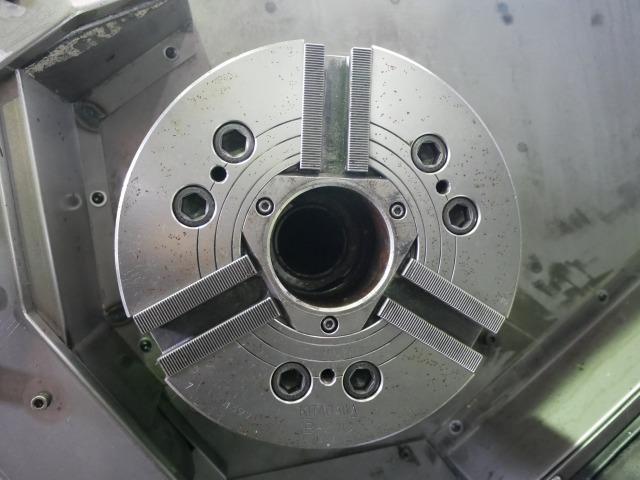

◆10-inch Hollow Chuck
◆Touch Setter

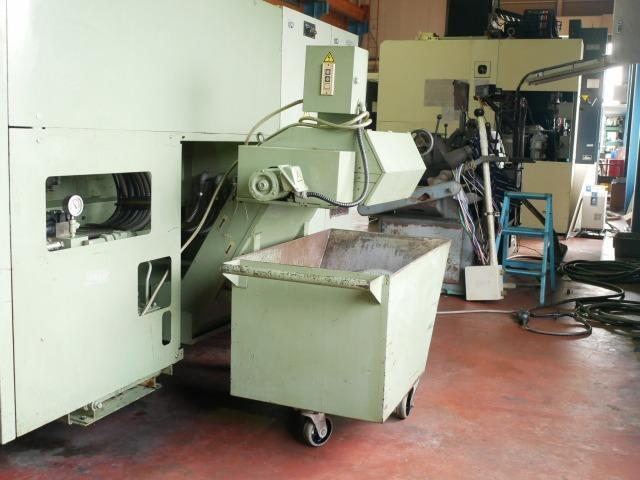

◆Rear-discharge Chip Conveyor
◆No Conversational Programming Function
✤In the event of any discrepancy between the specifications and the actual machine, the actual machine takes precedence. |
|---|
