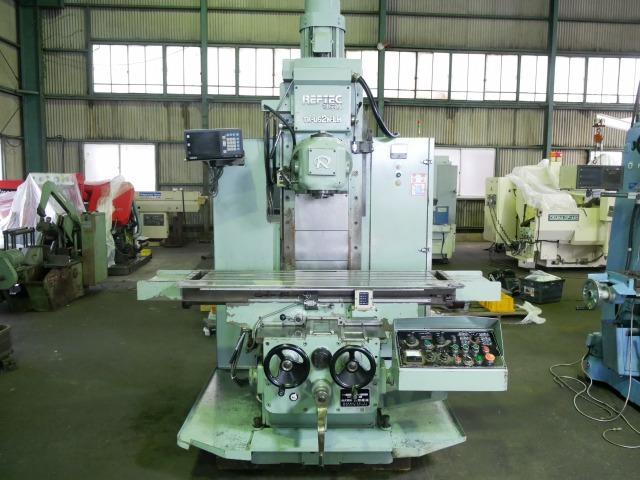

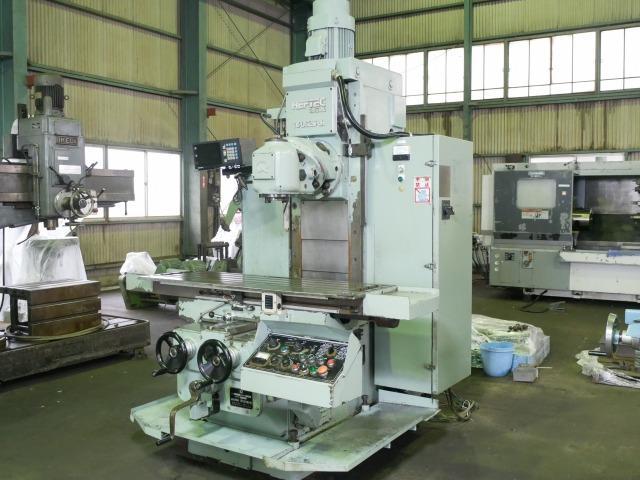

TAKEDA MACHINE TOOLS US2N-LH #2 Bed-type Vertical Milling Machine for Sale [19664] | USED MACHINERY.BZ

HOME
Select Machine Name
Milling Machines
#2 Bed-type Vertical Milling Machine

#2 Bed-type Vertical Milling Machine

Access: 4

STOCK CODE	20402037			CONTACT SELLER This product is sold by Shinmeiwa Kiko Co.,Ltd. By PHONE By EMAIL
MACHINE ID	19664
MANUFACTURER	TAKEDA MACHINE TOOLS
MODEL	US2N-LH
YEAR	1992
PRICE
SPECIFICATION	◆ Table size: 1350 * 320 mm ◆ Table T-slots (Qty * Width): 4 slots * 18 mm H8 (75 mm pitch) ◆ Table longitudinal travel (X): 850 mm ◆ Table cross travel (Y): 420 mm ◆ Spindle head vertical travel (Z): 400 mm ◆ Distance from spindle nose to table surface: (Vertical type) 5–405 mm ◆ Distance from spindle nose to column: (Horizontal type) 455 mm ◆ Spindle taper: JIS No. 50 ◆ Spindle speed change (Manual): 2-speed range (High/Low) with stepless speed variation ◆ Spindle speed: 35–1350 rpm ◆ Spindle motor: 5.5 kW * 4P ◆ Maximum load capacity: 300 kg ◆ Total machine weight: 3500 kg ◆ Required installation area: 2650 * 1935 mm ✤ In the event of any discrepancy between the specifications and the actual machine, the actual machine takes precedence.
WEIGHT	3.5
LINK URL	https://k-smk.co.jp/en/machines/20402037/
LOCATION	Mie
LOCATION DETAIL
SELLER COMPANY	Shinmeiwa Kiko Co.,Ltd

ADDRESS	3-5, Higashi Mochibukucho Yokkaichi City, Mie-pref, Mie, Japan, 510-8011
CEO NAME		CONTACT PERSON	Mr.Hashimoto / Ms.Tsuji / Ms.Matsuzaki（Chinese）/ Ms.Fujita
TEL1	81-59-361-5505	TEL2
CELLPHONE		FAX	81-59-364-8737
BUSINESS HOURS		HOLIDAY
COMPANY DESCRIPTION	New & Used Machine tool,Press, Tools
INQIRY FORM	Contact By Email	MACHINE SPECIALTY	Machine Tools,Measuring / Testing,Presses,Sheet Metal
SITE URL	https://k-smk.co.jp/en/	COMPANY TYPE	Used Machine Dealer
