SPECIFICATION | Year: 2022

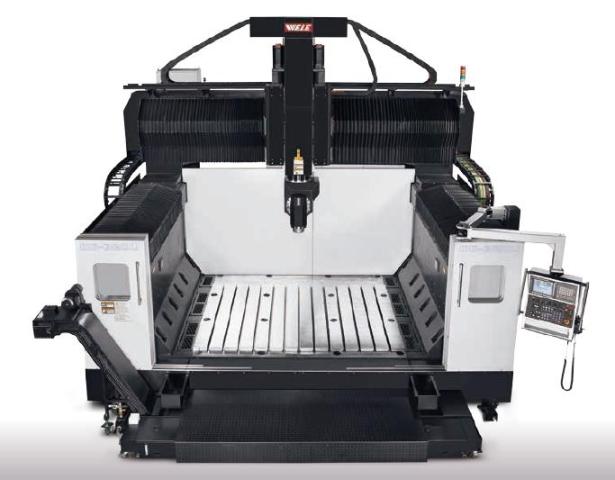

Model: DG-320U5X
Controller: Heidenhain 640 iTNC (15.1” LCD)
With Kinematics Opt. function
X/YU/Z axis travel: 3,000/2,000/1,100mm
Dist. between columns: 3,800mm
Max. job width: 3,650mm
Spindle nose to table surface: 0-1,100mm (when A=0 degree)
Spindle centre to table surface: 220-1320mm (when A-=90 degree)
Table size: 2,800x2,000mm
Table loading: 7,500kg/m2
German Cytec S8 A/C head:
Spindle speed: 18,000rpm (Built-in driven)
Spindle power: 18/23kw, 56/72Nm
A axis: ±115 degree/0.0001 indexing
C axis: ±360 degree/0.0001 indexing
HSK-A63 / 24ATC
X/YU/Z axis roller linear guide way
X/YU/Z axis Heidenhain linear scales
Coolant thru spindle 20bar
Spindle air blast
Blum TC-60 part measuring system
Blum NT-A3 tool measuring system
Spindle oil cooler
Air conditioner
Chip conveyor + bucket |
|---|
