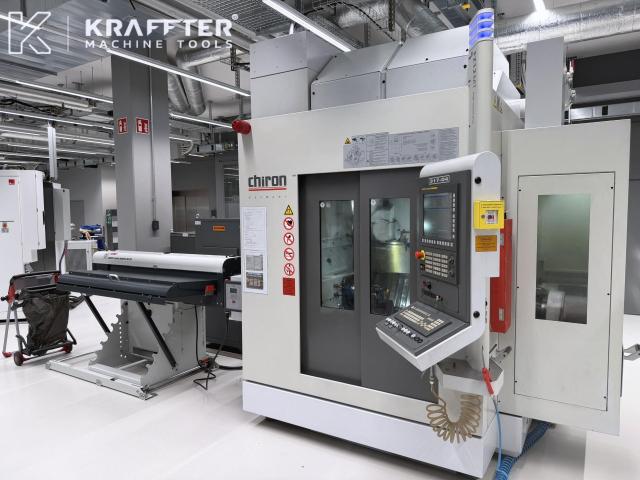

CNC Machining Center CHIRON FZ 12 MT
Access: 4
STOCK CODE | 90184 | |||
|---|---|---|---|---|
MACHINE ID | 19563 | |||
MANUFACTURER | CHIRON | |||
MODEL | FZ 12 MT | |||
YEAR | 2013 | |||
PRICE | ||||

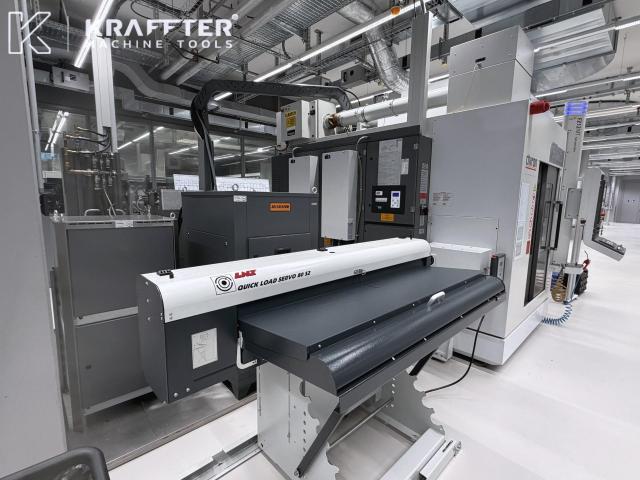

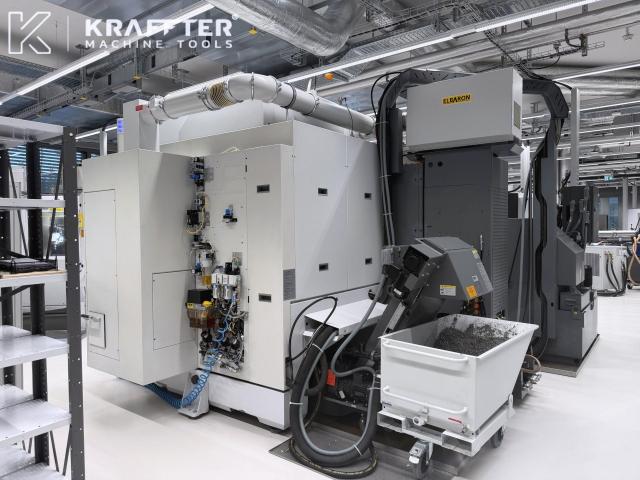

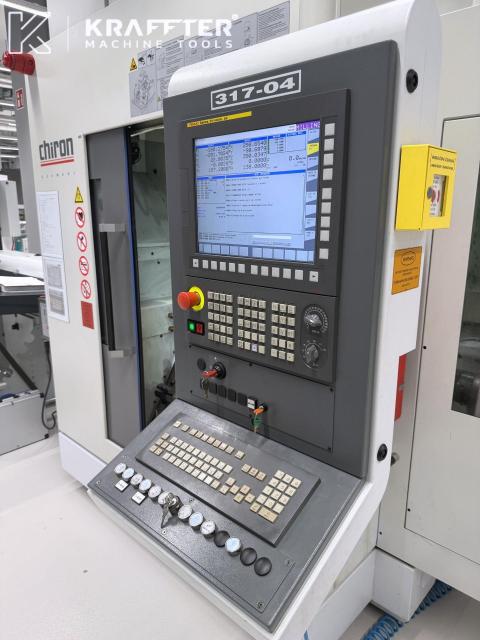

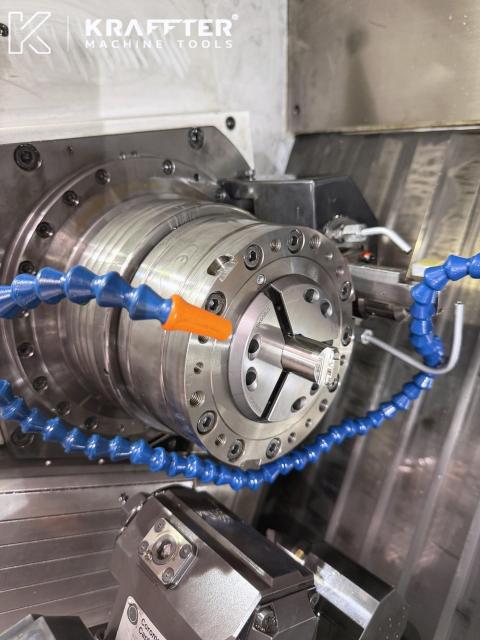

SPECIFICATION | CNC Machining Center CHIRON FZ12 MT TECHNICAL CHARACTERISTICS: Year of manufacturing: 2013 CNC control: FANUC series 31i-B5 Stroke X axis: 550 [mm] Stroke Y axis: 320 [mm] Stroke Z axis: 420 [mm] Traversing feeds X, Y and Z axes: 75000 [mm/min] X/Y/Z axis acceleration: 10/12/15 [m/s] Max. bar diameter in turning spindle: 32 [mm] Main spindle max. speed: 8000 [rpm] Max. turning spindle torque: 90 [Nm] Max. counter spindle speed: 6500 [rpm] Counter spindle torque: 14.3 [Nm] Tool changer magazin number of stations: 24 Max. tool lenght: 200 [mm] Max. weight of single tool: 4 [Kg] Max. tool diameter: 60 [mm] Number of tool stations: 12 Number of tool stations driven: 12 Max. speed driven tools: 5000 [rpm] Milling head spindle attachment: HSK-A 50 Stroke B axis: -10 [°] / +100 Max. milling spindle speed : 24000 [rpm] Max. milling spindle power: 36 [kW] Max. milling spindle torque: 29 [Nm] Tool change time: 0.9 [sec] Chip to chip time: 2.4 [sec] Rated current: 125 [A] Total power required: 85 [kVA] Supply voltage: 400 [V] INCLUDED EQUIPMENT: 1 × High Speed Plus package 1 × LNS QUICK LOAD SERVO 80 S2 bar feeder 1 × KNOLL KF 150/500 paper band filtration unit 1 × 40 bar high-pressure coolant system 1 × Oil cooling unit 1 × KNOLL 600 K-1/200 chip conveyor 1 × RENISHAW workpiece probe 1 × RENISHAW TS27R tool setter 1 × ELBARON oil mist extraction unit Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to Mikron, Hermle, DMG MORI, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas and Alzmetall, as well as CNC milling, drilling and tapping machines, and CNC grinding machines. | |||
CONDITION | Fully functional | |||
TERMS and CONDITIONS | EXW | |||
LINK URL | https://www.krafftermachinetools.com/machines/detail/286/chiron-fz-12-mt/ | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
