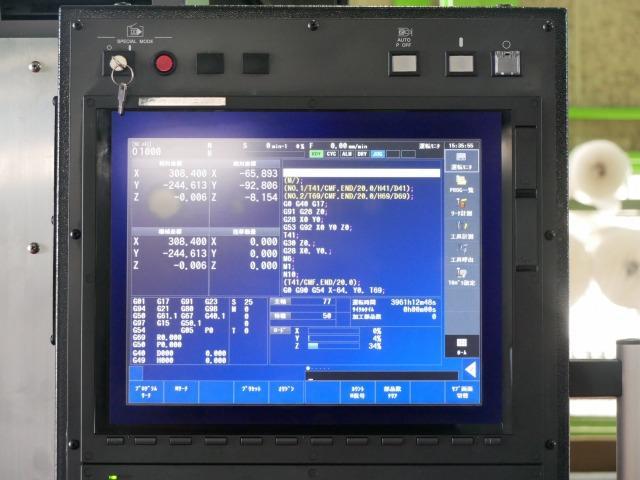

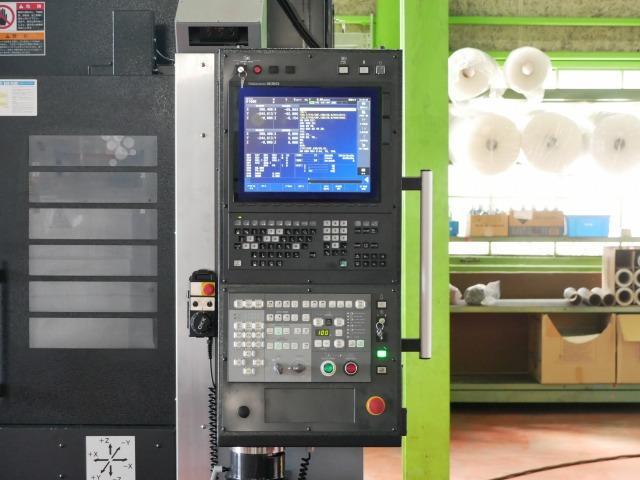

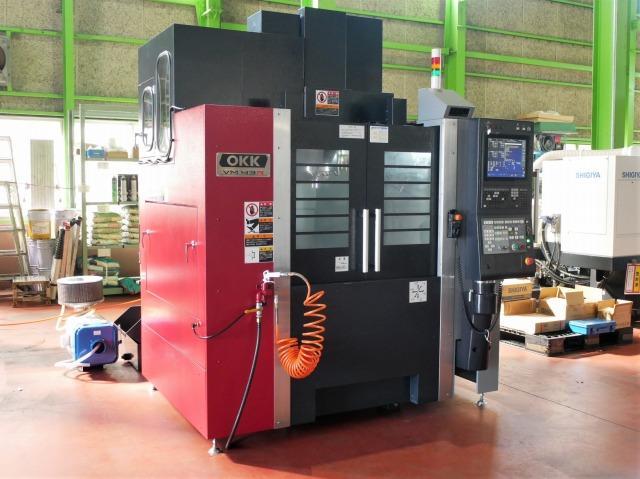

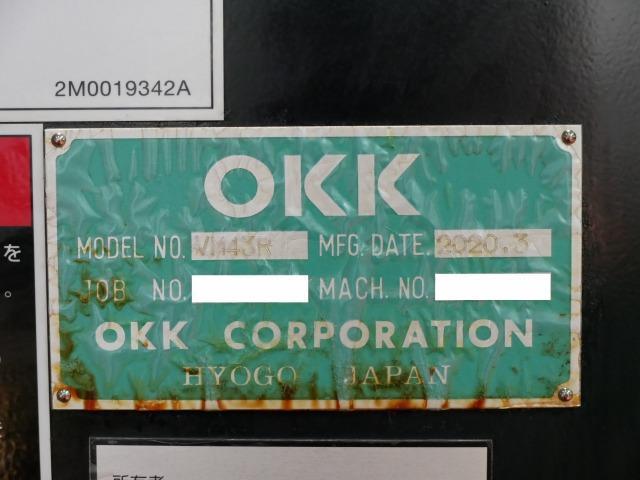

SPECIFICATION | ◆Control unit: Mitsubishi Neomatic830W
◆X-axis travel (table left/right) (mm): 630
◆Y-axis travel (saddle front/back) (mm): 430
◆Z-axis travel (spindle head up/down) (mm): 460
◆Distance from table surface to spindle face (mm): 150–610
◆Distance from column face to spindle center (mm): 445

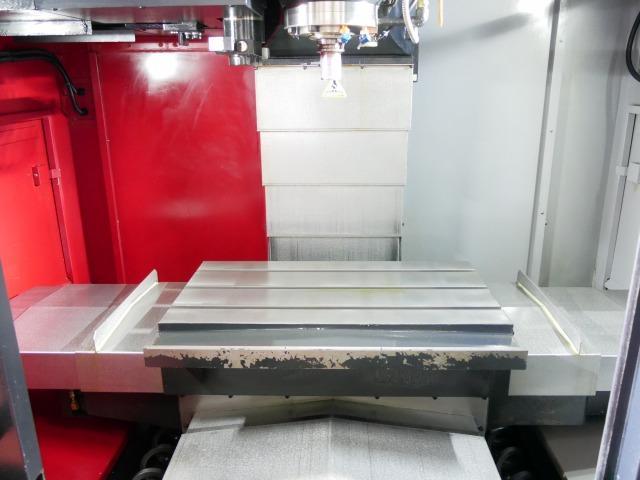

◆Work surface dimensions (X-axis * Y-axis) (mm): 800 * 420
◆Max. workpiece mass (kg): 500
◆Work surface configuration (T-slot nominal size * pitch * quantity) (mm): 18 * 125 * 3
◆Height from floor to table surface (mm): 900
◆Spindle speed (min⁻¹): 25–8,000
◆Spindle nose (taper size): 7/24 Taper No. 40
◆Bearing inner diameter (mm): Φ70
◆Rapid traverse rate (m/min): X/Y: 30, Z: 20
◆Cutting feed rate (mm/min): 1–10,000 (1–20,000)
◆ Tool shank (designation): BBT40

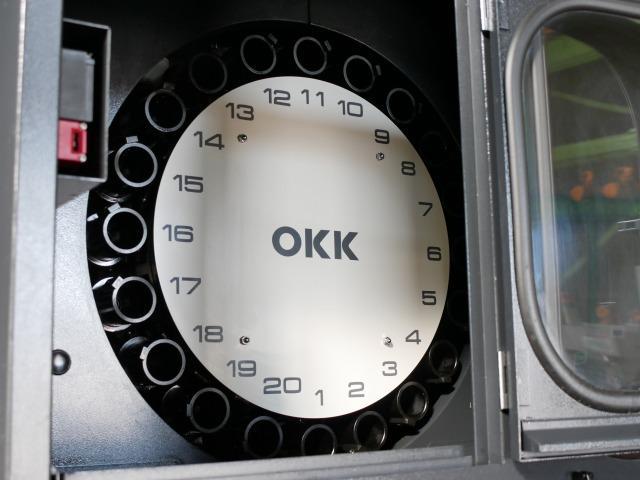

◆ Tool storage capacity: 20
◆ Max. tool diameter (with adjacent tools) (mm): Φ82
◆ Max. tool diameter (without adjacent tools) (mm): Φ110
◆ Max. tool length (from gauge line) (mm): 350
◆ Tool change time (tool-to-tool) (sec): 1.5
◆ Coolant capacity (L): 250
◆ Machine height (from floor) (mm): 2,626
◆ Operating footprint (width * depth) (mm): 1,980 * 2,885
◆ Including maintenance area (width * depth) (mm): 2,980 * 3,735
◆ Machine mass (kg): 5,500

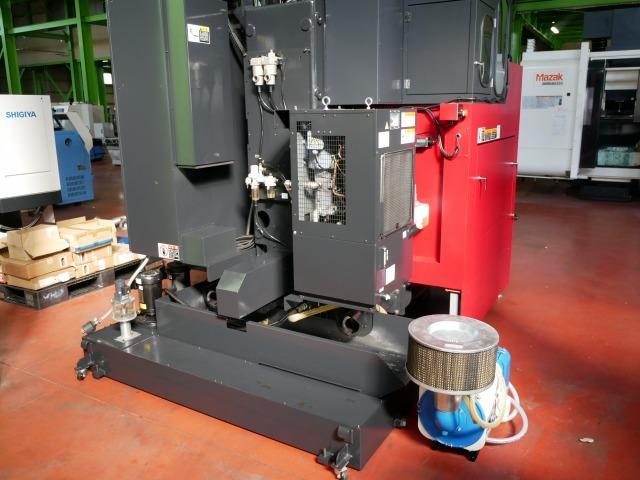

◆ Rear-discharge coil conveyor (with reverse function): 1 unit each on left and right
◆ HQ Control (high-precision control function)
◆ Soft Scale III
✤ In the event of any discrepancy between the specifications and the actual machine, the actual machine takes precedence. |
|---|
