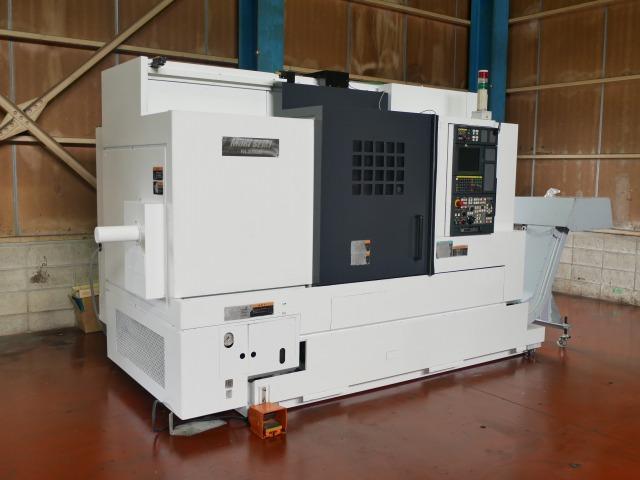

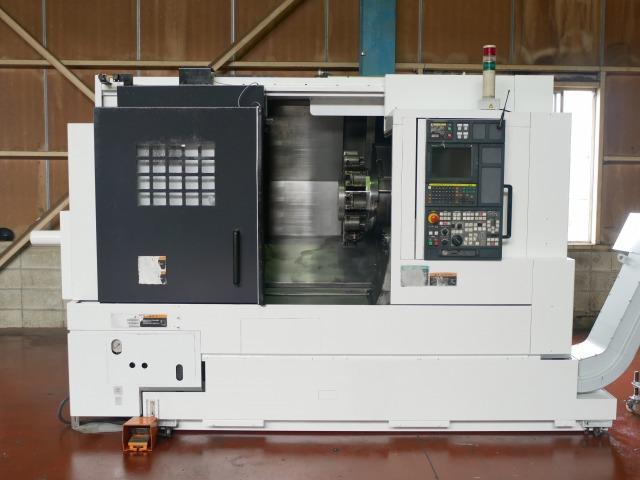

SPECIFICATION | ◆Swing over bed (mm): 923.8 (579.8 due to interference with front cover)
◆Swing over cross slide (mm): 755
◆Maximum machining diameter (mm): 356
◆Standard machining diameter (mm): 275
◆Maximum machining length (mm): 705
◆Bar stock working capacity (mm): 80
◆X-axis travel (mm): 260
◆Z-axis travel (mm): 795

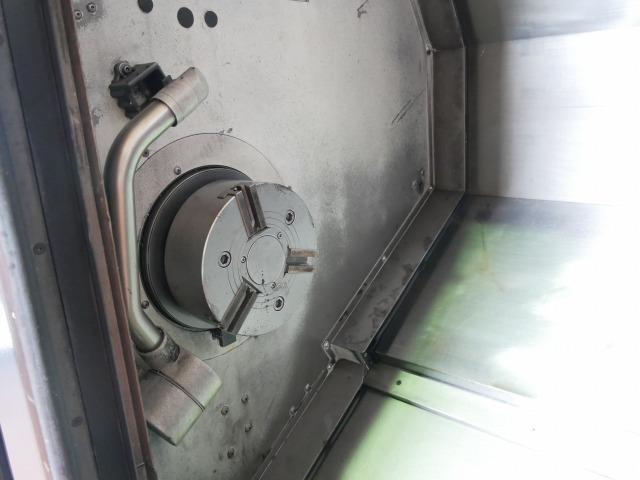

◆Maximum spindle speed (min-1): 4,000
◆Spindle end shape: JIS A₂-8
◆Spindle through-hole diameter (mm): 91

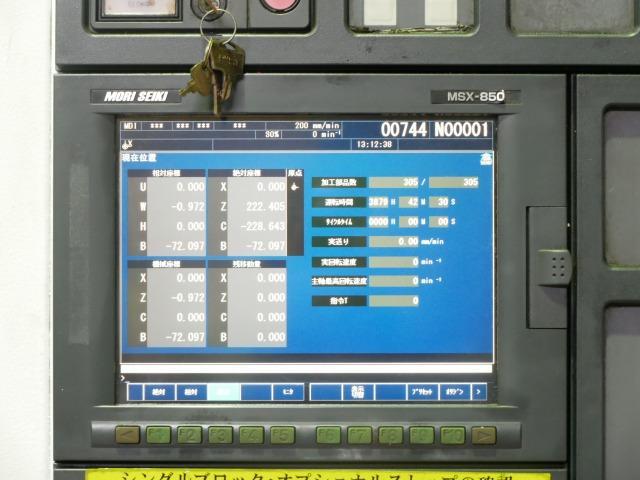

◆Minimum spindle indexing angle: 0.001°
◆Spindle bearing inner diameter (mm): 140

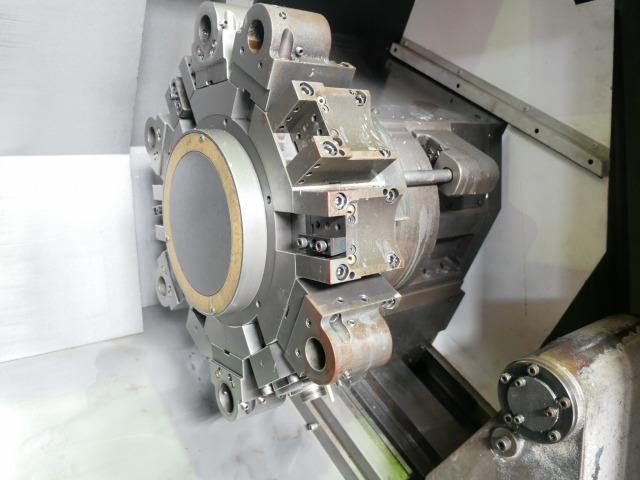

◆Number of tools to be mounted (pieces): 12 (10)
◆Shank height of corner cutting tool (mm): 25
◆Tool shank diameter of rotary tool (mm): Φ26
◆Indexing time of tool post (seconds): 0.25
◆Maximum rotational speed of rotary tool spindle (min-1): 6,000
◆Tailstock travel (mm): 734
◆Tailstock diameter (mm): 80
◆Type of tailstock tapered hole: Rotary center (MT5) [Built-in center (MT3)]

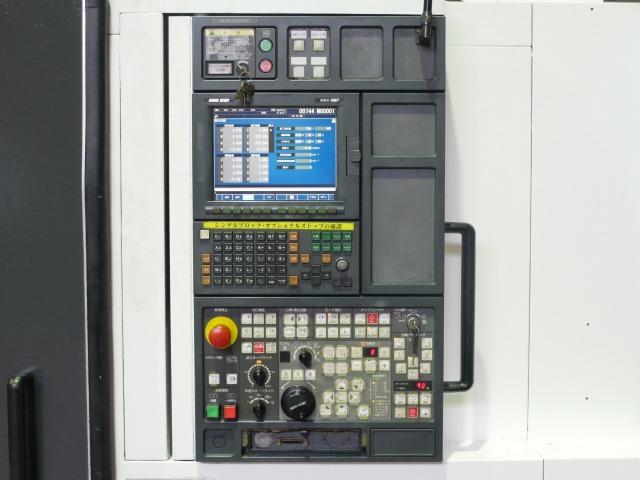

◆For spindle Motor (25% ED, 50% ED/continuous) (kW): 18.5/15 (26/22)
◆Motor for rotary tool spindle (3 min/5 min/continuous) (kW): 5.5/5.5/3.7
◆Motor for feed axis (kW): X, Z: 3.5

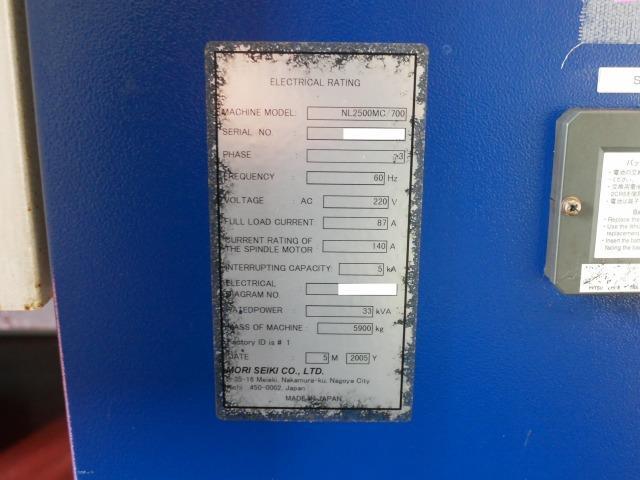

◆Power supply (kVA): 31.8 (40.0)
◆Coolant tank capacity (L): 265
◆Machine height (from floor) (mm): 2,120
◆Required floor space (excluding conveyor) (mm): 3,100 * 1,923
◆Machine weight (kg): 5,900
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence. |
|---|
