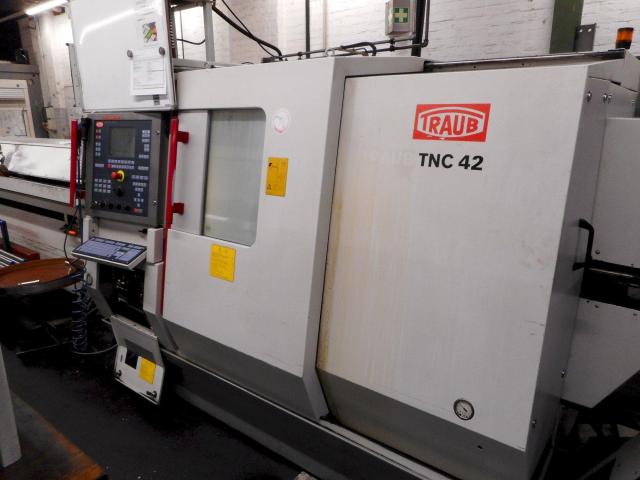

CNC Lathe TRAUB TNC 42/65
Access: 4
STOCK CODE | 90106 | |||
|---|---|---|---|---|
MACHINE ID | 19220 | |||
MANUFACTURER | TRAUB | |||
MODEL | TNC 42/65 | |||
YEAR | 2009 | |||
PRICE | ||||

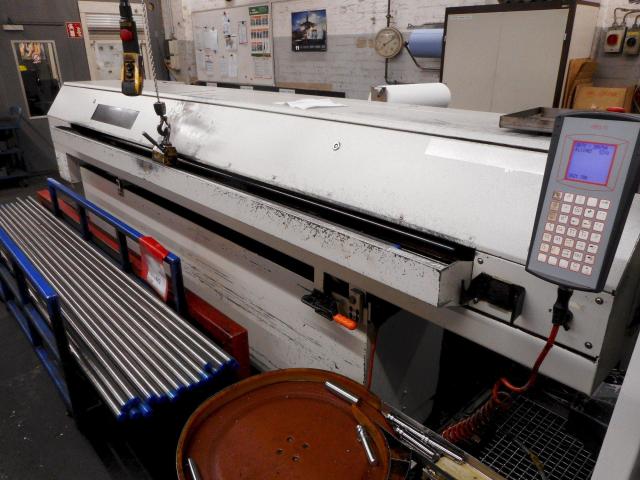

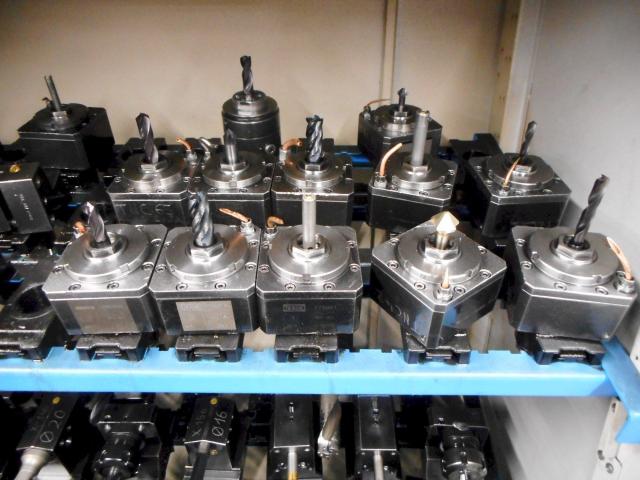

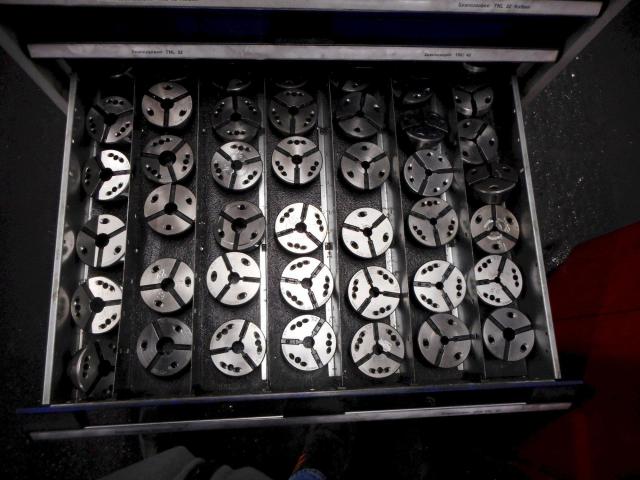

SPECIFICATION | CNC Lathe TRAUB TNC 42 65 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2009 CNC control: TRAUB TX8i Number of axes: 8 Stroke Y axis: +/- 35 [mm] Stroke Z1 axis: 450 [mm] Stroke X1 axis: 140 [mm] Stroke Z2 axis: 520 [mm] Stroke X2 axis: 140 [mm] Stroke E axis: 450 [mm] Spindle throughbore: 42 [mm] Max. spindle speed: 5600 [rpm] Increment C-axis: 0.001 [°] Spindle power: 18.5 [kW] Counter spindle throughbore: 42 [mm] Max. counter spindle speed: 5600 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 11 [kW] Type of tool holders: VDI 30 Number of tool stations - Turret 1: 14 Number of tool stations driven - Turret 1: 14 Max. speed driven tools - Turret 1: 4000 [rpm] Number of tool stations - Turret 2: 14 Number of tool stations driven - Turret 2: 14 Max. speed driven tools - Turret 2: 4000 [rpm] Total power required: 107 [kVA] Rated current: 85 [A] Supply voltage: 400 [V] Weight: 5600 [Kg] INCLUDED EQUIPMENT: x1 Set of collets x1 Set of tool holders x1 Chip conveyor x1 IRCO PROFIMAT ECO 42.6 bar feeder x1 KNOLL coolant system Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine tool similar to turning and milling centers, machining centers and milling machines, including brands such as Schaublin, Index, Mori Seiki, Traub, Tsugami, Star, Tornos, Biglia, Nakamura, Miyano, DMG and Mazak. CNC lathe, CNC turning center, CNC turning machine, machining center, CNC milling machine, CNC machining center, Fanuc, iTNC, TNC, Heidenhain, Mori Seiki, Mazak, Hurco, Nakamura, Takamura, Hardinge. | |||
CONDITION | Unexamined | |||
WEIGHT | 5600 [Kg] | |||
TERMS and CONDITIONS | EXW | |||
LOCATION | Auvergne-Rhône-Alpes | |||
LOCATION DETAIL | ||||
SELLER COMPANY | Kraffter Machine Tools | |||
